EF20 High Frequency Coil Bobbin Pin 6+8

Lead free bobbin EF20. 6+8 pins transformer EF20 bobbin.  Bobbin Size=24.77mmX20.8mmX15.5mm. Pin pitch=2.6mm. Parallel Distance=20.0mm. EF20 horizontal coil bobbin. EF20 transformer DIP bobbin. PA66 material transformer bobbin.



Electronic transformer bobbin supplier MCT, we have been doing it for over 10 years, we manufacture all kinds transformers, inductors and filters. Custom design also available.


Quick Details

Part No: MCT-EF2040

Brand Name: MCT

Material: PA66

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EF20 High Frequency Coil Bobbin Pin 6+8

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

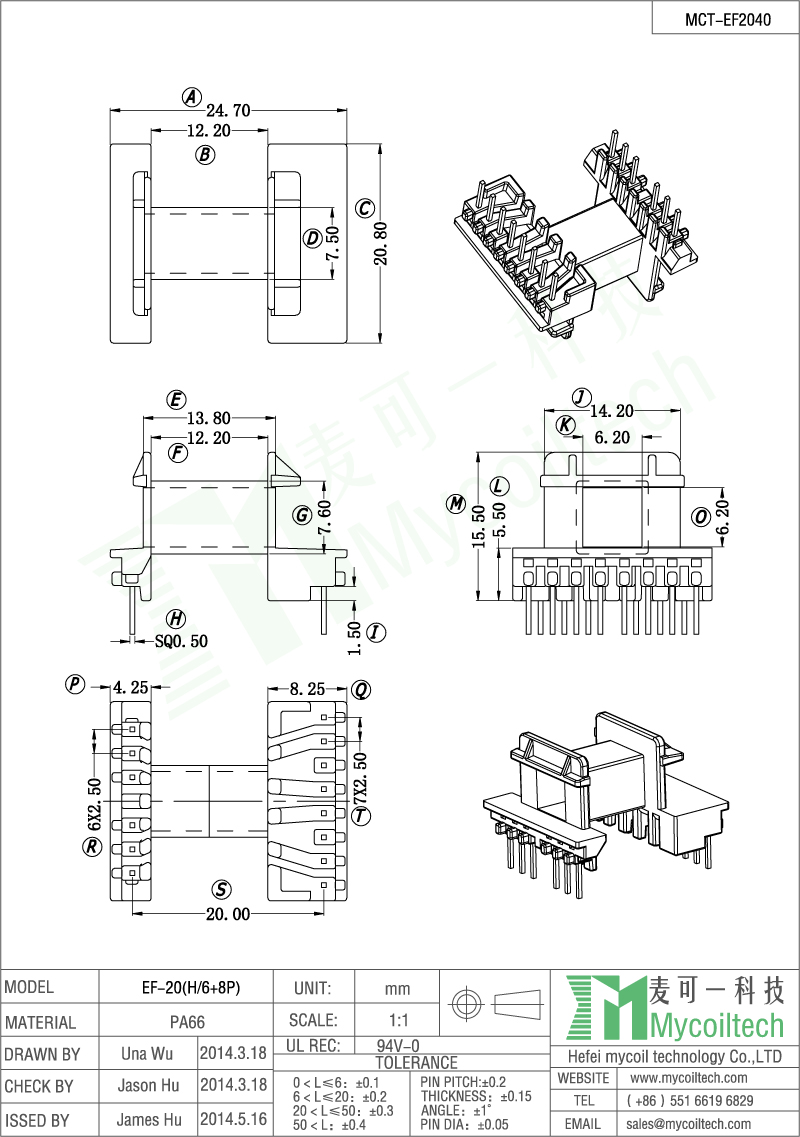

Product Specification

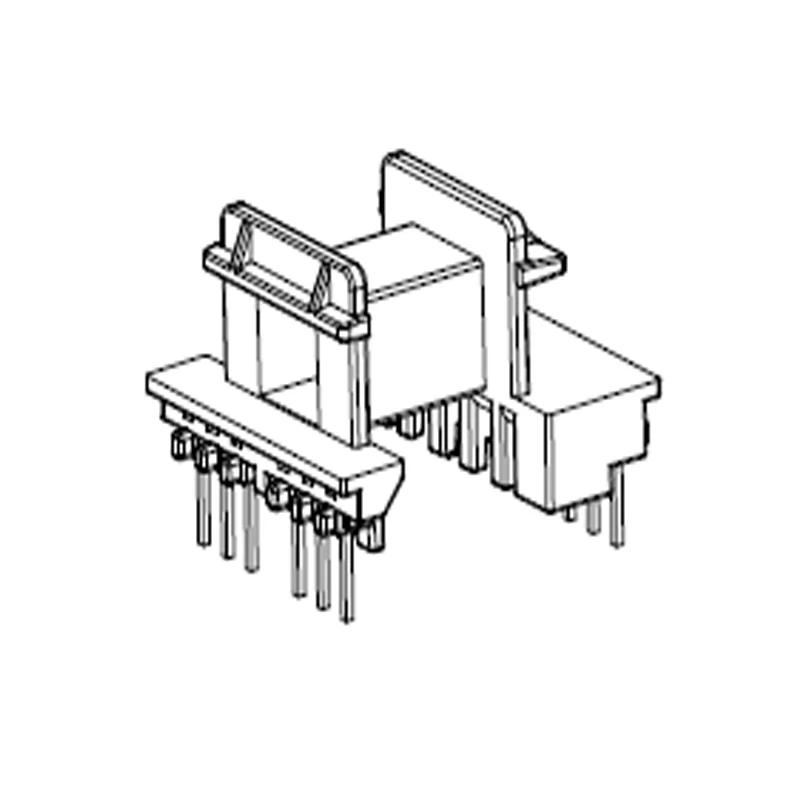

6+8 pin horizontal bobbin
