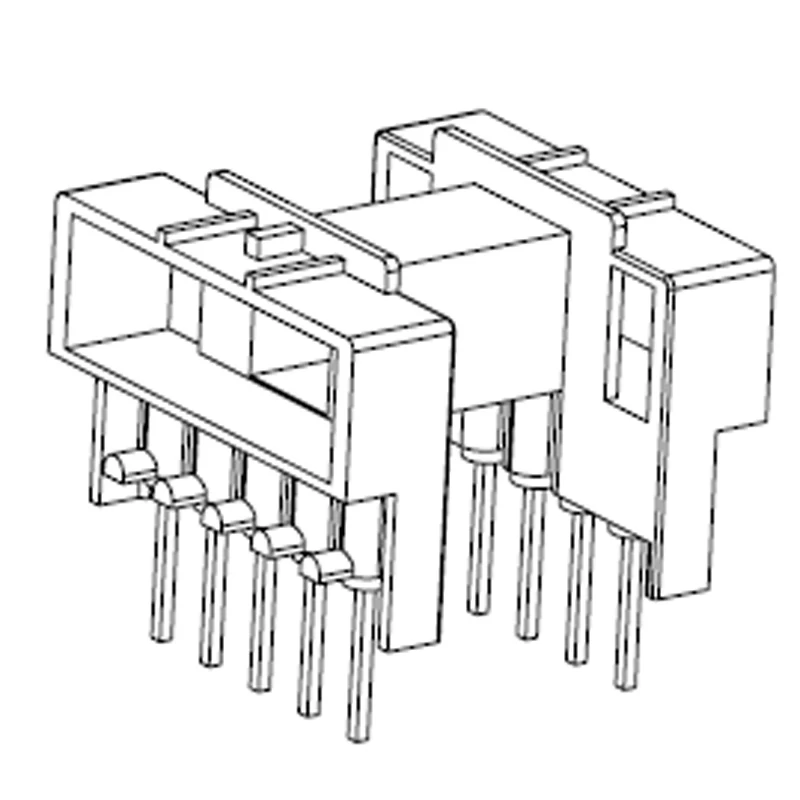

EF20 High Frequency Transformer Horizontal Coil Bobbin

Horizontal bobbin 5+5 pins EF20. EF20 single slot transformer bobbin. Bobbin Size=23.6mmX23mmX17.2mm. Parallel Distance=15mm. Pin pitch=3.8mm. PBT material EF20 bobbin. DIP transformer bobbin.



We are professional transformer bobbin factory, we produce various electronic encapsulated transformer bobbins, inductor bobbins, high frequency bobbins, etc. Our engineers can design to meet your requirements.


Quick Details

Part No: MCT-EF2009

Brand Name: MCT

Material: PBT

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EF20 High Frequency Transformer Horizontal Coil Bobbin

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu



Product Specification

5+5 pin EF25 transformer bobbin design
