EF20 Horizontal 3+3 Pins Transformer Bobbin With Four Slots

Four slots bobbin EF20 with 3+3 pins. EF20 horizontal power transformer bobbin. Bobbin Size=20mmX19mmX20.55mm. Parallel Distance=16mm. Pin pitch=5mm. PET and nylon material transformer bobbin. DIP transformer bobbin.



Competitive price EF20 horizontal bobbin with four slots, high quality and fast delivery time, we accept OEM service and small order, welcome for customized products.


Quick Details

Part No: MCT-EF2015

Brand Name: MCT

Material: PET, Nylon

Color: White, Black, Red

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EF20 Horizontal 3+3 Pins Transformer Bobbin With Four Slots

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu



Product Specification

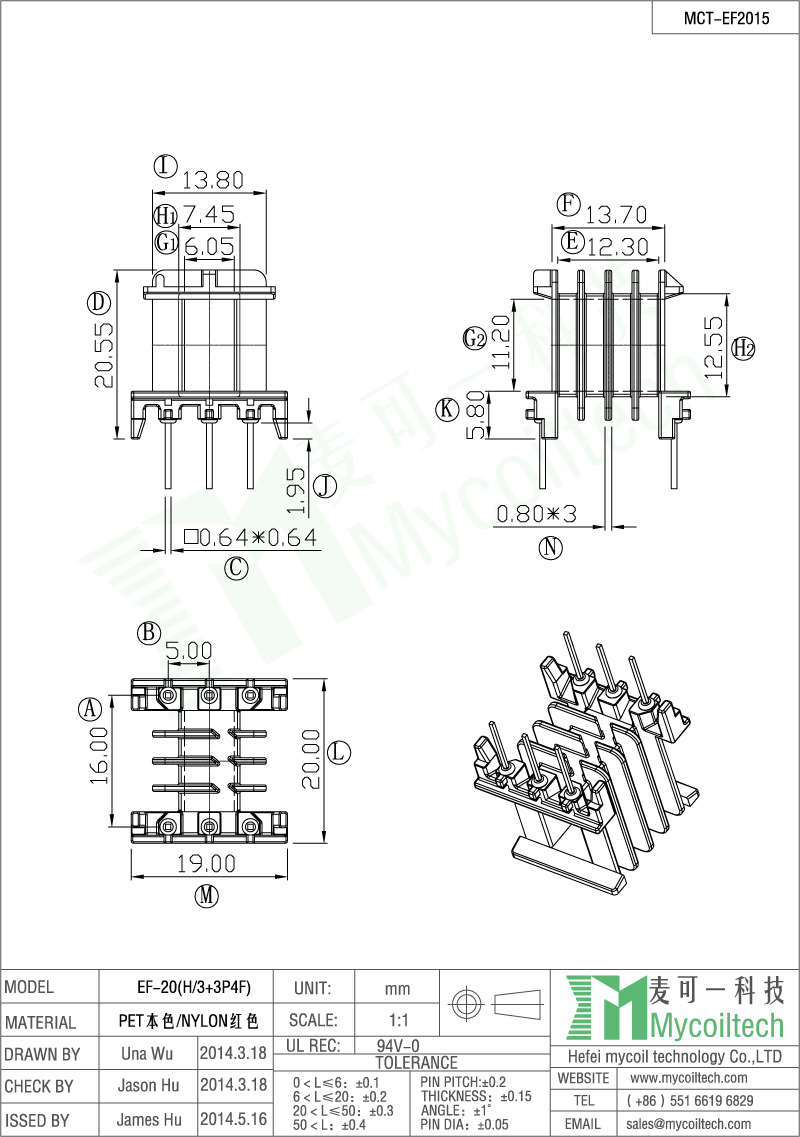

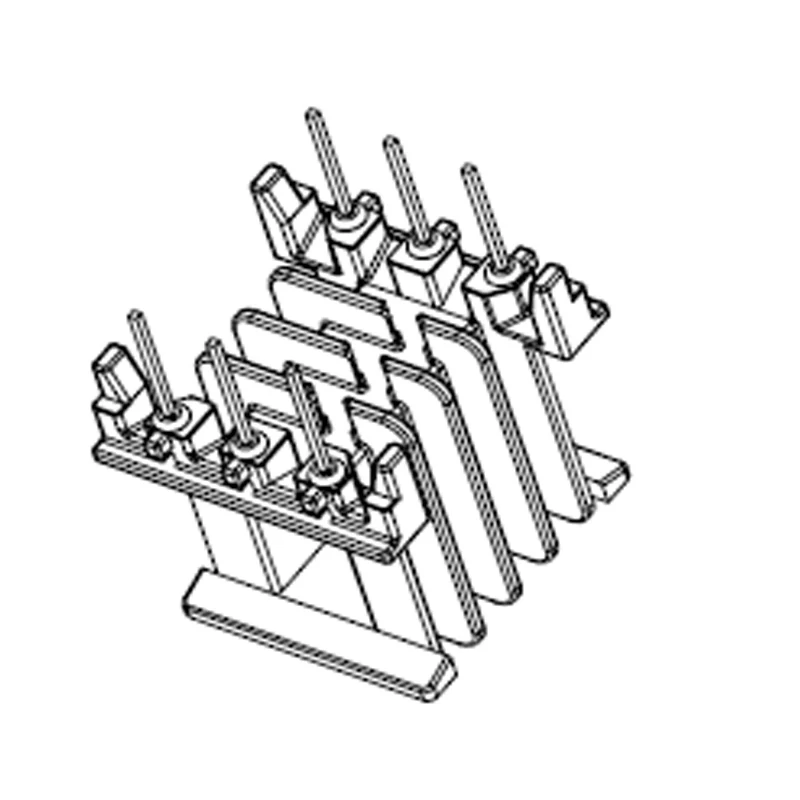

3+3 pins EF20 bobbin with four slots
