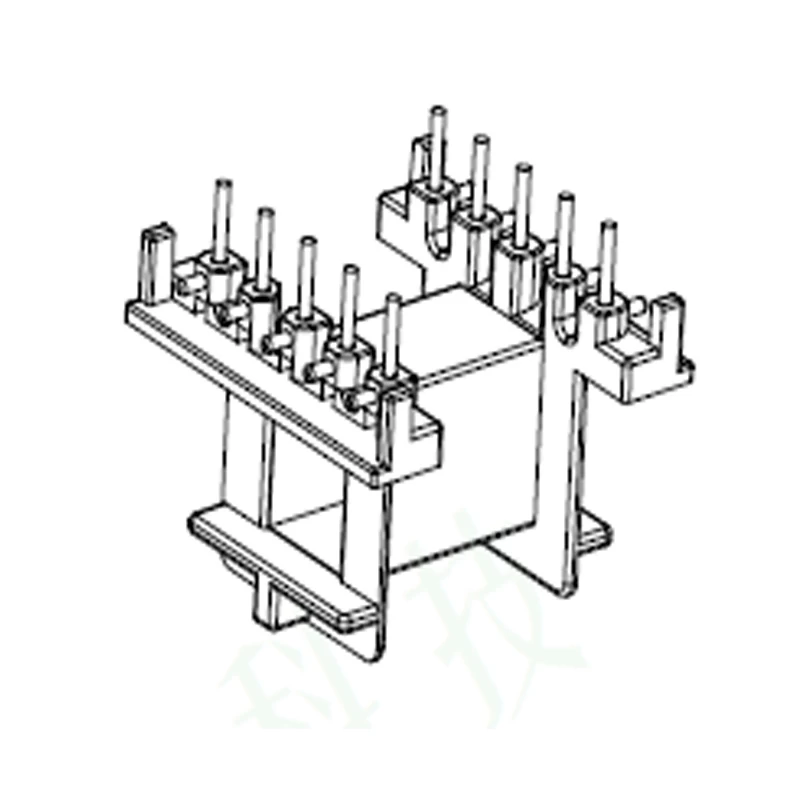

EF20 Soft Ferrite Core Transformer Bobbin Pin 5+5 Horizontal

EF20 transformer horizontal bobbin. EF20 5+5 pin coil bobbin. Bobbin Size=22.3mmX22.3mmX18.5mm. Pin pitch=3.8mm. Parallel Distance=15.0mm. PA66 material transformer bobbin. DIP transformer bobbin.



Competitive price EF20 horizontal bobbin 10 pin, good price and fast delivery time, we can provide samples for the testing. OEM service also available.


Quick Details

Part No: MCT-EF2028

Brand Name: MCT

Material: PA66

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EF20 Soft Ferrite Core Transformer Bobbin Pin 5+5 Horizontal

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

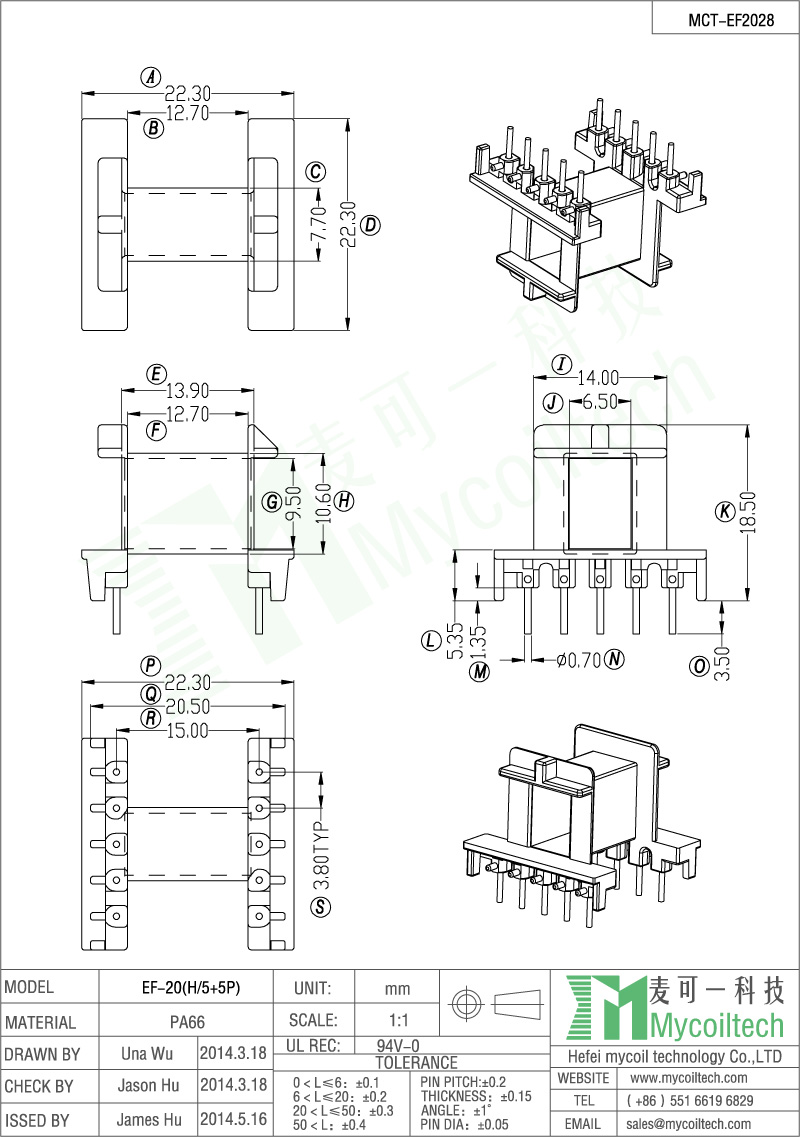

Product Specification

5+5 pin horizontal bobbin EF20
