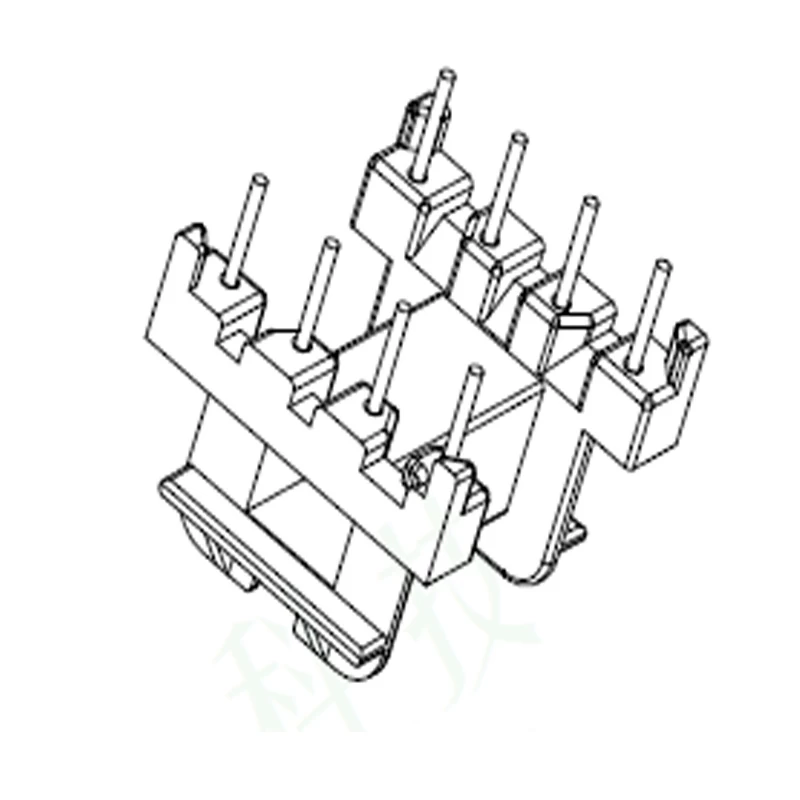

EF20 Switching Power Transformer Horizontal Bobbin 4+4 Pin

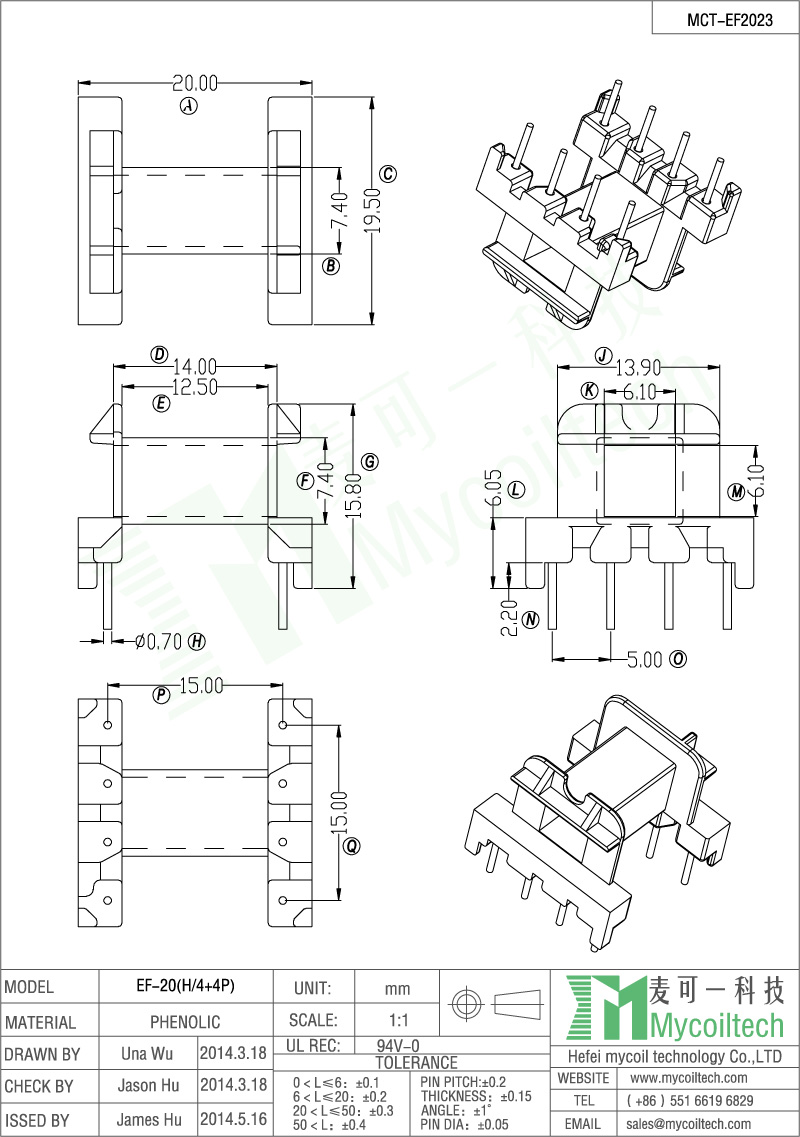

Customized EF20 transformer 4+4 pin. Horizontal EF20 coil bobbin. Bobbin Size=20mmX19.5mmX17.5mm. Parallel Distance=15mm. Pin pitch=5mm. Phenolic material transformer bobbin. DIP transformer bobbin.



High reliability and good quality EF20 pin 4+4 coil former from MCT. We have shortly delivery time, free samples can be provided for the test, if you are interested in our part, welcome to contact to us.


Quick Details

Part No: MCT-EF2023

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EF20 Switching Power Transformer Horizontal Bobbin 4+4 Pin

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu



Product Specification

Winding bobbin EF20 4+4 pin
