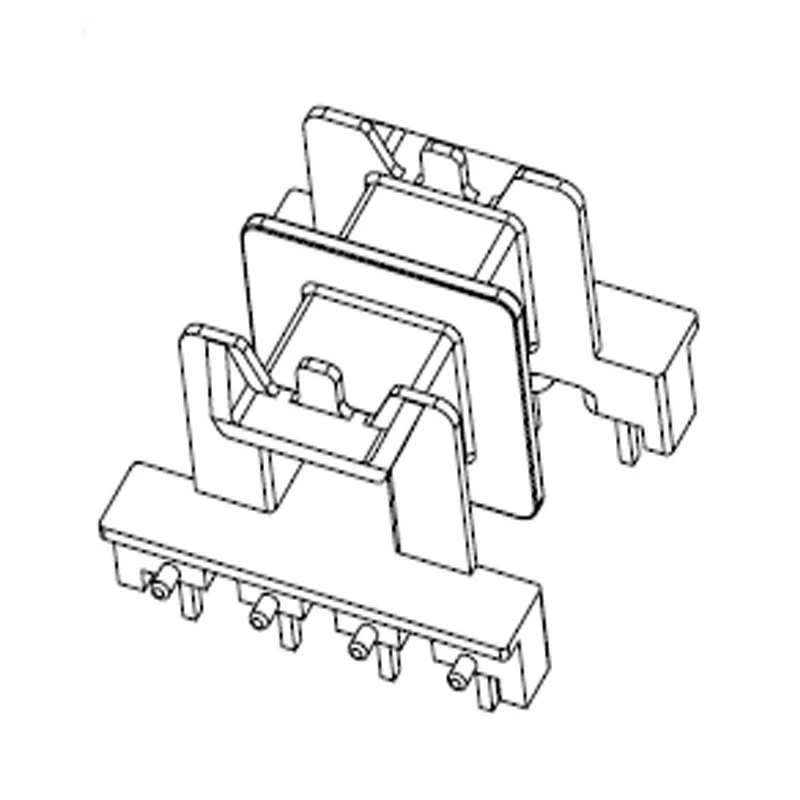

EF20 Two Slots Horizontal 4+4 Pins Transformer Bobbin

EF20 double slots transformer bobbin. 4+4 pins EF20 horizontal transformer bobbin. Bobbin Size=20.7mmX20.6mmX13.95mm. Parallel Distance=15mm. Pin pitch=5mm. Nylon and PET material bobbin. DIP transformer bobbin.



Hot selling single slot/multi section EF20 bobbins, good price and fast delivery time, we can provide free samples for your testing.


Quick Details

Part No: MCT-EF2001-1

Brand Name: MCT

Material: PET, Nylon

Color: Black, White, Red

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EF20 Two Slots Horizontal 4+4 Pins Transformer Bobbin

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

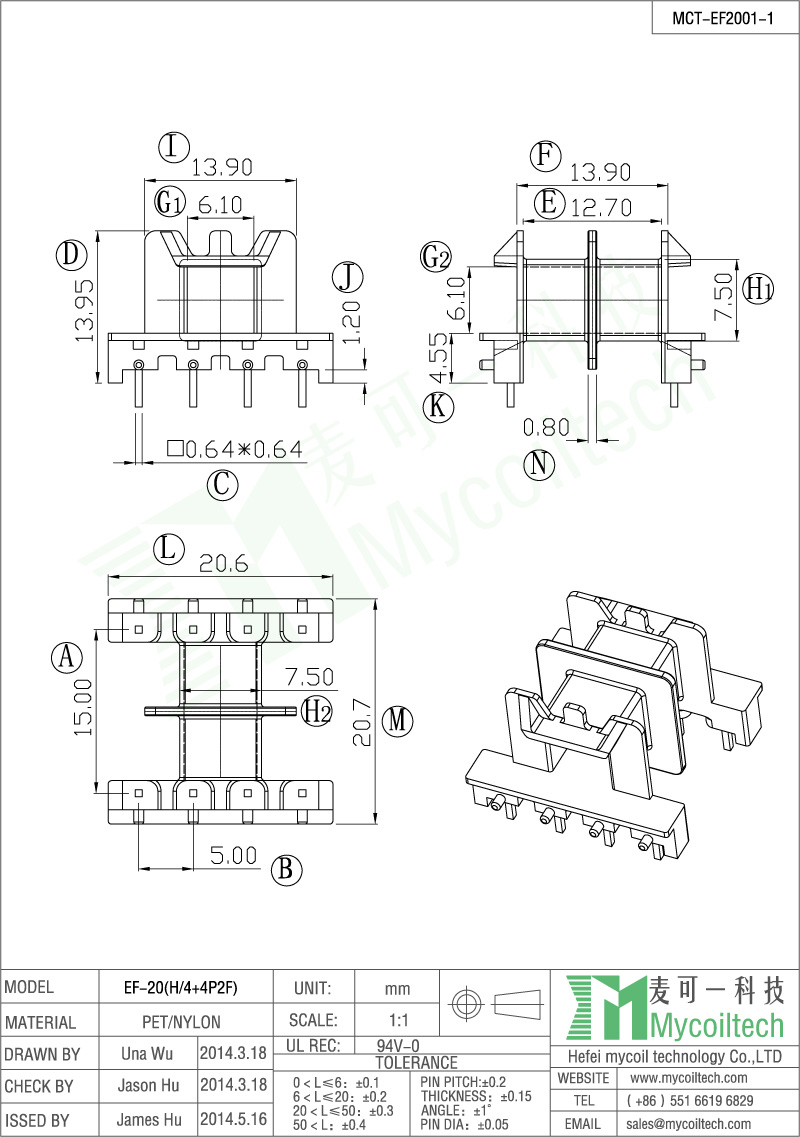

Product Specification

Double slots EF20 coil former
