EF20 Vertical Bobbin For Soft Ferrite Core

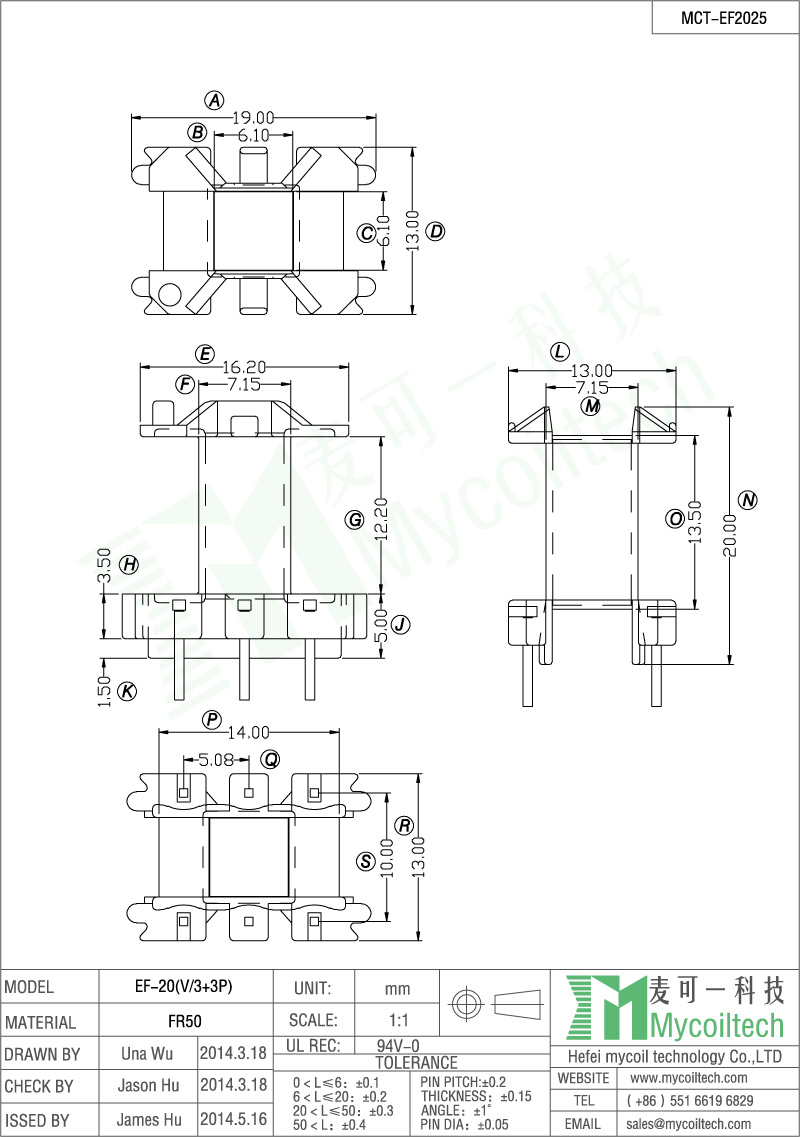

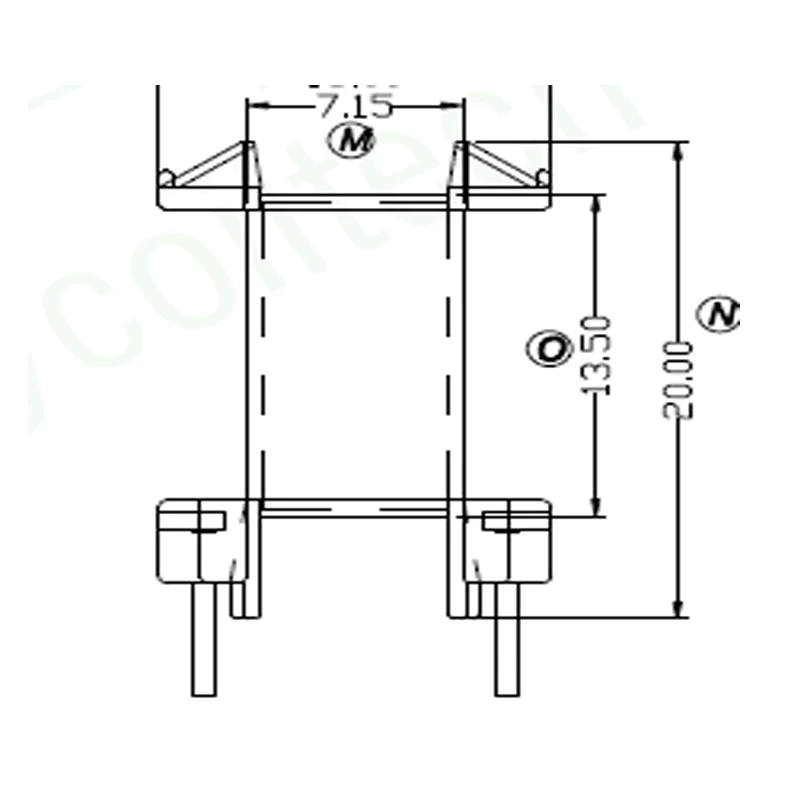

Power charge transformer EF20. 3+3 pins vertical EF20 bobbin. Bobbin Size=19.0mmX13.0mmX20.0mm. Pin pitch=5.08mm. Parallel Distance=11.0mm. FR50 material EF20 bobbin. DIP transformer bobbin.



Customized EFF20 high frequency transformer, competitive price vertical EF20 winding bobbin. We are professional transformer bobbin factory, we can provide free samples for your testing.


Quick Details

Part No: MCT-EF2025

Brand Name: MCT

Material: FR50

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EF20 Vertical Bobbin For Soft Ferrite Core

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu



Product Specification

Power supply transformer EF20 vertical bobbin
