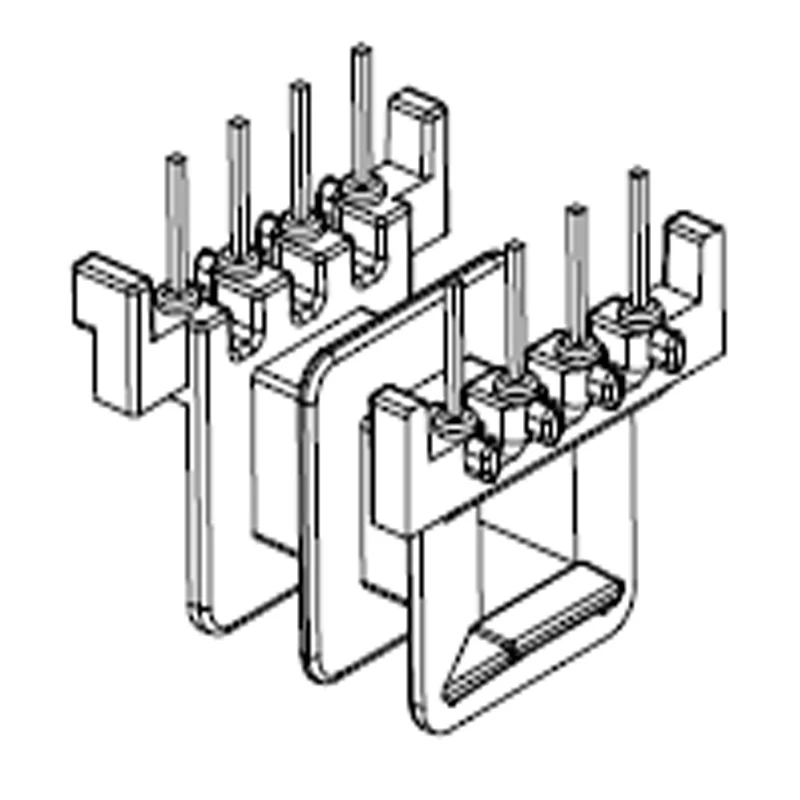

EF25 4+4 Pin Horizontal Transformer Bobbin Double Slots

EF25 horizontal two slots bobbin. 4+4 pins EF25 transformer bobbin. Bobbin Size=25.7mmX25.6mmX20.5mm. Parallel Distance=20mm. Pin pitch=5mm. Phenolic material bobbin. DIP transformer bobbin.



We are a factory specializing in the manufacture and export of high frequency transformers, coil inductors, EMI filters. We have attained ISO9001 certification. If you are interested in our products, welcome for contact us.


Quick Details

Part No: MCT-EF2534

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EF25 4+4 Pin Horizontal Transformer Bobbin Double Slots

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

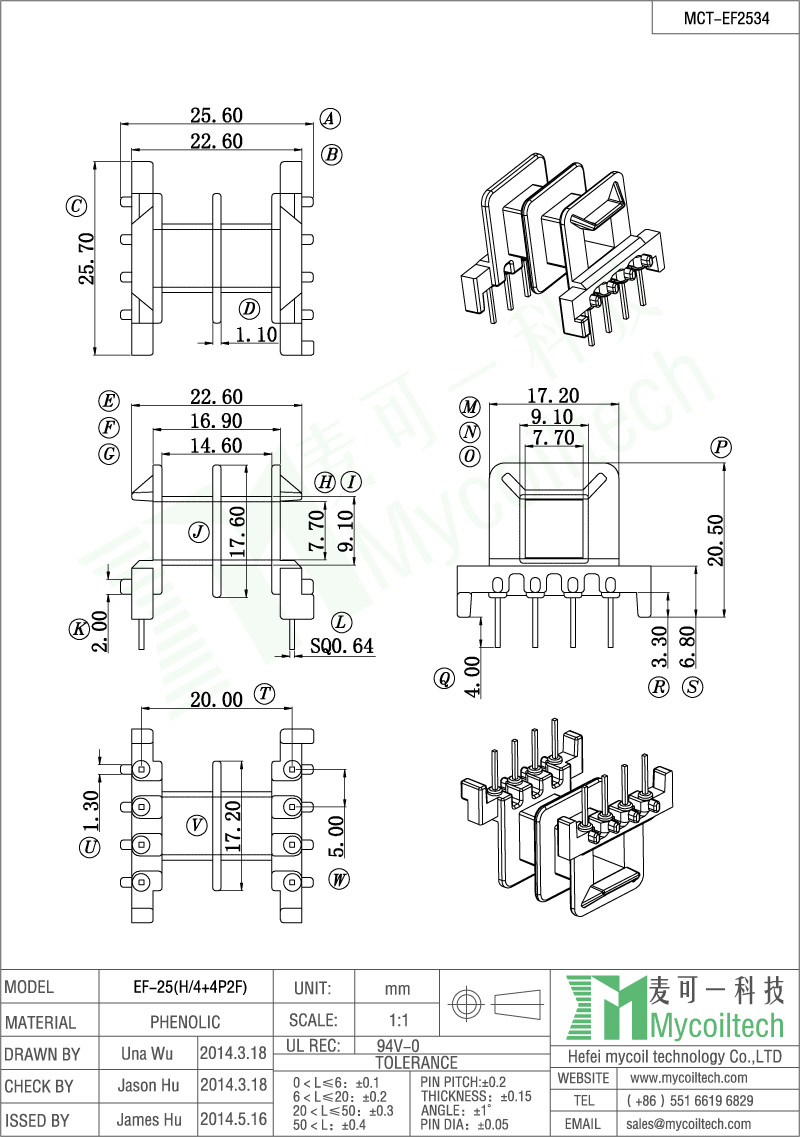

Product Specification

Two slots EF25 coil former
