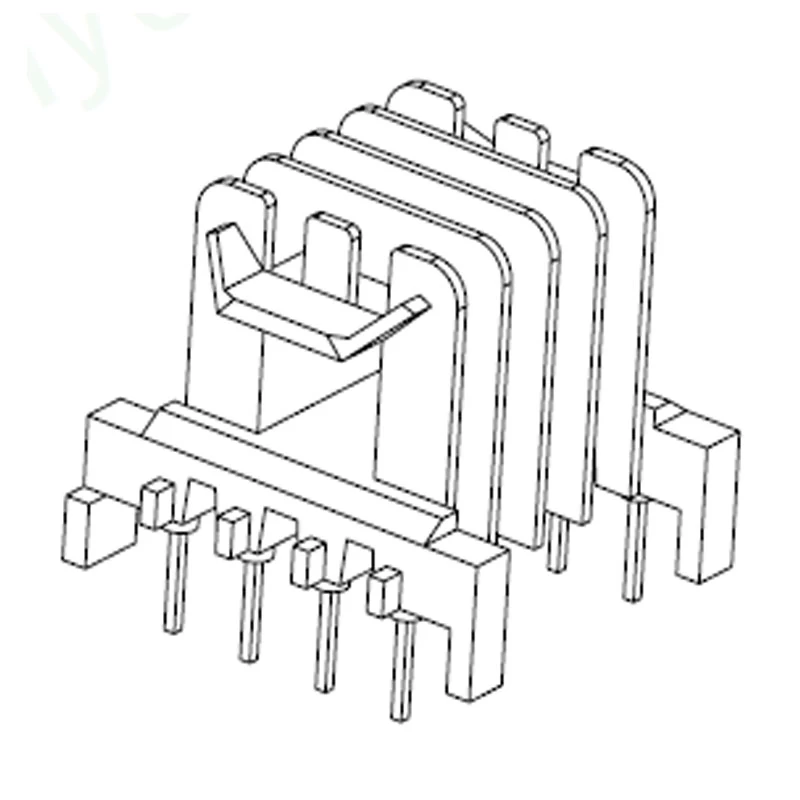

EF25 Four Slots​ Horizontal Transformer Bobbin With 4+4 Pins

4+4 Pins EF25 coil former. Multi section horizontal EF25 transformer bobbin. Parallel Distance=20mm. Pin pitch=5mm. Bobbin Size=25.7mmX25.6mmX20.5mm. DIP transformer bobbin.



Popular four slots EF25 transformer bobbin, fast delivery and free samples, if you have any requests, welcome to contact us.


Quick Details

Part No: MCT-EF2510

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EF25 Four Slots Horizontal Transformer Bobbin With 4+4 Pins

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

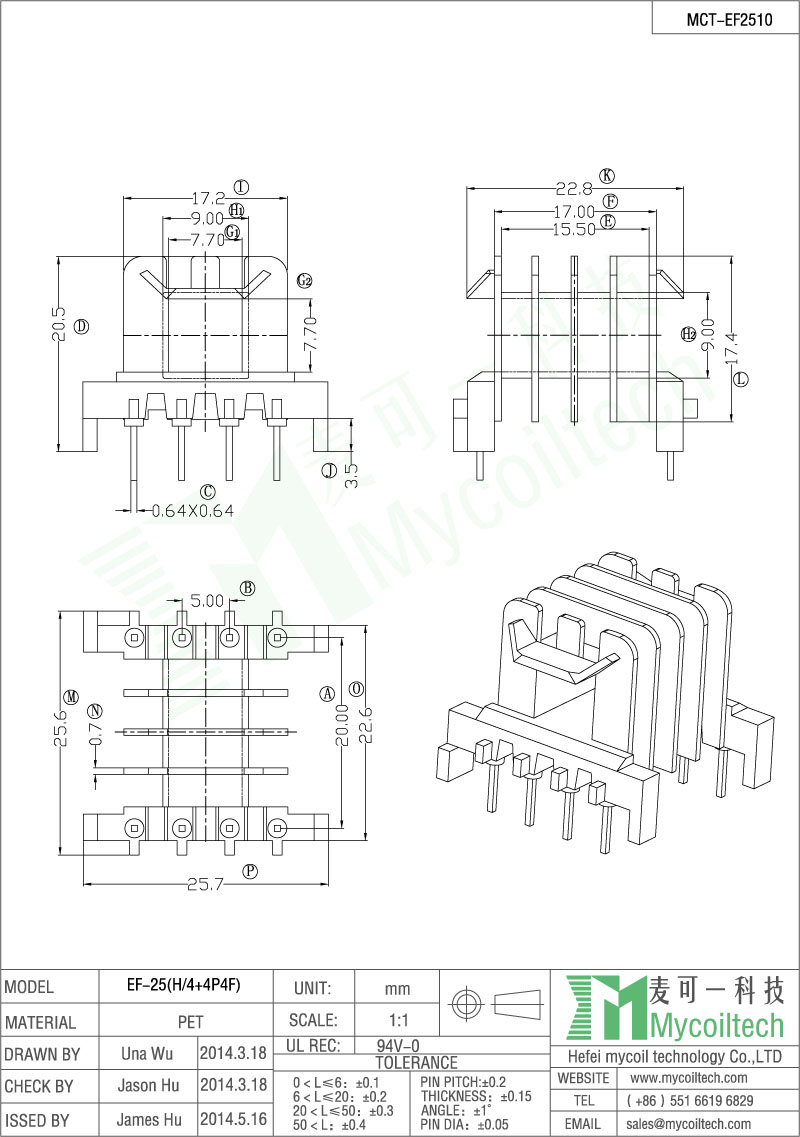

Product Specification

Four slots EF25 bobbin wholesale
