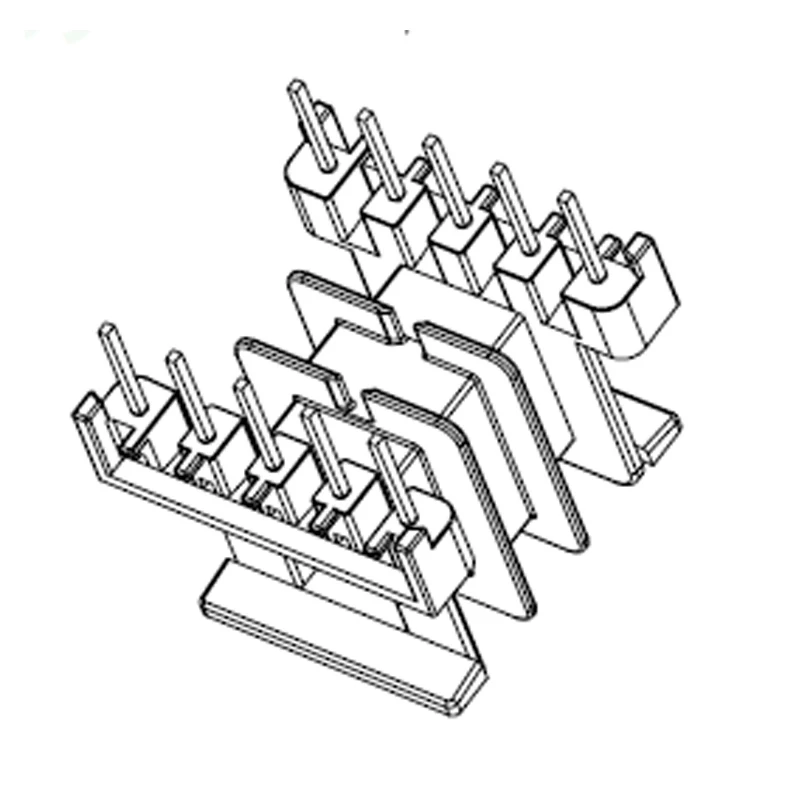

EF25 High Frequency Horizontal Bobbin 5+5 Pin With Three Slots

Three slots EF25 horizontal bobbin. 5+5 pins EF25 transformer bobbin. Bobbin Size=25.8mmX25.2mmX18.9mm. Parallel Distance=20mm. Pin pitch=5mm. Nylon and PET material bobbin. DIP transformer bobbin.



2018 popular EF25 three slots horizontal transformer bobbin, factory direct selling, low price and high quality, we can provide samples for the testing.


Quick Details

Part No: MCT-EF2520

Brand Name: MCT

Material: PET, Nylon

Color: Black, White, Red

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EF25 High Frequency Horizontal Bobbin 5+5 Pin With Three Slots

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

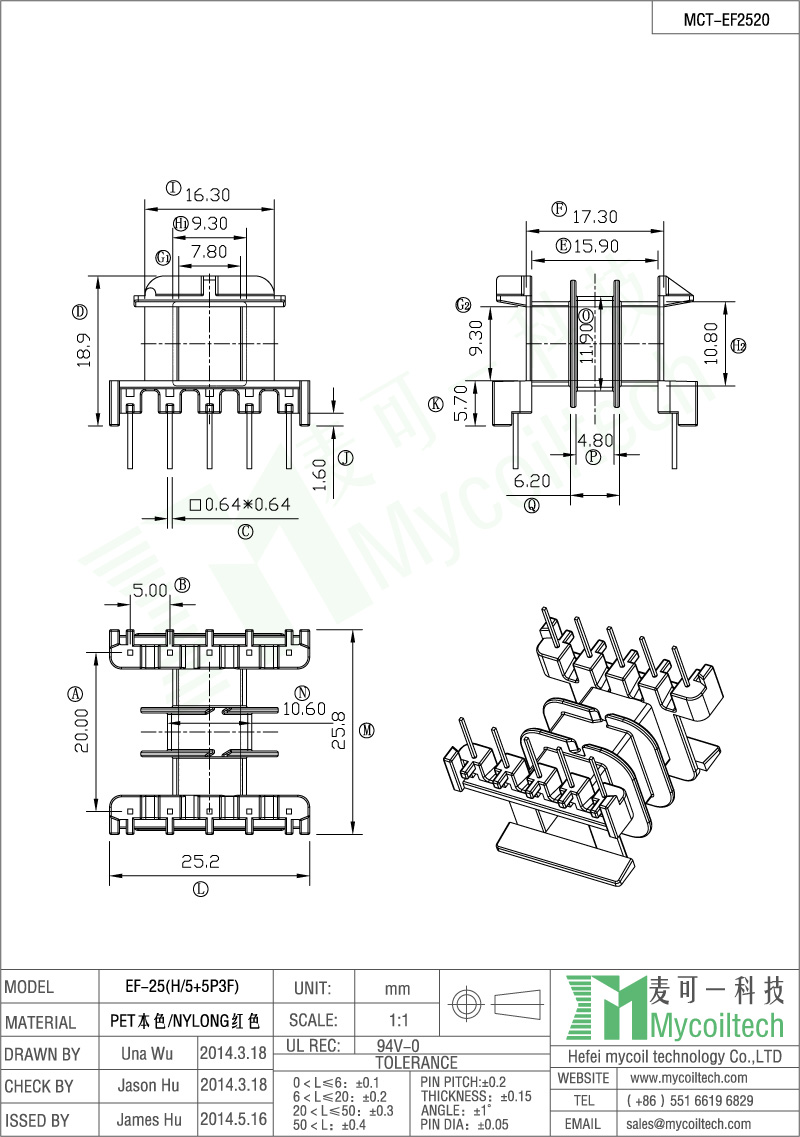

Product Specification

Three slots transformer EF25 bobbin
