EF25 Horizontal 2+3 Pin Bobbin Four Grooves

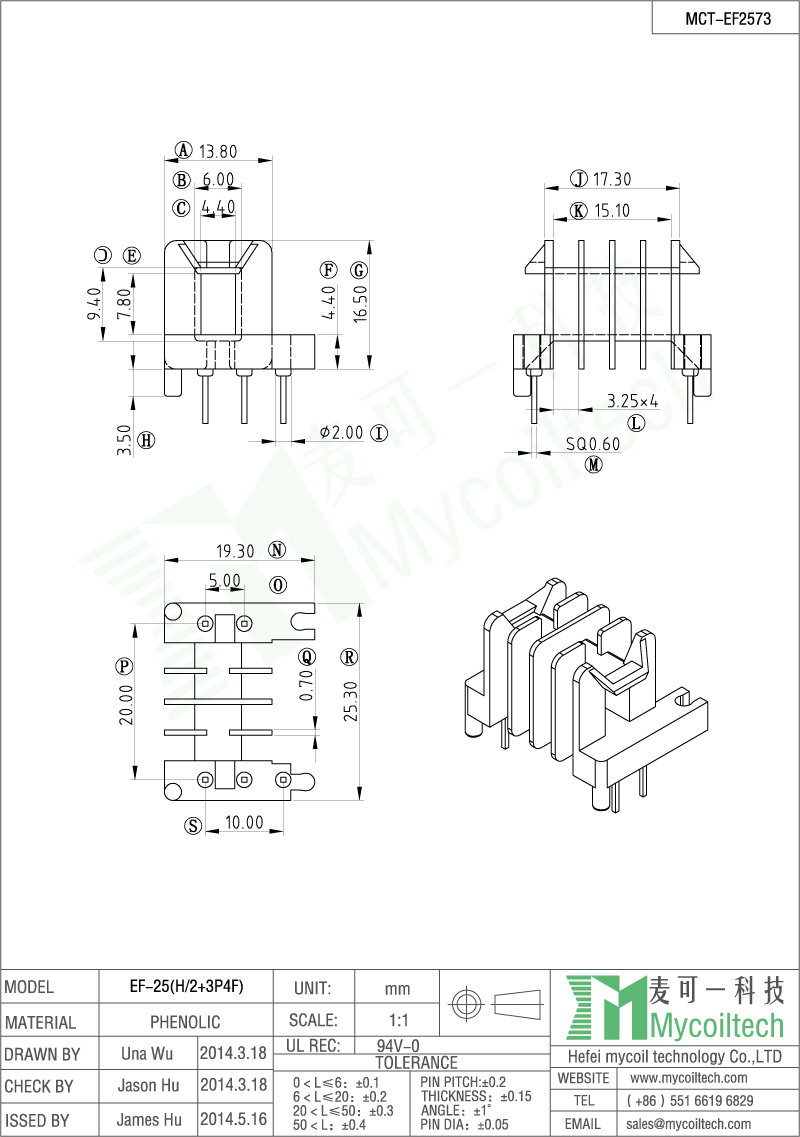

Small size transformer bobbin. Four slots coil former. Bobbin Size=25.3mmX19.3mmX16.5mm. Pin pitch=5.0mm. Parallel Distance=20.0mm. Phenolic material transformer bobbin. DIP bobbin.



Customized electronic transformer from MCT, we are China bobbin factory, we produce all kinds EF25 high frequency transformer bobbins, we make make tooling to meet special dimension.


Quick Details

Part No: MCT-EF2573

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EF25 Horizontal 2+3 Pin Bobbin Four Grooves

Standard parts: Transformers, Inductor, Coils,current transformers, magnetic cores.

Applications: Consumer electronics, computer, TV parts, power supply. filters, etc.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air(TNT/Fedex/UPS/DHL/EMS), By ship, etc.


Product Specification

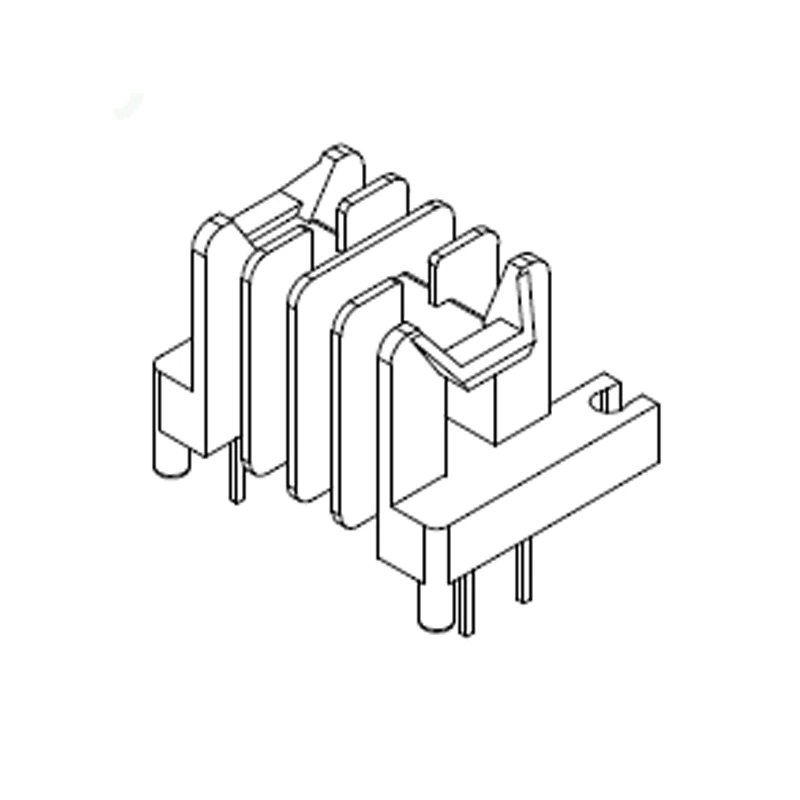

Four slots EF25 bobbin


Please be free to contact us, we will do our best to serve you.
