EF25 Horizontal 4+4 Pin Bobbin Four Slots For Transformer

EF25 coil bobbin four slots. 4+4 pins horizontal EF25 transformer bobbin. Bobbin Size=26mmX25.4mmX21.4mm. Parallel Distance=20mm. Pin pitch=5mm. Nylon and PET material bobbin. DIP transformer bobbin.



2018 latest EF25 four slots transformer bobbin, low price and high quality, if you have any requests, welcome to contact us.


Quick Details

Part No: MCT-EF2514

Brand Name: MCT

Material: PET, Nylon

Color: Black, White, Red

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EF25 Horizontal 4+4 Pin Bobbin Four Slots For Transformer

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu



Product Specification

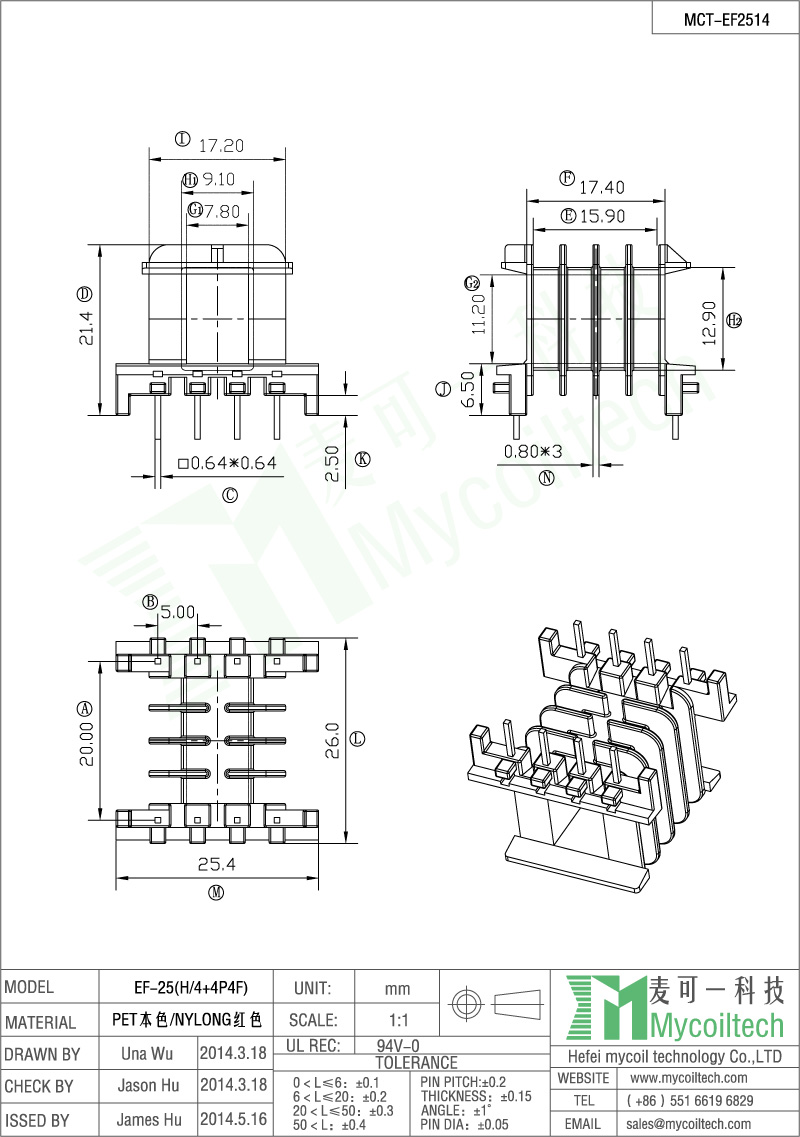

EF25 horizontal bobbin four slots
