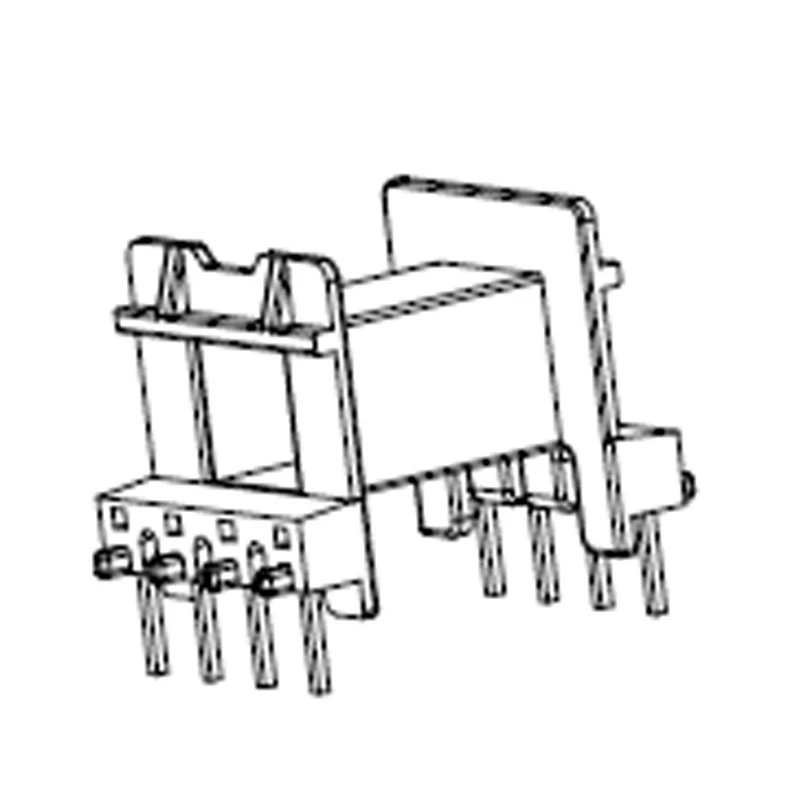

EF25 Transformer Ferrite Core Horizontal Bobbin Pin 4+4

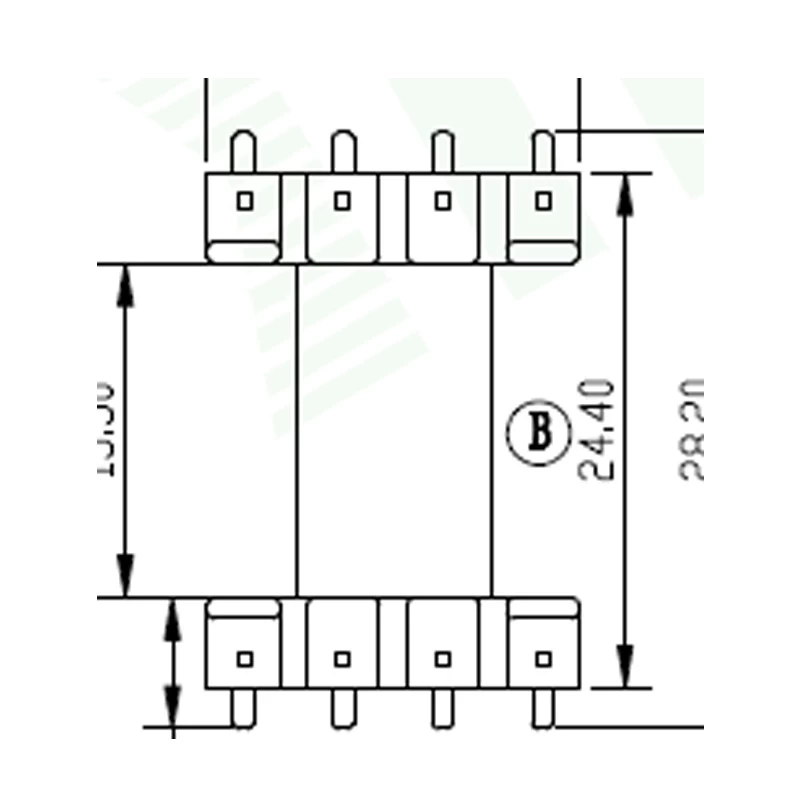

EF25 PC40 ferrite core bobbin. 4+4 pins horizontal EF25 coil former. Bobbin Size=28.2mmX17.5mmX22.58mm. Parallel Distance=21.7mm. Pin pitch=4.7mm. PA66 material bobbin. DIP transformer bobbin.



Hot sell transformer bobbins, low price and high quality EF25 4+4 pins bobbin horizontal, fast delivery time, we can send samples for the testing.


Quick Details

Part No: MCT-EF2528

Brand Name: MCT

Material: PA66

Color: Beige

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EF25 Transformer Ferrite Core Horizontal Bobbin Pin 4+4

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

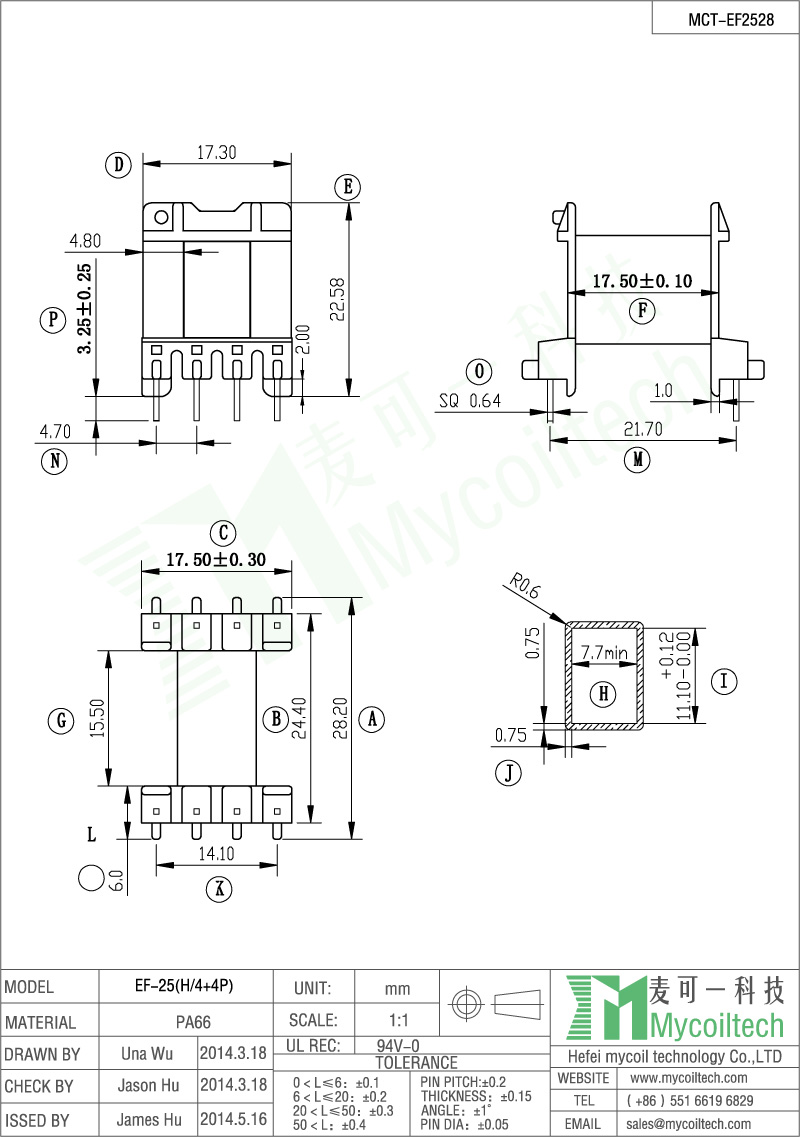

Product Specification

EF25 transformer bobbin factory
