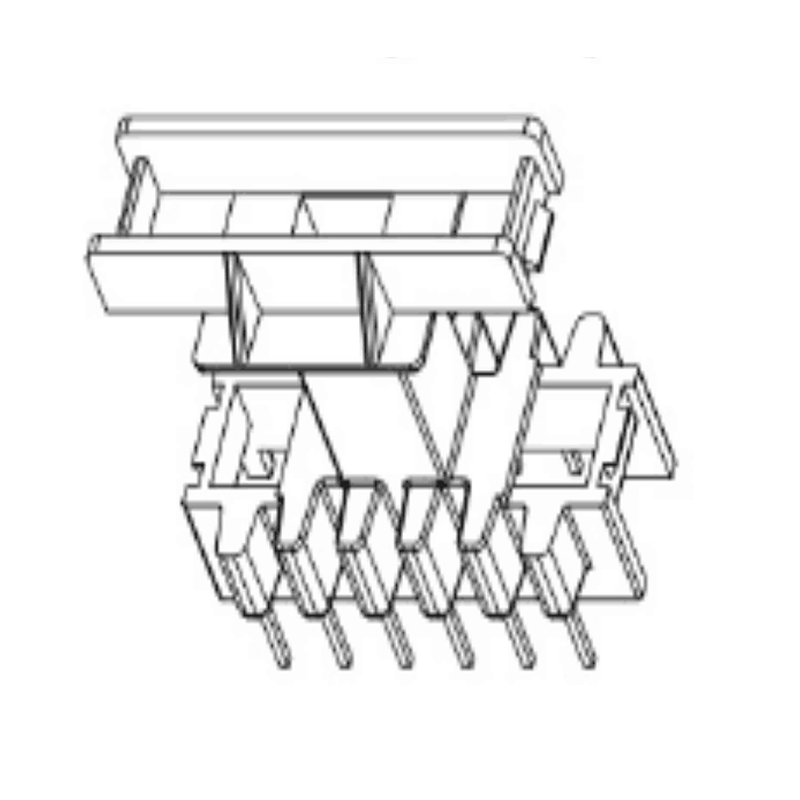

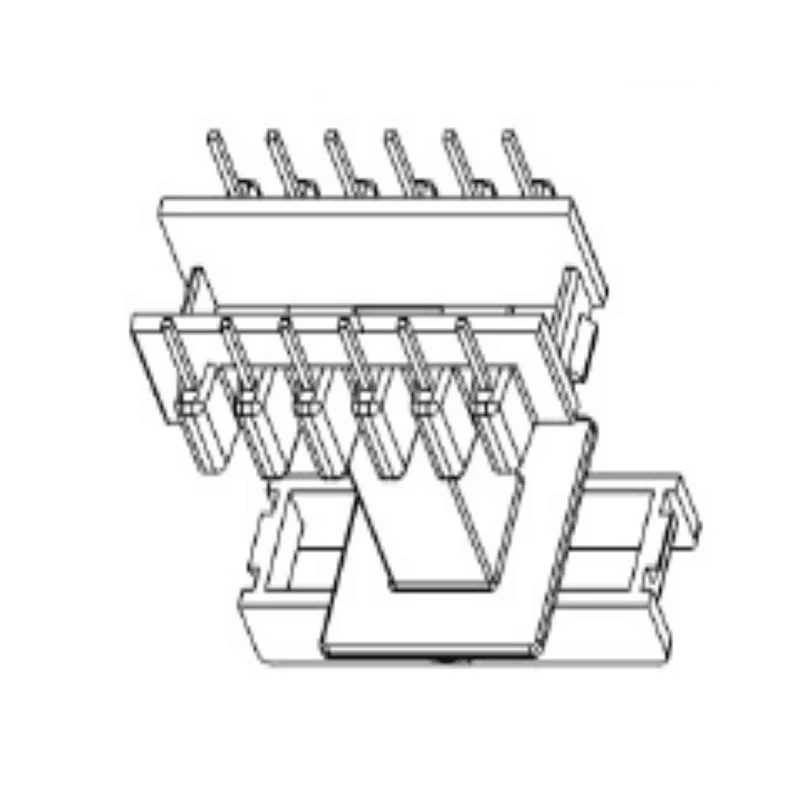

EF30 Power Transformer Vertical Bobbin 6+6 Pin

EF30 rectifier transformer. 6+6 pins vertical EF30 coil former. Bobbin Size=35.3mmX19.0mmX34.8mm. Pin pitch=5.08mm. Parallel Distance=15.24mm. SMPS transformer has small size, high power and low cost, we design and manufacture high frequency transformer.



New produce vertical EF30 coil former for PCB mounting transformer, we can send samples for test, If you need final transformer, we also can manufacture.


Quick Details

Part No: MCT-EF3001

Brand Name: MCT

Material: Phenolic/PET

Color: Black, White

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EF30 Power Transformer Vertical Bobbin 6+6 Pin

Standard parts: Transformers, Inductor, current transformers, magnetic cores.

Applications: Switching power supply, power transformer, LED drive transformer, etc.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: We use TNT/Fedex/UPS/DHL for goods door to door service, By air,By ship, etc.


Product Specification

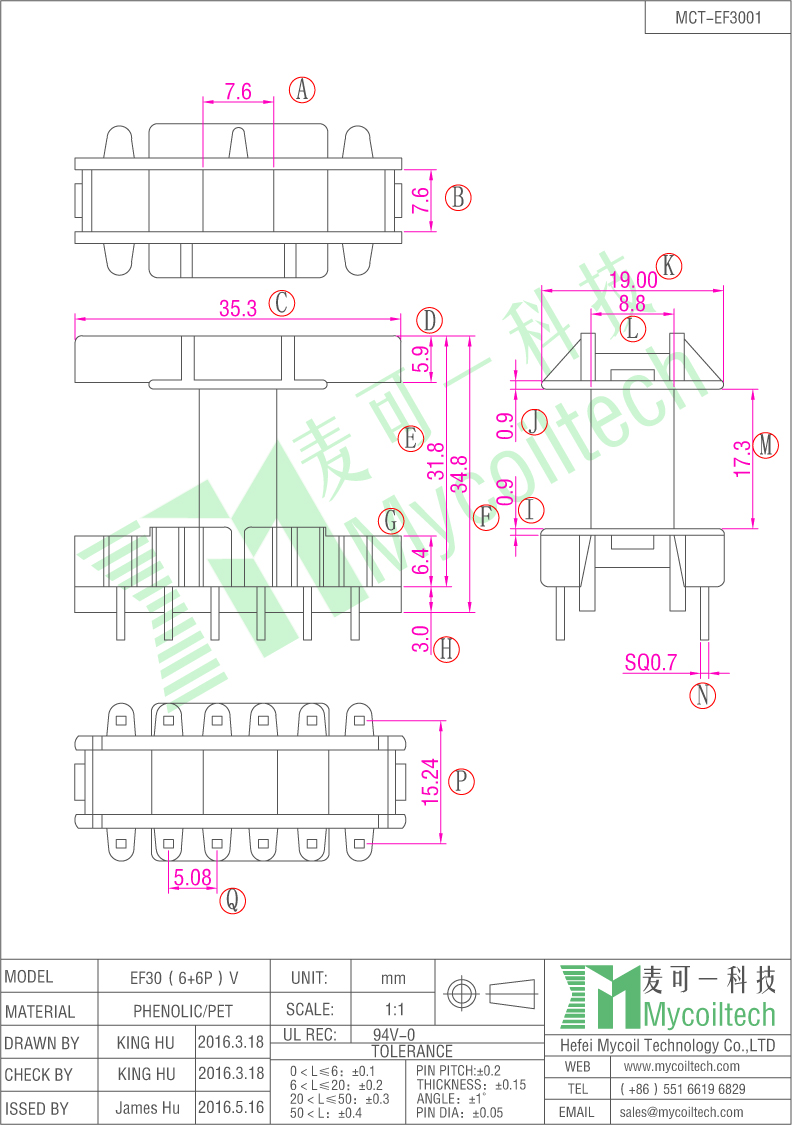

EF30 6+6 pins vertical bobbin


Customized design and specification are acceptable, welcome to contact us.
