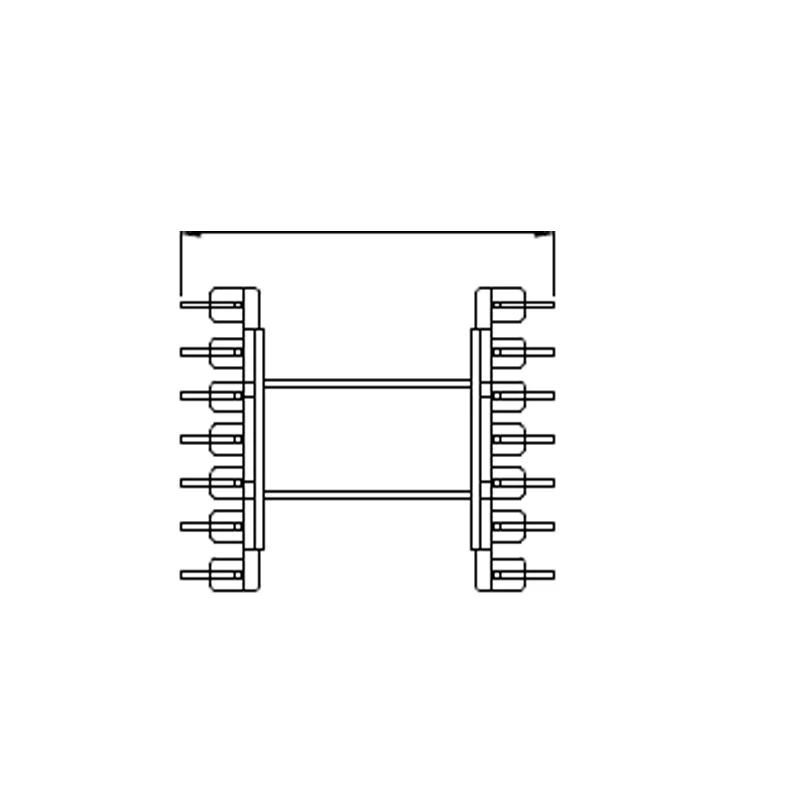

EF35 Horizontal Transformer Bobbin for Electronic Transformers Inductors

7+7 Pins EF35 electronic transformer bobbin. DIP bobbin.

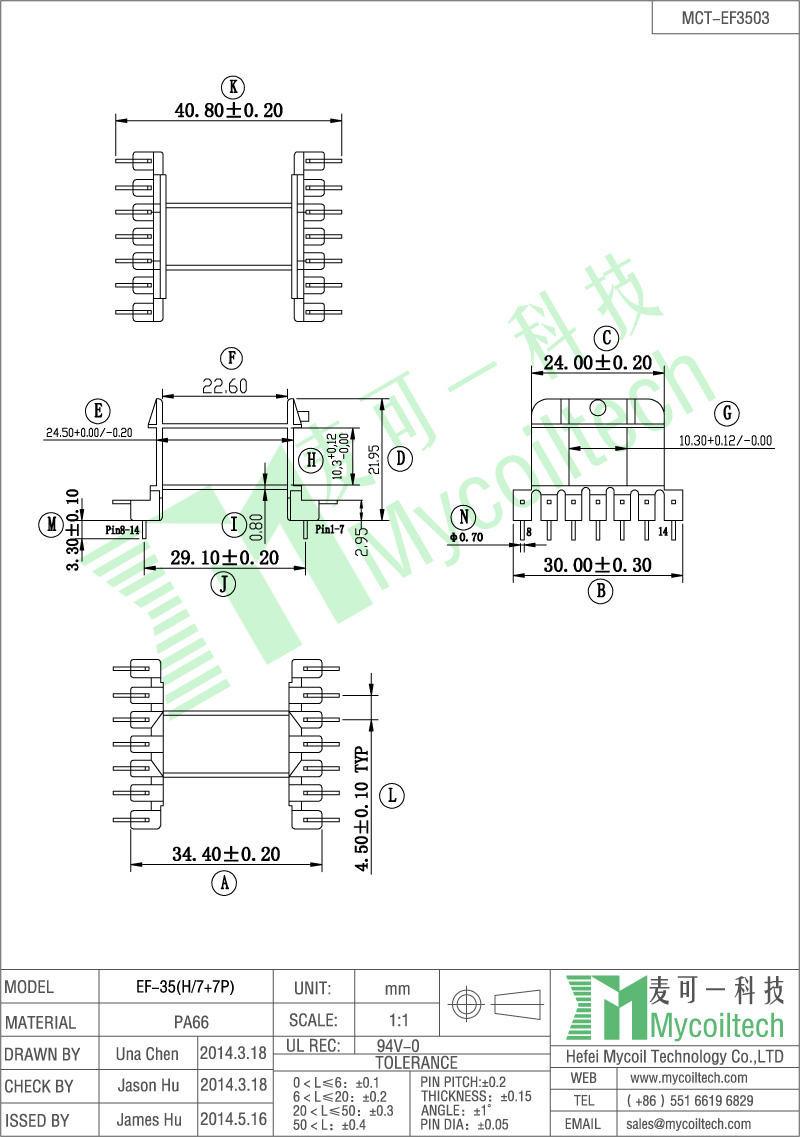

PA66 bobbin. Pin Pitch=4.5mm. Parallel Distance=29.1mm.

Bobbin Size=40.8mmX34.4mmX21.95mm(±0.20). UL REC:94V-0.



We producing and designing various EF35 bobbins for transformer, horizontal EF35 bobbins, 7+7 Pins EF35 bobbins. We can make bobbin tooling to meet different dimension requirements.


Quick Details

Part Number: MCT-EF3503(H7+7P)

Brand Name: MCT

Material: PA66

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EF35 Horizontal Transformer Bobbin for Electronic Transformers Inductors

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu



Product Specification

Good quality EF35 electronic transformer bobbin 7+7 pins bobbin
