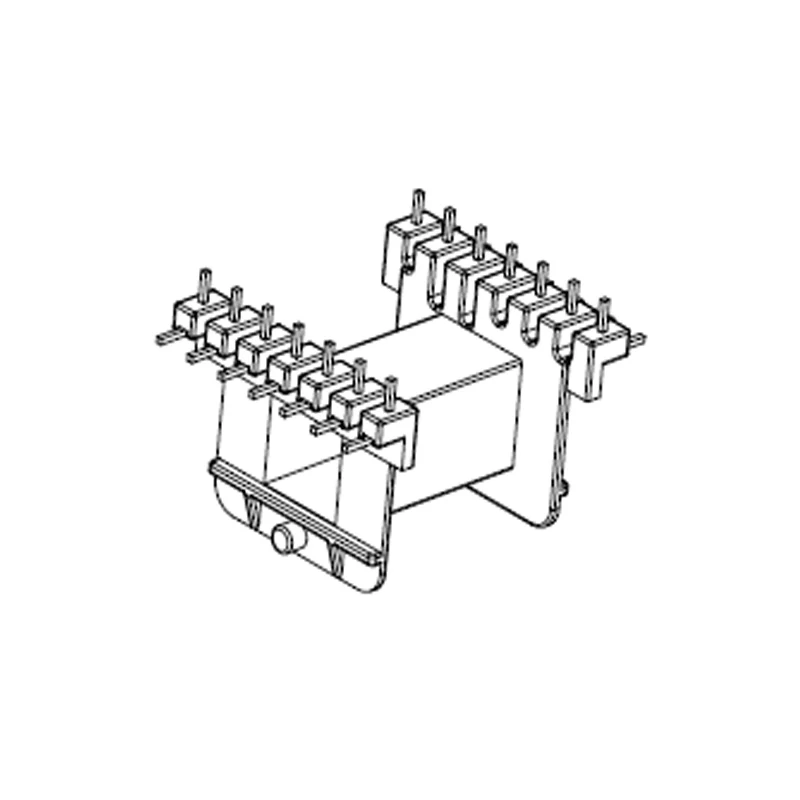

EF35 Transformer Bobbins with 7+7 Pins Horizontal Bobbin

PA66 material EF35 electronic transformer bobbin. DIP bobbin.

7+7 Pins horizontal bobbin. Parallel Distance=29.1mm.

Bobbin Size=34.2mmX30mmX21.95mm. Pin Pitch=4.5mm.



We are professional magnetic components factory, skilled at designing various 7+7 Pins electronic transformer bobbins, horizontal type transformer bobbins. We accept custom design and OEM service, if you have interests, welcome to contact us.


Quick Details

Part Number: MCT-EF3505(H7+7P)

Brand Name: MCT

Material: PA66

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EF35 Transformer Bobbins with 7+7 Pins Horizontal Bobbin

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu



Product Specification

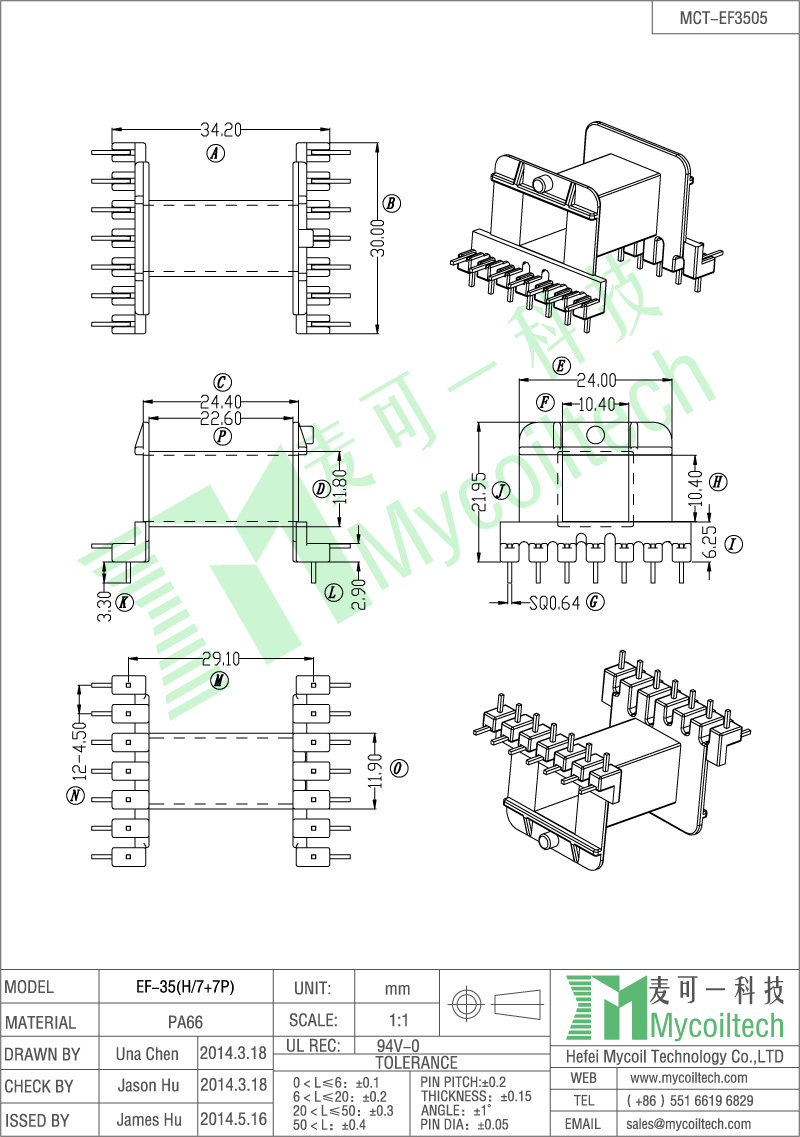

EF35 transformer bobbin with 7+7 pins bobbin
