EFD20 8 Pin High Frequency Transformer Bobbin

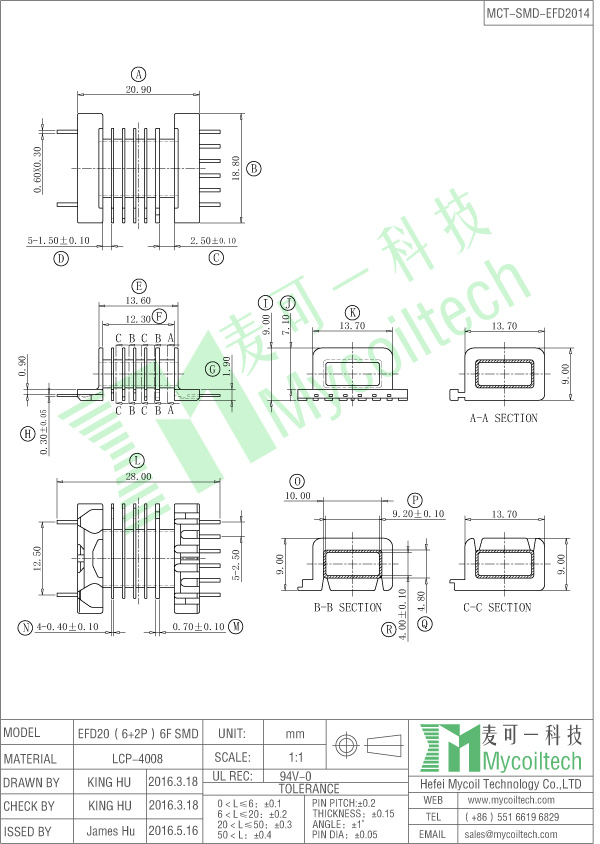

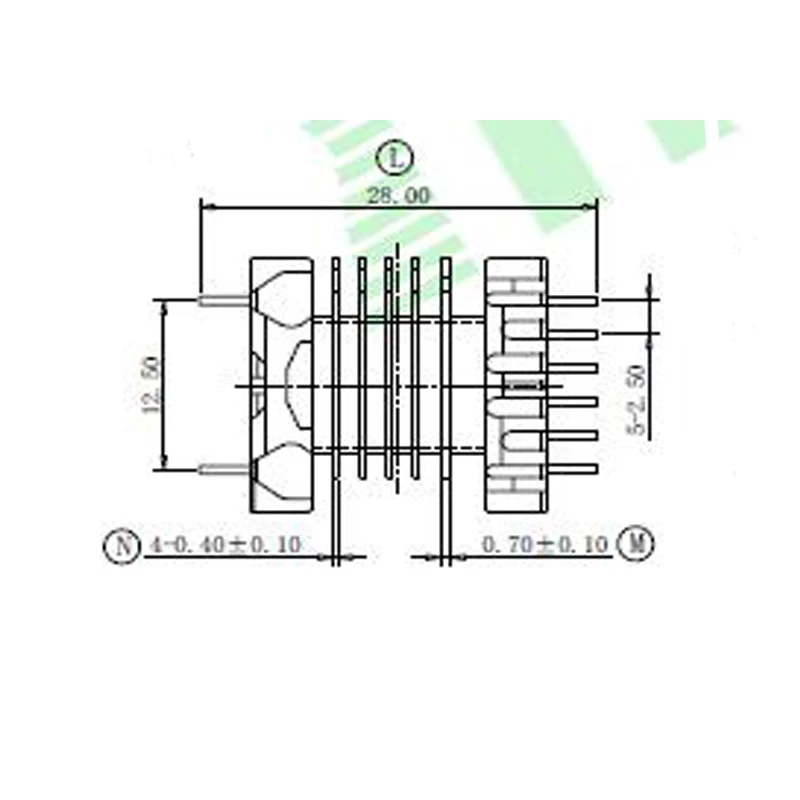

EFD20 bobbin SMD. Ferrite core EFD20 bobbin. Horizontal EFD20 6+2 pin 6 grooves coil former. Bobbin size=28.0X18.0X9.0mm. Pin pitch=2.5mm. Row distance=20.9mm. LCP-E4008 material EFD20 transformer bobbin. Customized design and OEM service are accepted.

Facebook Twitter Pinterest LinkedIn 分享

Hot selling SMD EFD20 six slots bobbin, horizontal 6+2 pin EFD20 core bobbin, samples are available for testing.


Product Specification

EFD20 multi section bobbin
