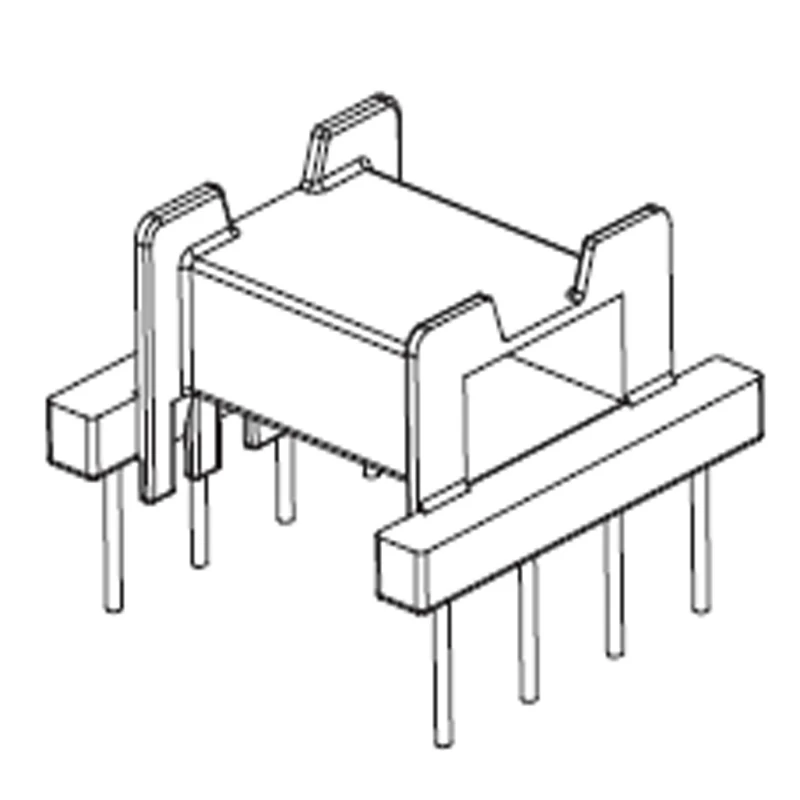

EFD20 Horizontal High Frequency 8 Pin Flyback Transformer Bobbin

EFD20 phenolic bobbin 4+4 pin. EFD20 horizontal type coil bobbin. Pin pitch=5mm. Parallel distance=17.5mm. DIP bobbin. Bobbin Size=20mmX20mmX10.6mm. UL REC:94V-0.



We produce and design high quality EFD20 horizontal 4+4 pin bobbins, we accept custom design and small order, if you have any requests, welcome to contact us.


Quick Details

Part No: MCT-EFD2010(H4+4P)

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EFD20 Horizontal High Frequency 8 Pin Flyback Transformer Bobbin

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

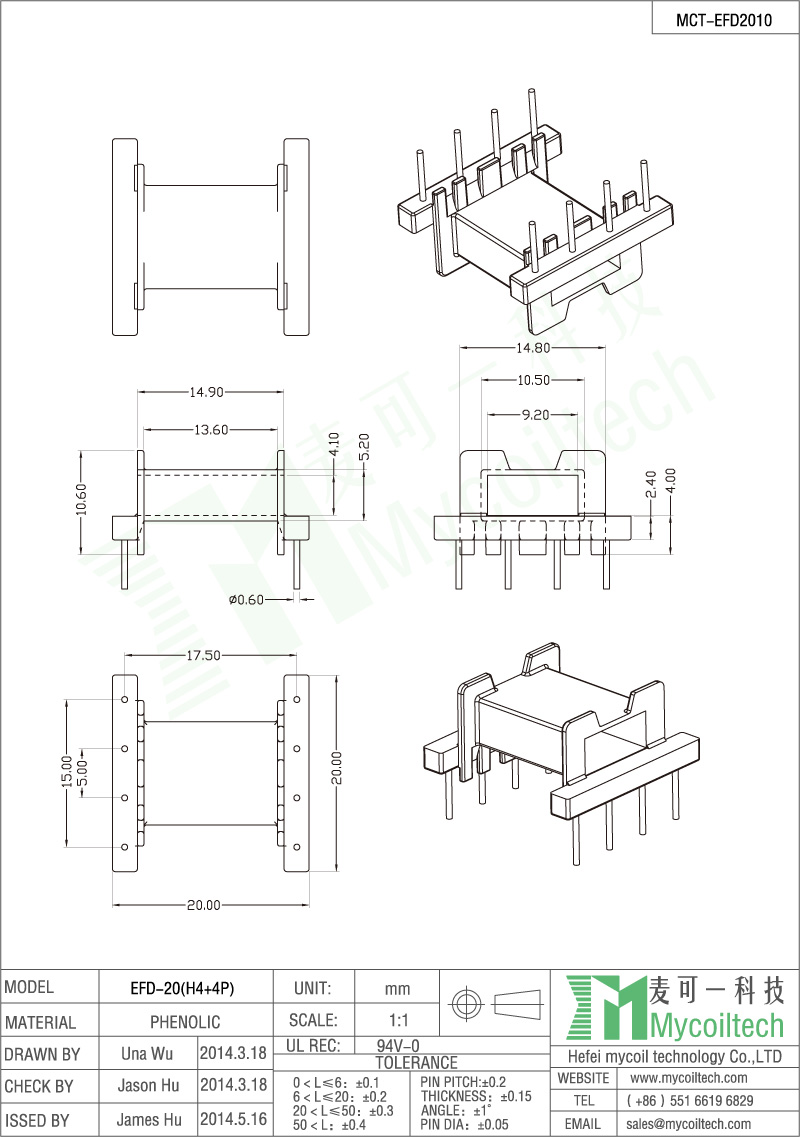

Product Specification

EFD20 horizontal bobbin used in ferrite cores
