Transformer factory hot selling EFD20 switching power supply transformers, best quality and low price, if you don't find the drawings with the appropriate parameters on our website, please be free to contact us, we can design for you according to your requirements.
Quick Details
|
Part No: Flexible SMPS-Transformer EFD20
|
Brand name: MCT
|
|
Insulation test voltage: 500V
|
Custom made: Available
|
|
Low leakage inductance
|
Logo: Can be customized
|
|
Transformer with 6 winding
|
Packing: Carton, can custom
|
|
Operating temperature -40°C~+125°C
|
MOQ: Any quantity
|
|
Certification: ISO9001,ROHS,CE
|
OEM: Available
|
|
Lead time: 25 days after payment
|
Shipping: Air, Ship, etc
|
Part Information

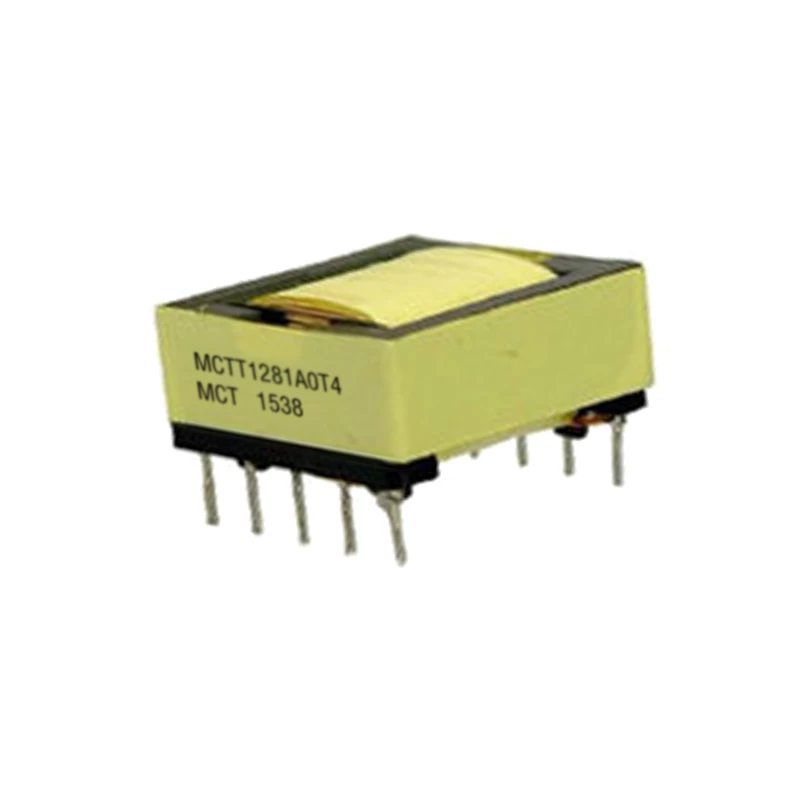

Product Name: EFD20 Horizontal High Frequency Switching Mode Power Supply Transformer
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Flyback converters. Forward converters. Push-pull converters. Step-Up/Step-down converters. Sepic converters(single ended primary inductor converter)
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Specifications
Electrical Data and Part Number(PN)
|
L1..L6 in uH
|
L1..L6 in mA
|
Lsat in mA
|
DCR/mΩ
|
MCT PN
|
|
10.0
|
1800
|
1200
|
30
|
MCT-CBB-B10
|
|
5.5
|
1800
|
2500
|
30
|
MCT-CBB-B05
|
|
4.5
|
1800
|
2900
|
30
|
MCT-CBB-B04
|
|
3.5
|
1800
|
4200
|
30
|
MCT-CBB-B03
|
