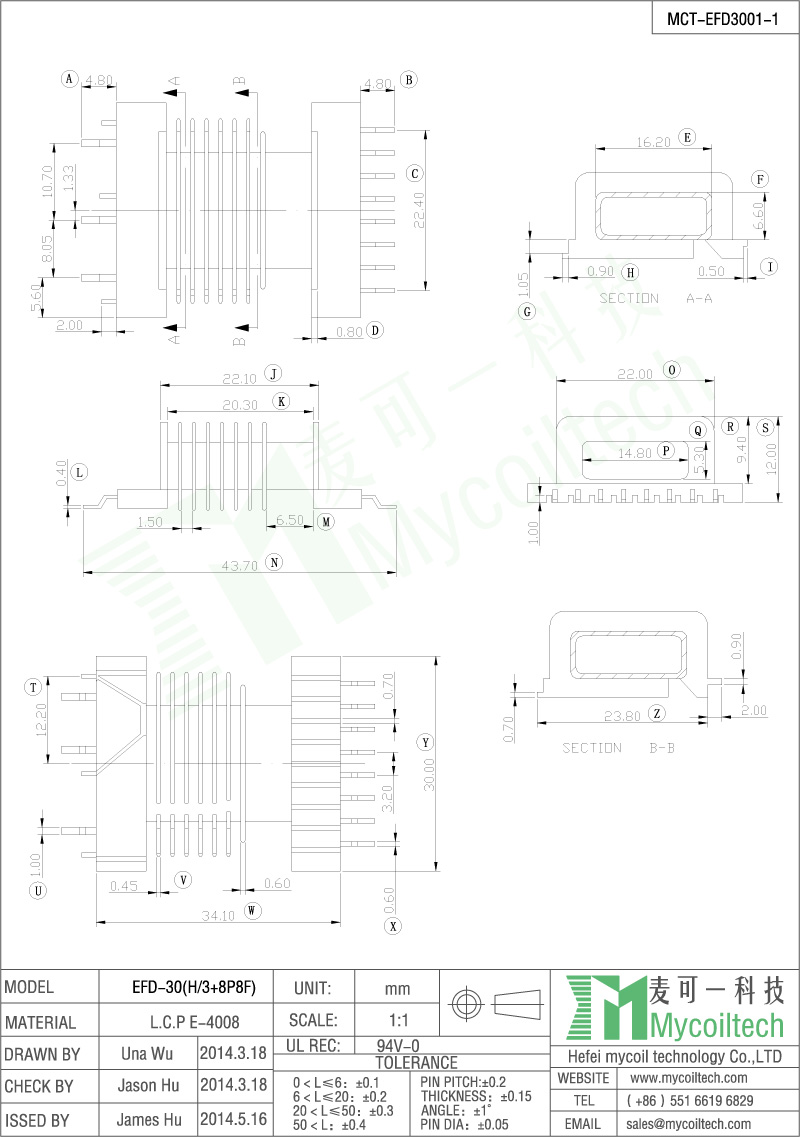

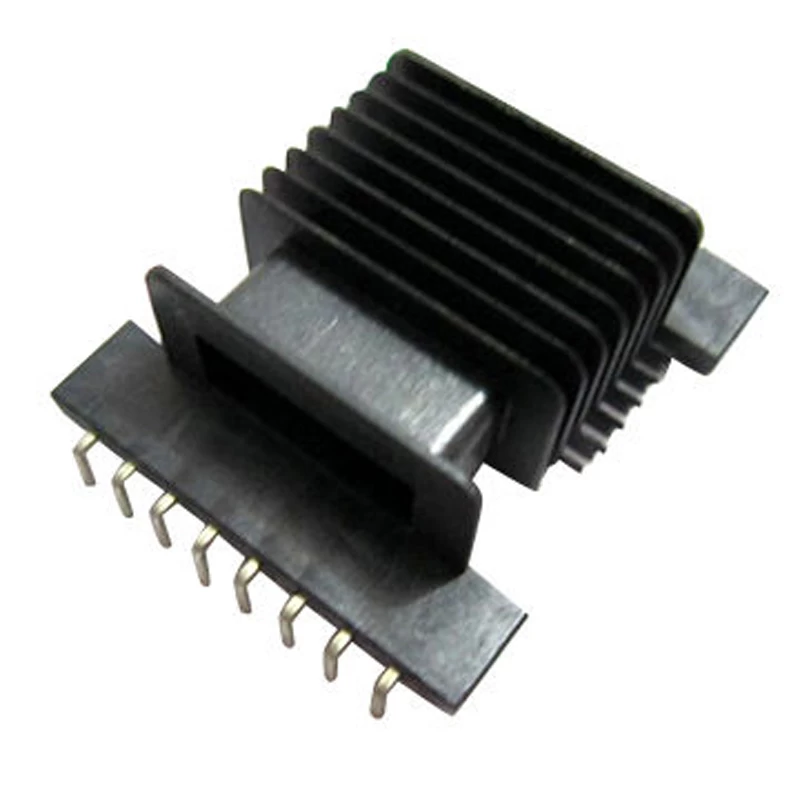

EFD30 Horizontal Transformer Bobbin 3+8 Pins Eight Slots Transformer Bobbin

Horizontal EFD30 transformer bobbin. UL REC:94V-0.

3+8 Pins transformer bobbin.Parallel Distance=34.1mm.

Eight slots bobbin. Bobbin Size=43.7mmX30mmX12mm.



Professional EFD30 transformer bobbin factory, best price 3+8 Pins horizontal bobbin with eight slots bobbin, if you are looking for high quality electronic transformer bobbins, welcome to contact us.


Quick Details

Part Number: MCT-EFD3001-1(H3+8P8F)

Brand Name: MCT

Material: LCPE-4008

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EFD30 Horizontal Transformer Bobbin 3+8 Pins Eight Slots Transformer Bobbin

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu



Product Specification

EFD series electronic transformer bobbin horizontal bobbin
