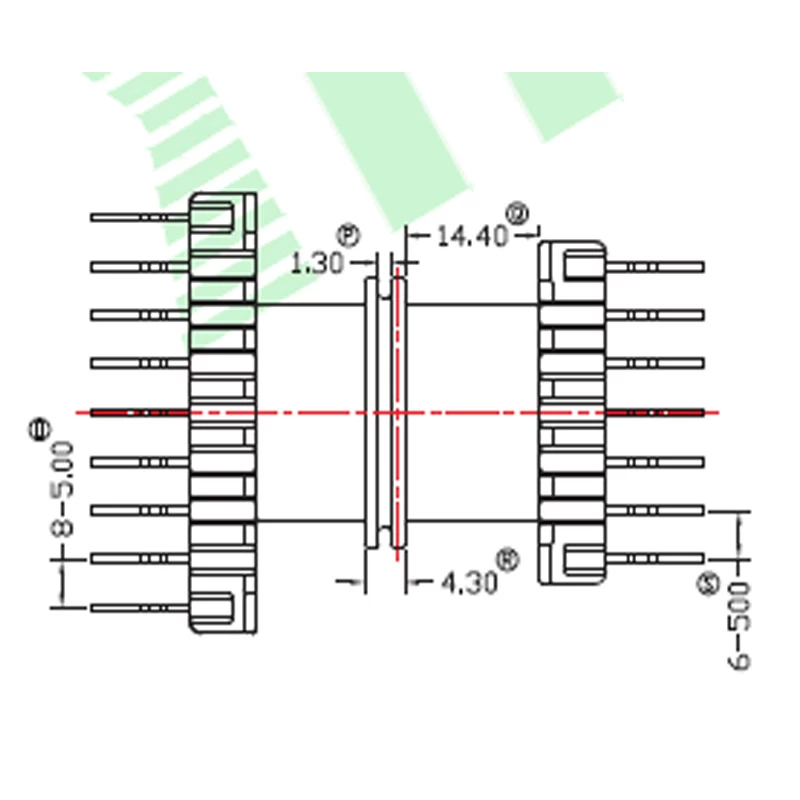

EFD40 7+9 Pins Coil Former for Ferrite Cores Double Section Horizontal Bobbin

EFD40 multi section transformer bobbin. Horizontal bobbin.

Parallel Distance=44.3mm. 7+9 pins transformer bobbin.

Bobbin Size=45mmX44.3mmX12.7mm. UL REC:94V-0.



High quality and good price EFD40 coil former, 7+9 pins horizontal bobbin, multi section transformer bobbin. Our transformer bobbin can decrease leakage inductance and enhance the performance of electronic transformers.


Quick Details

Part Number: MCT-EFD4007(H7+9P2F)

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EFD40 7+9 Pins Coil Former for Ferrite Cores Double Section Horizontal Bobbin

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

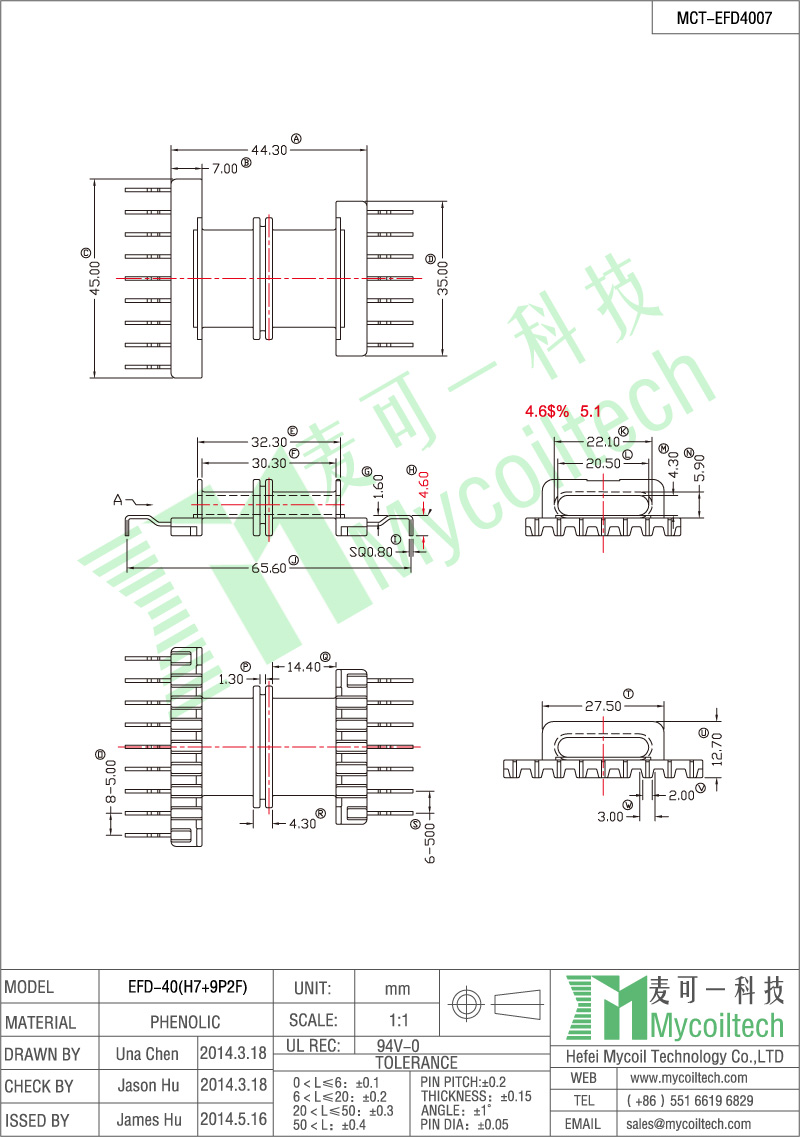

Product Specification

 Efd40 Phenolic Bobbin for High Frequency Transformer
