EI19 Vertical Bobbin For Power Supply Transformer

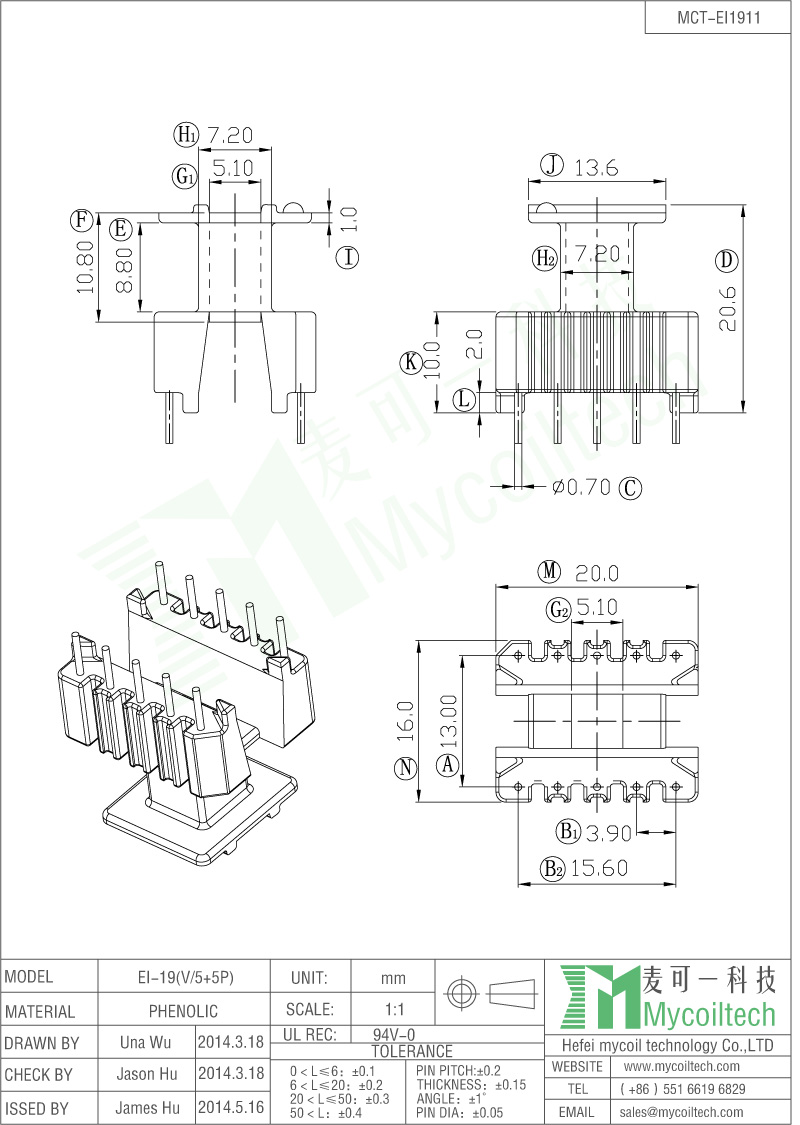

5+5 pins vertical transformer bobbin. Bobbin Parallel Distance=13mm. Pin Pitch1=3.9mm. Pin Pitch2=5.1mm. Bobbin size=20mmX116mmX20.6mm. DIP transformer bobbin. We can make new bobbin tooling to meet different requirements. UL REC:94V-0.



Transformer bobbin factory hot sale high frequency transformer EI19 bobbin, competitive price and high quality, if you have any requests, welcome to contact us.


Quick Details

Part Number: MCT-EI1911

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EI19 Vertical Bobbin For Power Supply Transformer

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu



Product Specification

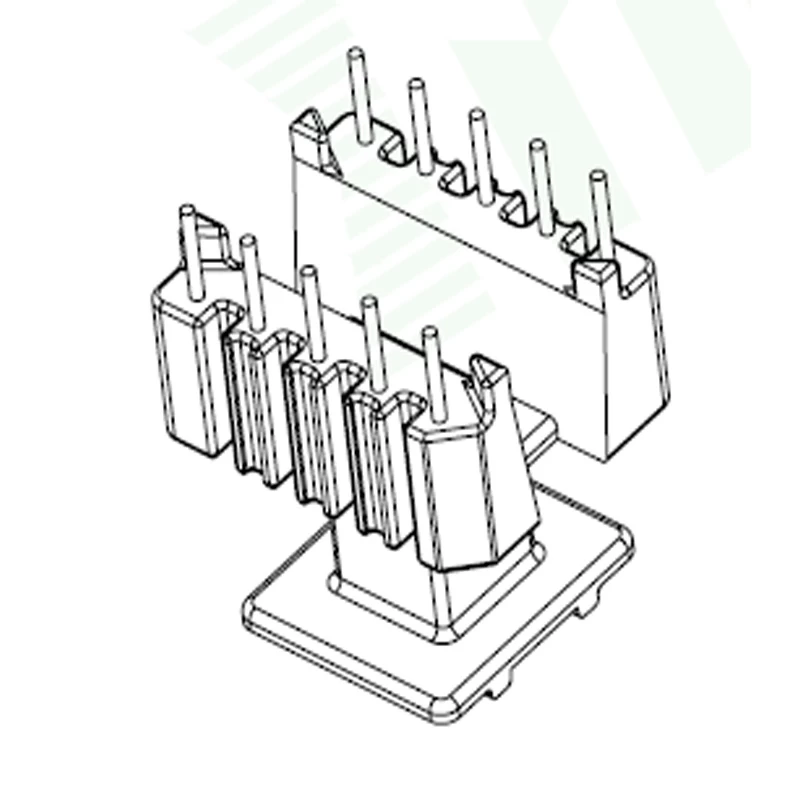

5+5 pin EI type vertical bobbin
