EI28 Low Frequency Horizontal Laminated Transformers 1.1VA

EI28 laminated low frequency transformer. Low frequency transformer has rugged construction - no additional mounting hardware, universal design, fits industry-standard footprints. Low Frequency, open-style laminated, split bobbin, horizontal plug-in series.



We are ISO9001 certification factory, we have over 10 years experience in manufacturing transformers, such as high frequency transformers, low frequency transformers, toroidal transformers, large/high current transformers, encapsulated transformers, other electronic transformers. We can deign according to customer's different requirements, if you need samples, we can provide in 5 days.


Quick Details

Part No: EI28 Laminated transformers 1.1VA Series

Brand name: MCT

High (2500V) isolation2500VRMS HIPOT

Custom made: Available

Non-concentric design - eliminates ESS

Logo: Can be customized

High insulation performance

Packing: Carton,can custom

Available in single or dual primary

OEM: Available

Certification: ISO9001,ROHS,CE

Shipping: Air, Ship, etc

Lead time: 25 days after payment

MOQ: Any quantity


Part Information

Product Name: EI28 Low Frequency Horizontal Laminated Transformers 1.1VA

Product Benefits: No crossover between primary/secondary winding leads, Vacuum impregnated - withstands board washing, Systems and reduces audible noise, Baked resin provides an environmentally-resistant finish.

Applications: air conditioner, VCD, UPS power supply, microwave oven, amplifier, medical treatment, chemical industry and other electronic machine.

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

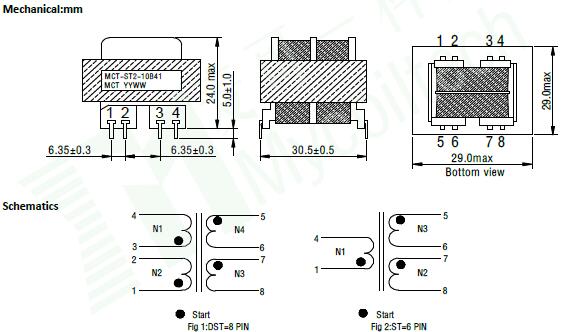

Product Specifications

PCB Mount Low Frequency Laminated Transformer

MCT Part No.

115V-6Pin

MCT Part No.

115V/230V-8Pin

Secondary RMS Rating

Series

Parallel

MCT-ST2-10B41

MCT-DST2-10B41

10V C.T. @ 0.11A

5V @ 0.22A

MCT-ST2-12B42

MCT-DST2-12B42

12.6V C.T. @ 0.09A

6.3V @ 0.18A

MCT-ST2-16B43

MCT-DST2-16B43

16V CT. @ 0.07A

8V @ 0.14A

MCT-ST2-20B44

MCT-DST2-20B44

20V C.T. @ 0.055A

10V @ 0.11A

MCT-ST2-24B45

MCT-DST2-24B45

24V C.T. @ 0.045A

12V @ 0.09A

MCT-ST2-28B46

MCT-DST2-28B46

28V C.T. @ 0.04A

14V @ 0.08A

MCT-ST2-36B47

MCT-DST2-36B47

36V C.T. @ 0.03A

18V @ 0.06A

MCT-ST2-48B48

MCT-DST2-48B48

48V C.T. @ 0.023A

24V @ .046A

MCT-ST2-56B49

MCT-DST2-56B49

56V C.T. @ 0.02A

28V @ 0.04A

MCT-ST2-120B50

MCT-DST2-120B50

120V C.T. @ 0.01A

60V @ 0.02A
