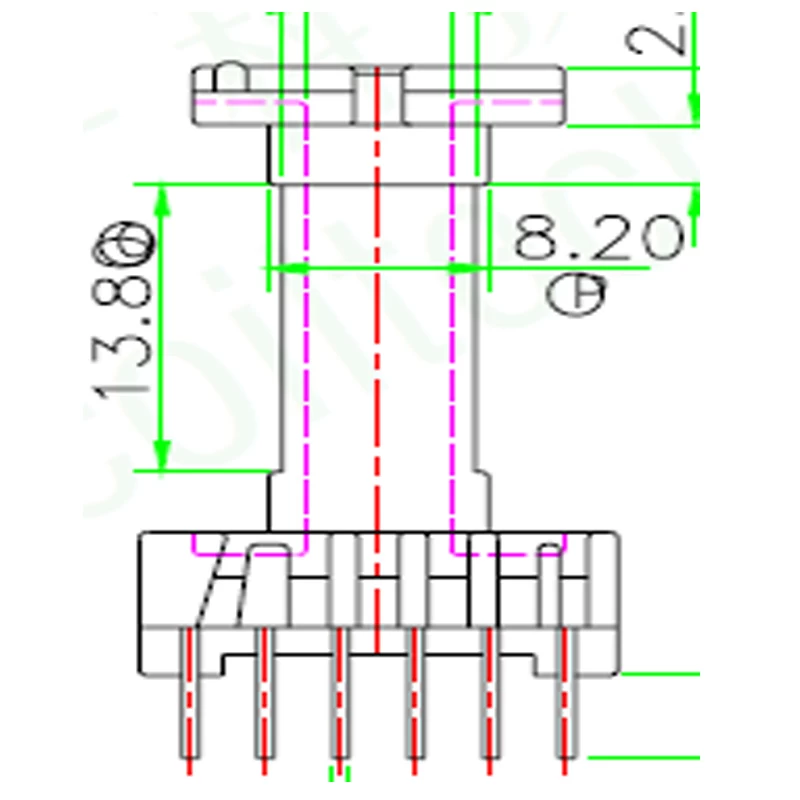

EL19 4+6 Pin Transformer Bobbin Vertical Type Single Slot Coil Bobbin

EL19 vertical coil former. 4+6 pin transformer bobbin. Phenolic material transformer bobbin. Parallel distance=10.9mm. Pin Pitch1=3.5mm. Pin Pitch2=3.5mm. Dip bobbin. Bobbin Size=17.8mmX16.3mmX29.3mm. UL REC: 94V-0



We are professional electronic components manufacturer, our main products are high frequency transformers, inductors,  EMI filters, coil formers. All products samples are supported, OEM service are also welcome.


Quick Details

Part Number: MCT-EL1904(V4+6P)

Brand Name: MCT

Material: Phenolic

Color: Beige

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EL19 4+6 Pin Transformer Bobbin Vertical Type Single Slot Coil Bobbin

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

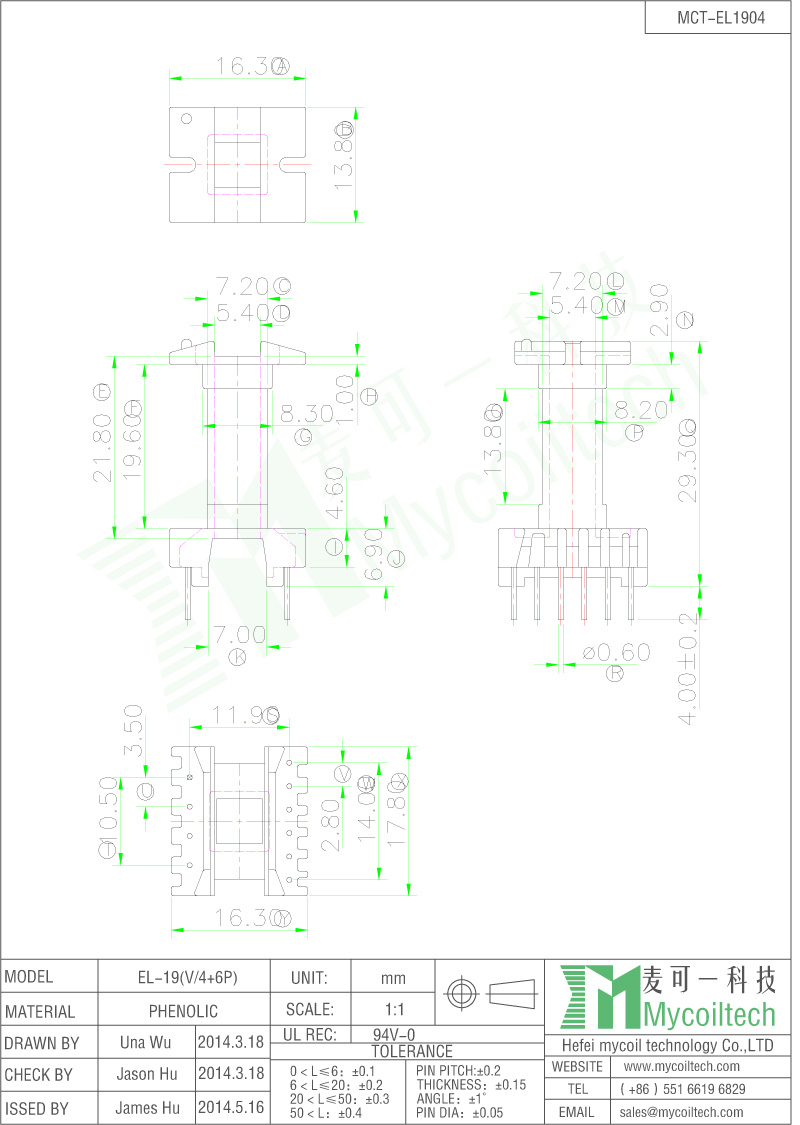

Product Specification

4+6 pin vertical transformer bobbin
