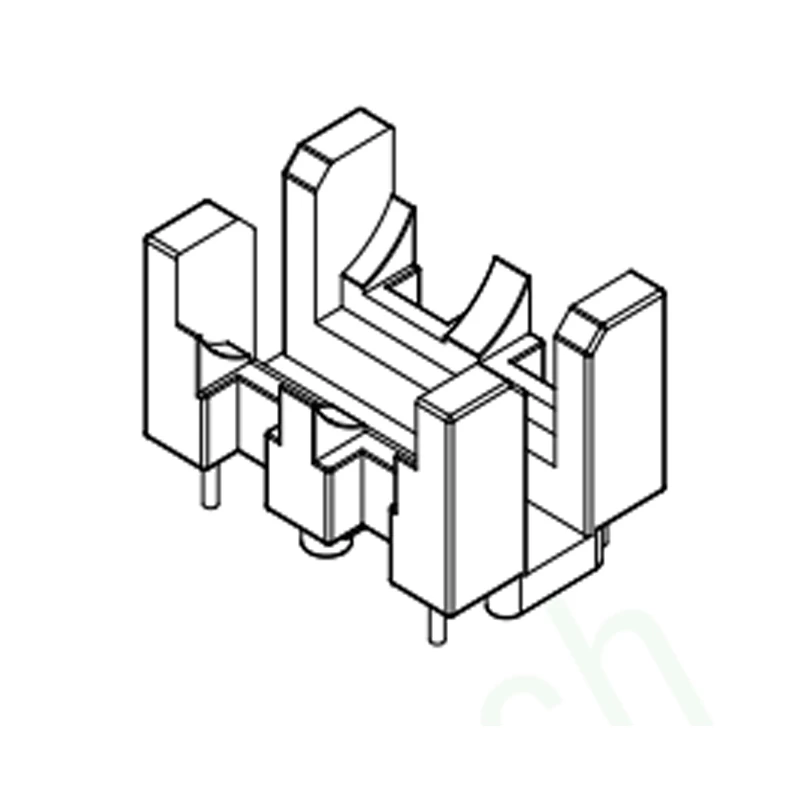

Electronic Inductor ET28 Base Pin 2+2

ET28 filter inductor base. ET28 ferrite core inductor. Base size=28.4mmX20.1mmX18.0mm. Parallel distance=21.0mm. Pin pitch=15.0mm. ET28 common mode choke. PBT material choke coils factory. We can make tooling to meet different dimensions.UL REC: 94V-0



Popular ET28 common mode choke base, 2+2 pins inductor base, if you need samples to test, we can prepare for you. And we can supply matched ferrite cores and make filter inductors.


Quick Details

Part No: MCT-ET28-BASE01

Brand Name: MCT

Material: T375HF

Color: Beige

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: Electronic Inductor ET28 Base Pin 2+2

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

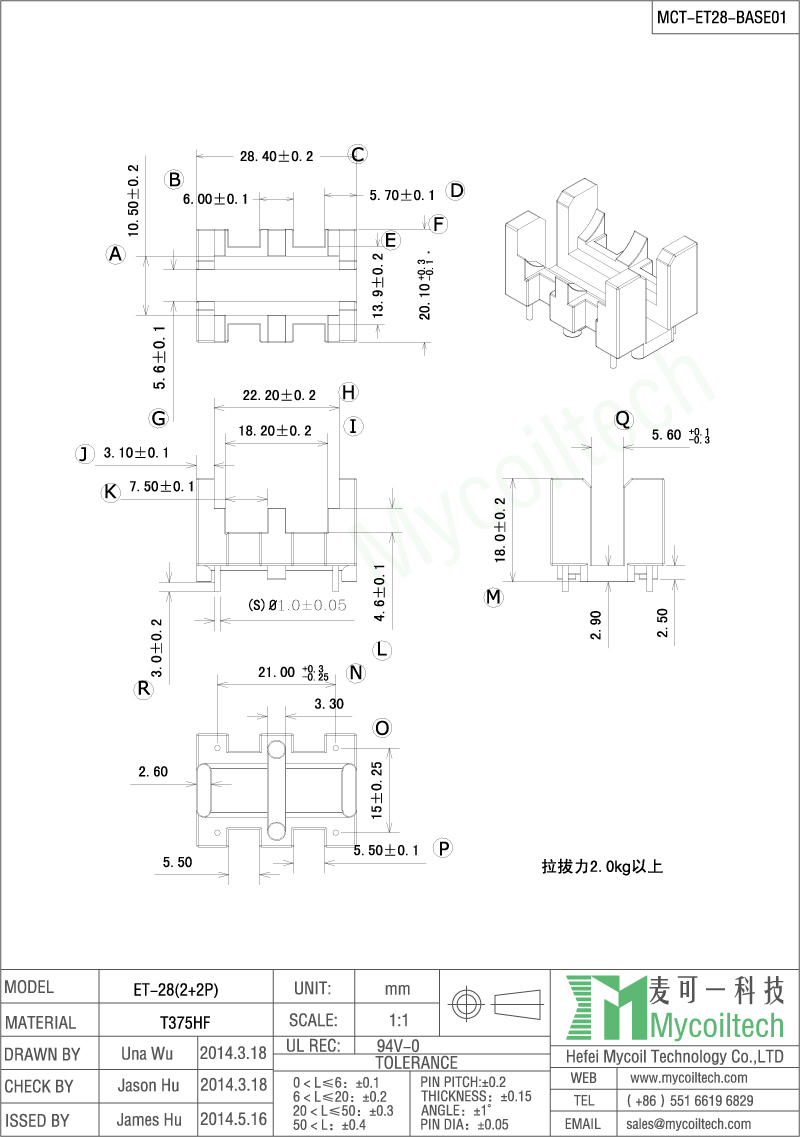

Product Specification
