Electronic Single Yarn Strength Tester GT-A02A

Electronic Single Yarn Strength Tester is used to test the breaking strength and elongation percentage of various cotton, wool, linen, silk, chemical fiber, core-spun single yarn, pure or blending natural or chemical fiber yarns.

Facebook Twitter Pinterest LinkedIn 分享

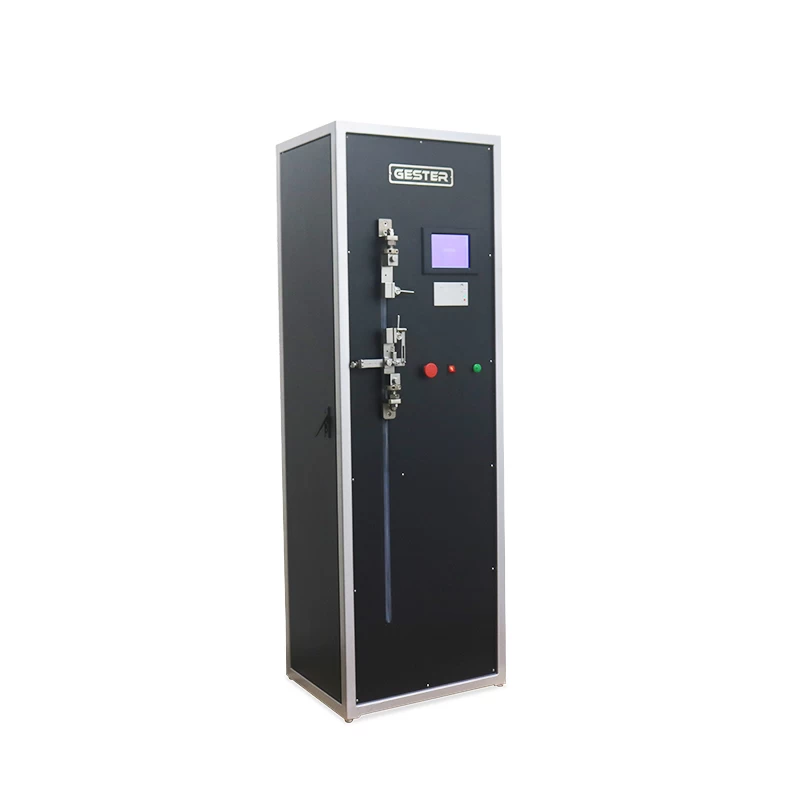

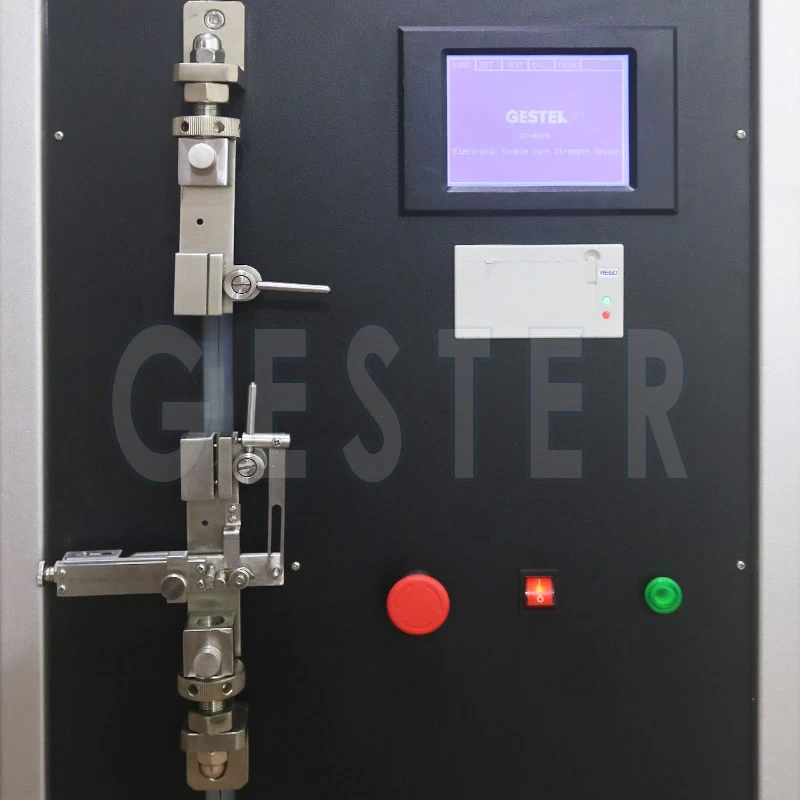

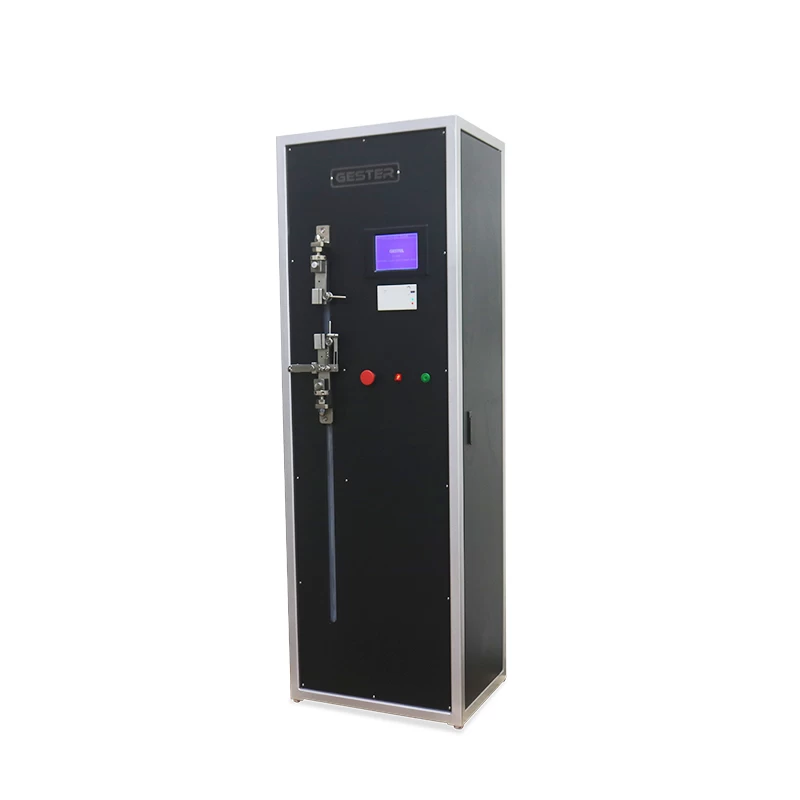

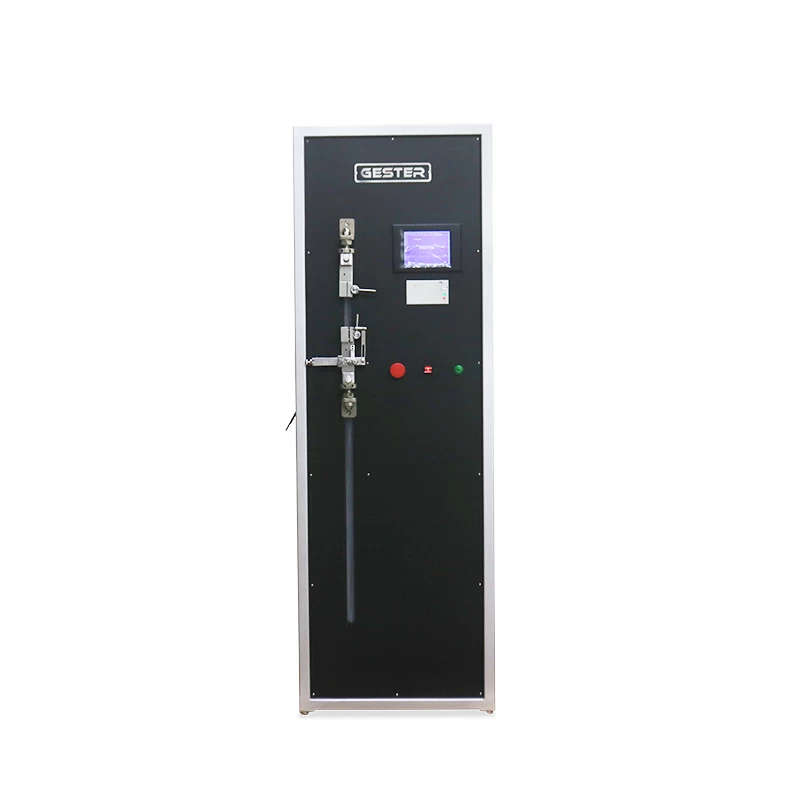

Electronic Single Yarn Strength Tester GT-A02A


Product Introduction

Application:

Electronic Single Yarn Strength Tester  is used to test the breaking strength and elongation percentage of various cotton, wool, linen, silk, chemical fiber, core-spun single yarn, pure or blending natural or chemical fiber yarns.


Standards:

GB/T14344, GB/T3916, ISO2062, ASTM D2256

Dimensions

Single Yarn Strength Tester

Key Specifications

Model

GT-A02A-1

GT-A02A-2

GT-A02A-3

GT-A02A-4

Load range

0-3000cN

0-5000cN

0-100N

0-300N

Working pattern

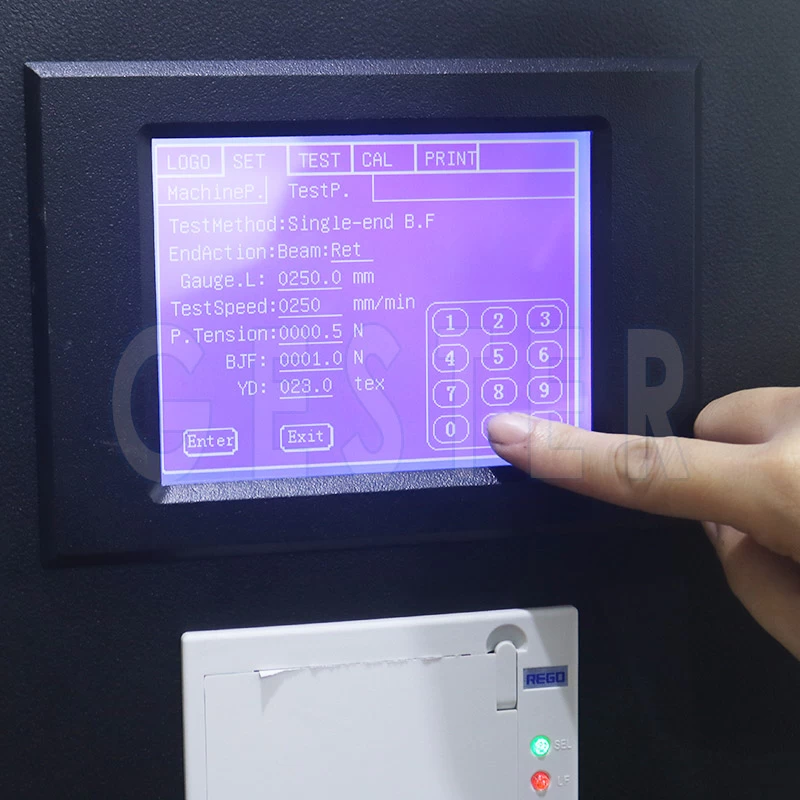

Constant rate of extension (CRE principle), computer control, English LCD display, report printing.

Testing range

1%-100% of the full range

Testing accuracy

≤0.2%F·S

Test speed

50～1000mm/min

Stroke space

800mm

Clamp distance

50～500mm，digital setting

Pr-tension

0-150cN tension steelyard

Power supply

Ac220V±10%  50Hz  0.25Kw

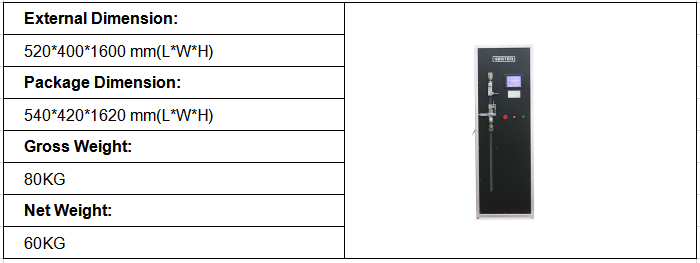

Dimensions

520×400×1600mm

Weight

60kg


Accessories

Standard accessories

1PC

Power line


Application Industry

All kinds of materials can be tested on the Electronic Single Yarn Strength Tester.

Single Yarn Strength Tester
