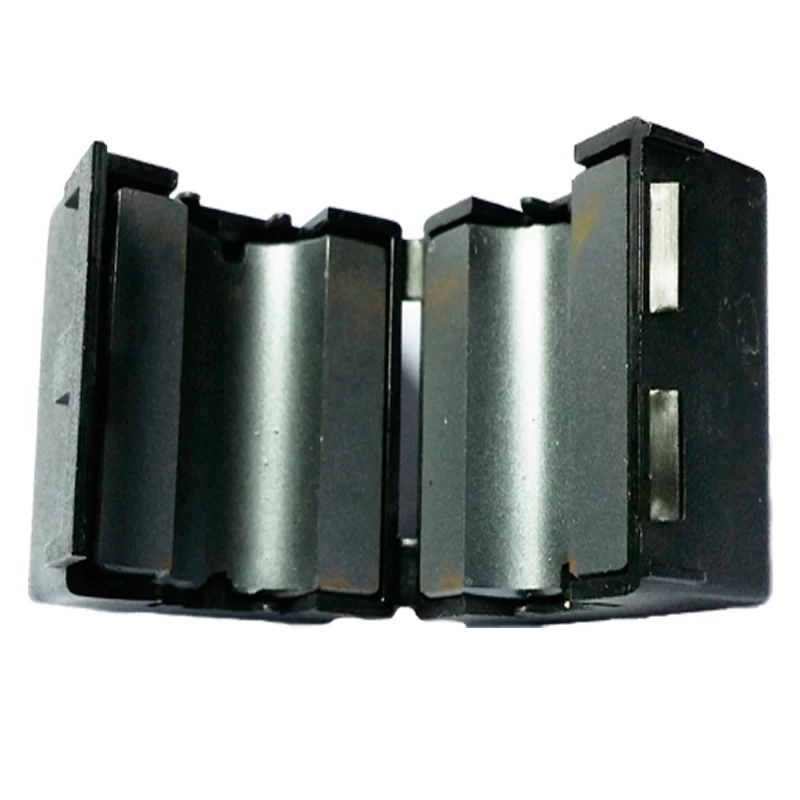

EMI Soft Ferrite Core for EMI Suppression

Customized EMI ferrite core noise filter, which has the ability to receive an electrostatic pulse absorbing EMI absorption ring, the electronic equipment to achieve electromagnetic compatibility (EMI / EMC ) and the corresponding international standard electrostatic discharge.




EMI absorption ring / bead multi-strand cable on the EMI suppression, including noise and spike noise on the power line, it also has the ability to receive an electrostatic pulse absorbing EMI absorption ring, the electronic equipment to achieve electromagnetic compatibility (EMI / EMC ) and the corresponding international standard electrostatic discharge, the use may be more than one core cable or a bundle of multi-strand cables through therein. Wear once to strengthen its effectiveness. Typically impedance value and 25MHz to measure the absorption characteristics of the core.


Quick Details

Part No: EMI Ferrite Core

Brand name: MCT

EMI suppression

Custom made: Available

Samples time5-7 days

Logo: Can be customized

Packing: Carton, can custom

Shipping: Air, Ship, etc

Lead time: 25 days after payment

MOQ: Any quantity

Certification: ISO9001,ROHS,CE

OEM: Available


Part Information

Product Name: EMI Soft Ferrite Core for EMI Suppression

Applications: Data communication, Industrial equipment power supply, Medical equipment, Testing equipment, Computers, tele-communication equipment and consumer's electronics,

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Advantages: Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.

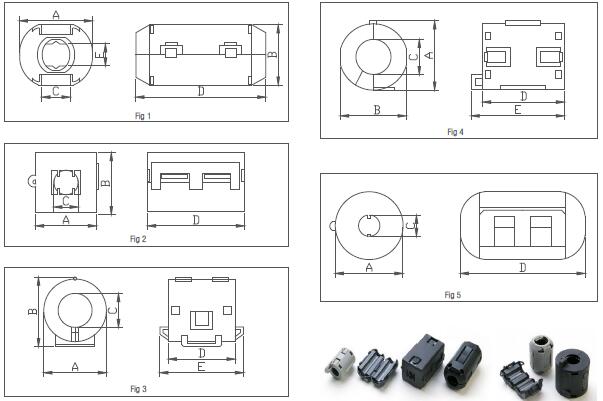

Product Details

MCT PN

FIG

DIMENSION:mm

Impendence(Ω)min

A

B

C

D

E

25MHz

100MHz

MCT-RC35B

13±1

11.8±1

5±0.8

25.5±1

2.5±1

70

170

MCT-RC50

16.5±1

/

5±0.8

29.5±1

/

65

160

MCT-RC70

15.5±1

14±1

7±0.8

18±1

22±1

40

110

MCT-RC70B

16.5±1

15±1

7±0.8

30±1

2.5±1

75

170

MCT-RC90A

20±1

/

9±0.8

31.5±1

35.5±1

75

205

MCT-RC90B

19.5±1

18±1

9±0.8

35±1

5.5±1

80

200

MCT-RC130B

30±1

/

13±0.8

34±1

39±1

110

240

MCT-RC1330B

23.5±1

22.2±1

13.5±0.8

36±1

10.5±1

65

165

MCT-NF65

17.5±1

19.5±1

6.5±0.8

32.5±1

/

120

315

MCT-NF100

22±1

23.5±1

10±0.8

33±1

/

70

235

MCT-NF130

29±1

30±1

13±0.8

32±1

/

120

200

MCT-RC16-13-8

19.5±1

23±1

8±0.8

17±1

23±1

40

85

MCT-RC16-16-8

19.5±1

23±1

8±0.8

19.5±1

/

60

140

EMI filter high permeability ferrite core
