Encapsulated Common Mode Choke Coils Filter Toroidal Inductors

Encapsulated common mode choke is excellent EMI suppressor. It has small profile, large current, low resistance, high frequency and low loss, common mode filter and toroidal inductor.



Hefei Mycoil Technology Co.,TLD produce and design series common mode chokes, according to the shape is divided into vertical and horizontal installation, according to installation PIN were DIP and surface mount (SMD) type, according to the core of the model, divided into toroidal inductor, skeleton type and other types of inductors.


Quick Details

Part Number: MCT Case Potting14C Series Common Mode Choke



Brand name: MCT

Type: Choke Inductor



Custom made: Available

Testing frequency: 1KHz/0.25V



Logo: Can be customized

Operating temperature:-40°C~+105°C.



Shipping: Air, Ship, etc

Certification: ISO9001,ROHS,CE



MOQ: Any quantity

Lead time: 25 days after payment



OEM: Available



Part Information

Product Name: Encapsulated Common Mode Choke Coils Filter Toroidal Inductors

Applications: Low Frequency AC Reactor. PC USB interface cable. Solar Power System. LCD panels. Power Conditioning System. Wind Power System. Automatic Drive Machine. RFI Suppression Choke

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

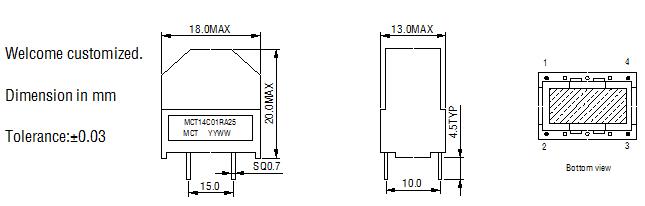

Product Specification

 High quality encapsulated series common mode choke from China


Typical electrical parameter

MCT Part No.

Inductance(mH) min

DC Resistance(Ω)max

Rated Current(A)

MCT14C033A03

33.0

2.00

0.3

MCT14C027A04

27.0

1.60

0.4

MCT14C018A05

18.0

1.10

0.5

MCT14C010A07

10.0

0.80

0.7

MCT14C06RA10

6.80

0.50

1.0

MCT14C04RA12

4.70

0.30

1.2

MCT14C03RA15

3.90

0.13

1.5

MCT14C02RA20

2.20

0.07

2.0

MCT14C01RA25

1.00

0.05

2.5


We can design for you, if you have any requests, please contact us, we will give you fast reply.
