             YX36.5--780 Corrugated Panel Roll Forming Machine


Corrugated Panel Roll Forming Machine


1.Main features of corrugated panel roll forming machine


    The advantages of corrugated roof panel forming machine are as follows:

    1.Products widely used in modern factory,such as workshop,4S auto shop,is a new popular roof panel.

    2.Easy operation, low maintenance cost

    3.Forming steps: 28


2.Detailed Images of corrugated panel forming machine


    Machine Parts

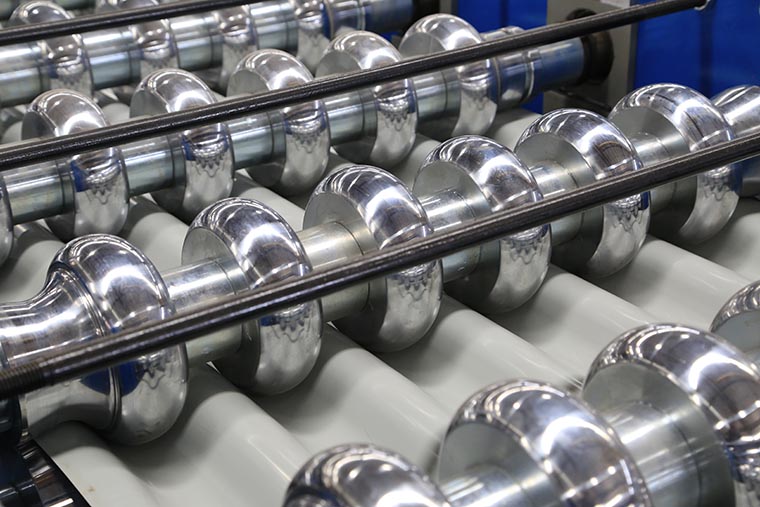

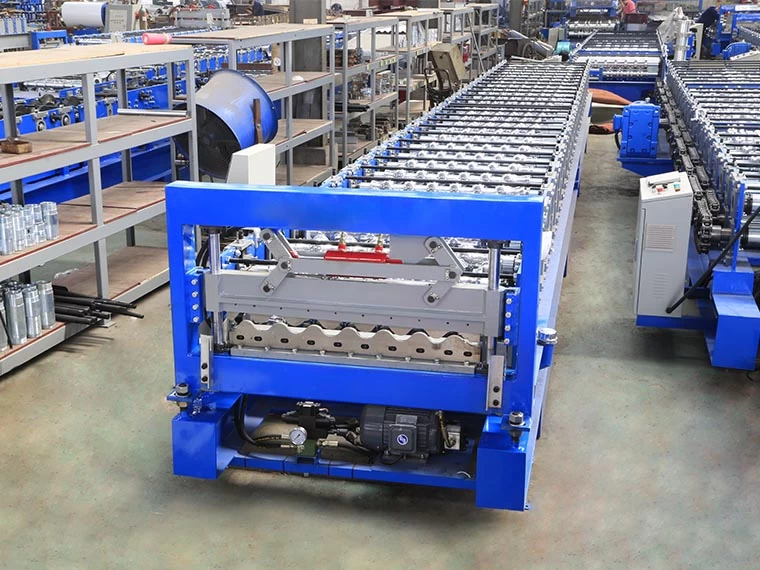

        1)   Corrugated roof panel forming machine rollers

        Brand: BMS    Original: China

        Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.

        With black treatment or Hard-Chrome Coating for options.

        With feeding material guide,Body framemade from 300# H type steel by welding


 Corrugated Sheet Roll Forming Machine

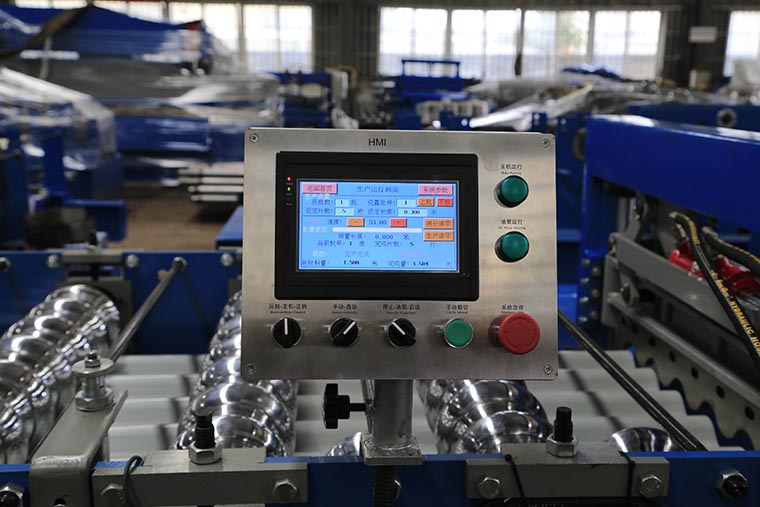

        2) Corrugated roof panel machine touch screen

        easy to operate.


Corrugated Sheet Roll Forming Machine

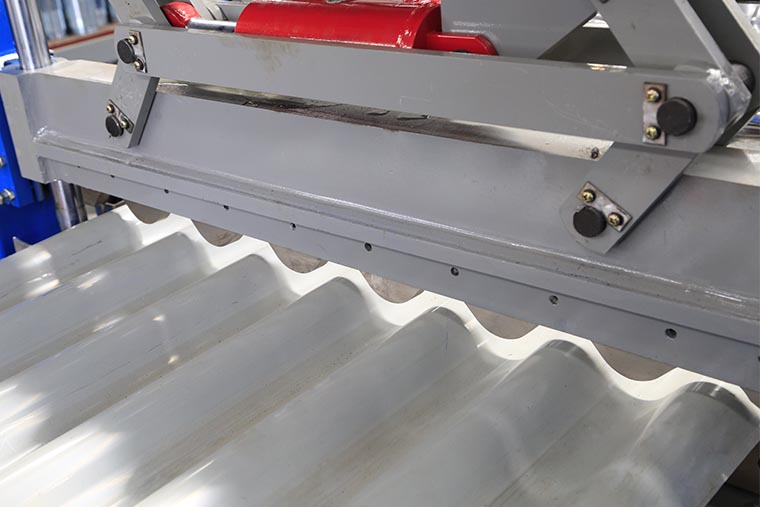

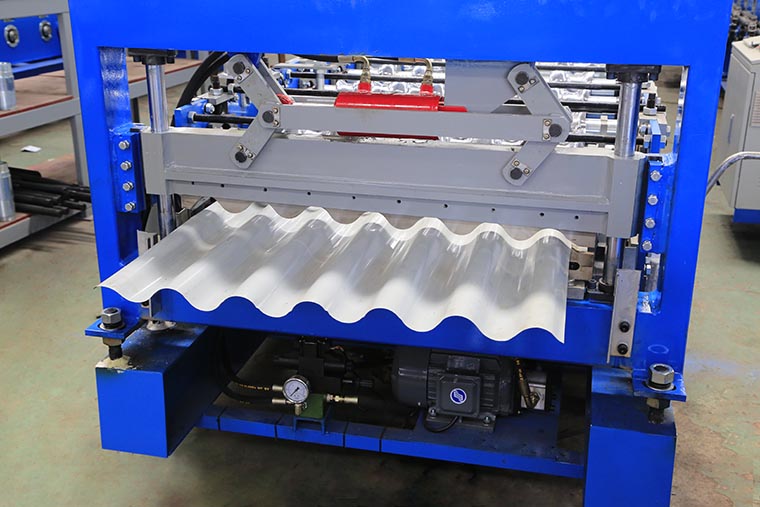

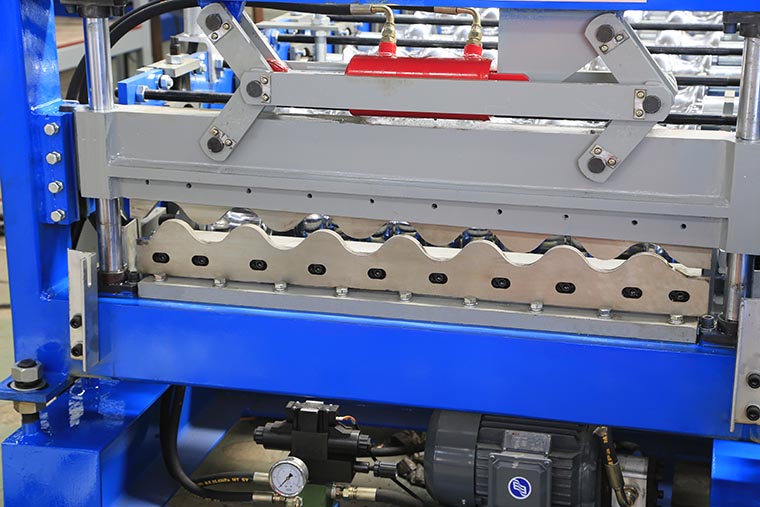

        2Corrugated roof panel machine post cutter

        Cutter frame made from high quality 20mm steel plate by welding

        Post cut, stop to cutting, use the same hydraulic motor drive

        Hydraulic motor: 2.2KW, Hydraulic pressure range: 0-12Mpa

        Cutting tool material: Cr12, Heat treatment


Corrugated Sheet Roll Forming Machine


Corrugated Sheet Roll Forming Machine

Corrugated Sheet Roll Forming Machine

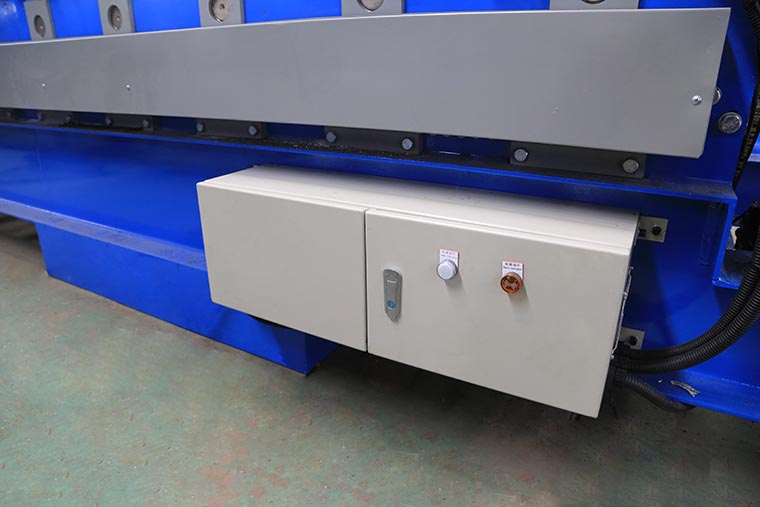

        3) Corrugated roof panel machine control cabinet


Corrugated Sheet Roll Forming Machine

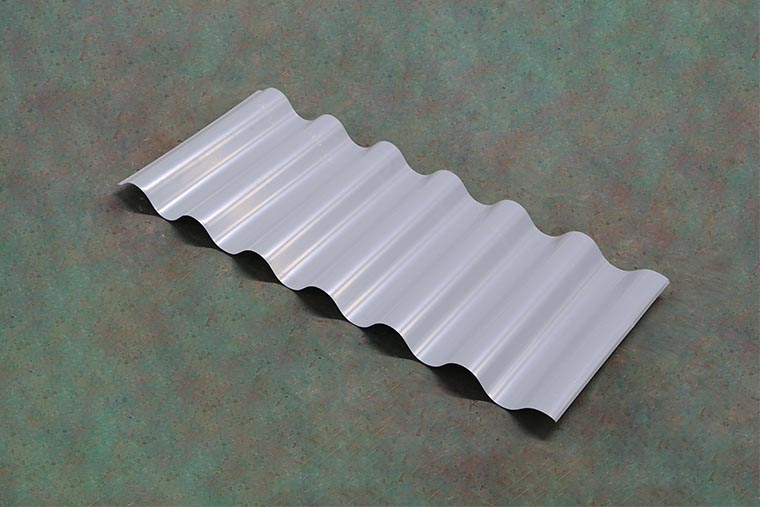

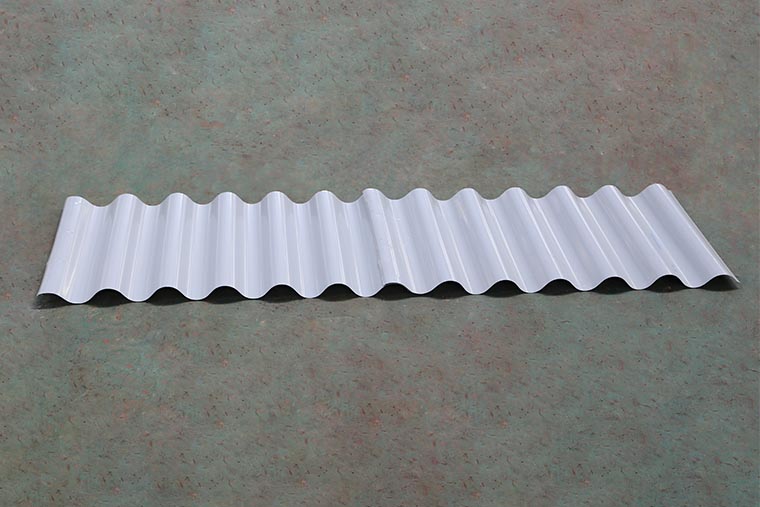

        4) Corrugated roof panel machine product show


Corrugated Sheet Roll Forming Machine


                                                         Overlap Effect


Corrugated Sheet Roll Forming Machine


        5Corrugated roof panel machine decoiler

        Manual Decoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 1000mm, coil ID range 470mm±30mm

        Capacity: Max. 5Ton







        With 6  tons hydraulic decoiler for option




        6) Corrugated roof panel machine exit rack

        Un-powered,three units

Other detailes of corrugated roof panel roll forming machine


Suitable for material with thickness 0.4-0.8mm

Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined

Motor driving,Gear chain transmission, 28 rollers to form

Main motor=5.5KW , Frequency speed control. Forming speed approx.15-20m/min



PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)

Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-length tolerance≤±2 mm

Control Voltage 24V

User's manual in English
