We are the one of the most professional transformer and inductor manufacturer in China. Our factory is made up of 500 people, huge output can be finished every day. Welcome to visit our factory. We produce various coil bobbins and matched magnetic cores. We have a technical team consist of 5 experienced engineers, we can design to meet customer's requirements.
Quick Details
|
Part Number: EQ Type Sendust Cores
|
Brand Name: MCT
|
|
Material: MS for Fe-Si-Al, MSF for Fe-Si
|
Logo: Can be customized
|
|
Type: Sendust core
|
OEM: Available
|
|
Features: Large energy storage capacity
|
MOQ: Any quantity
|
|
Packing: Carton,can be customized
|
Custom Made: Available
|
|
Lead Time: 25 days after payment
|
Certification: ISO9001,ROHS,CE
|
Part Information

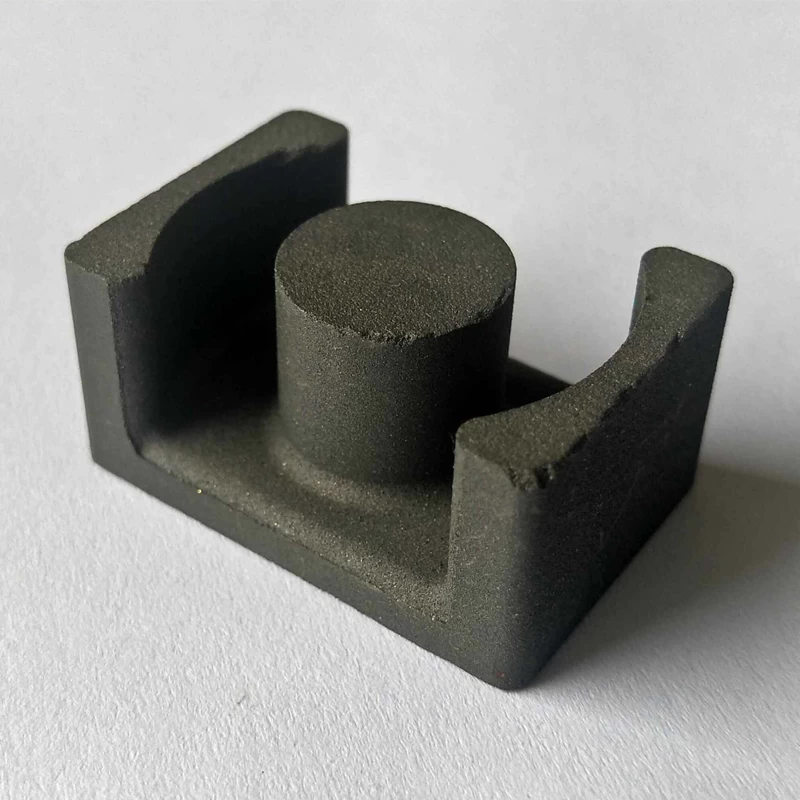

Product Name: EQ Sendust Core For Power Factor Correction Circuits
Applications: AC Reactor for inverter. Power inductor for large current. Buck/Boost inductor for inverter.
Cores Feature: Large energy storage capacity, Excellent DC bias characteristic
All materials are environmental protected. We accept custom made and design service.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Product Details
EQ Series Sendust Core
|
MCT PN
|
Dimensions(mm)
|
Le
cm
|
Ae
Cm²
|
AL(nH±12%)
|
CSC PN
|
|
A
|
B
|
C
|
D
|
E
|
F
|
Ui=26
|
Ui=40
|
Ui=60
|
|
MS-EQ2014A
|
20.5
|
14.0
|
8.1
|
5.7
|
8.8
|
18.0
|
4.52
|
0.608
|
44
|
68
|
101
|
SEQ2014A
|
|
MSF-EQ2014A
|
20.5
|
14.0
|
8.1
|
5.7
|
8.8
|
18.0
|
4.52
|
0.608
|
44
|
68
|
101
|
KEQ2014A
|
|
MS-EQ2014B
|
20.5
|
14.0
|
8.1
|
5.7
|
8.8
|
18.0
|
5.32
|
0.608
|
37
|
57
|
86
|
SEQ2014B
|
|
MSF-EQ2014B
|
20.5
|
14.0
|
8.1
|
5.7
|
8.8
|
18.0
|
5.32
|
0.608
|
37
|
57
|
86
|
KEQ2014B
|
|
MS-EQ2619A
|
26.5
|
19.0
|
10.1
|
6.8
|
12.0
|
22.6
|
5.47
|
1.198
|
72
|
110
|
165
|
SEQQ2619A
|
|
MSF-EQ2619A
|
26.5
|
19.0
|
10.1
|
6.8
|
12.0
|
22.6
|
5.47
|
1.198
|
72
|
110
|
165
|
KEQQ2619A
|
|
MS-EQ2619B
|
26.5
|
19.0
|
12.4
|
9.1
|
12.0
|
22.6
|
6.39
|
1.198
|
61
|
94
|
141
|
SEQQ2619B
|
|
MSF-EQ2619B
|
26.5
|
19.0
|
12.4
|
9.1
|
12.0
|
22.6
|
6.39
|
1.198
|
61
|
94
|
141
|
KEQQ2619B
|
|
MS-EQ3222A
|
32.0
|
22.0
|
10.3
|
6.6
|
13.5
|
27.6
|
6.03
|
1.523
|
83
|
127
|
190
|
SEQ3222A
|
|
MSF-EQ3222A
|
32.0
|
22.0
|
10.3
|
6.6
|
13.5
|
27.6
|
6.03
|
1.523
|
83
|
127
|
190
|
KEQ3222A
|
|
MS-EQ3222B
|
32.0
|
22.0
|
15.2
|
11.5
|
13.5
|
27.6
|
7.99
|
1.523
|
62
|
96
|
144
|
SEQ3222B
|
|
MSF-EQ3222B
|
32.0
|
22.0
|
15.2
|
11.5
|
13.5
|
27.6
|
7.99
|
1.523
|
62
|
96
|
144
|
KEQ3222B
|
|
MS-EQ3626A
|
36.0
|
26.0
|
17.4
|
13.4
|
14.4
|
32.0
|
9.47
|
1.808
|
62
|
96
|
144
|
SEQ3626A
|
|
MSF-EQ3626A
|
36.0
|
26.0
|
17.4
|
13.4
|
14.4
|
32.0
|
9.47
|
1.808
|
62
|
96
|
144
|
KEQ3626A
|
|
MS-EQ4128A
|
41.5
|
28.0
|
19.9
|
15.4
|
14.9
|
36.5
|
11.52
|
1.997
|
57
|
87
|
131
|
SEQ4128A
|
|
MSF-EQ4128A
|
41.5
|
28.0
|
19.9
|
15.4
|
14.9
|
36.5
|
11.52
|
1.997
|
57
|
87
|
131
|
KEQ4128A
|
|
MS-EQ5032A
|
50.0
|
32.0
|
25.0
|
19.5
|
20.0
|
44.0
|
13.34
|
3.141
|
77
|
118
|
178
|
SEQ5032A
|
|
MSF-EQ5032A
|
50.0
|
32.0
|
25.0
|
19.5
|
20.0
|
44.0
|
13.34
|
3.141
|
77
|
118
|
178
|
KEQ5032A
|
