ER Series Power Ferrite Core for Filter Transformer, Pulse Transformer

ER power ferrite core coupling position is good,center column is circular,easy to winding and increase winding areas,used in large power small leakage inductance transformer.



Quick Details

Part Number: ER Series Ferrite Core

Brand Name: MCT

Material: Mn-Zn/Ni-Zn ferrite core

Logo: Can be customized

Type: Power core  High permeability

OEM: Available

Core Materials: M10P, M7P, M5P, MP4

MOQ: Any quantity

Packing: Carton, can be customized

Custom Made: Available

Lead Time: 25 days after payment

Certification: ISO9001,ROHS,CE



Part Information

Product Name: ER Series Power Ferrite Core for Filter Transformer, Pulse Transformer

Products Range: Electronic transformers, filter inductors, choke coils, bobbins, relays, magnetic cores.

Applications: High-frequency switching power transformers. Matching transformer. Filter transformer. Pulse transformer. Electronic ballasts.

Advantages: Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.



Product Details

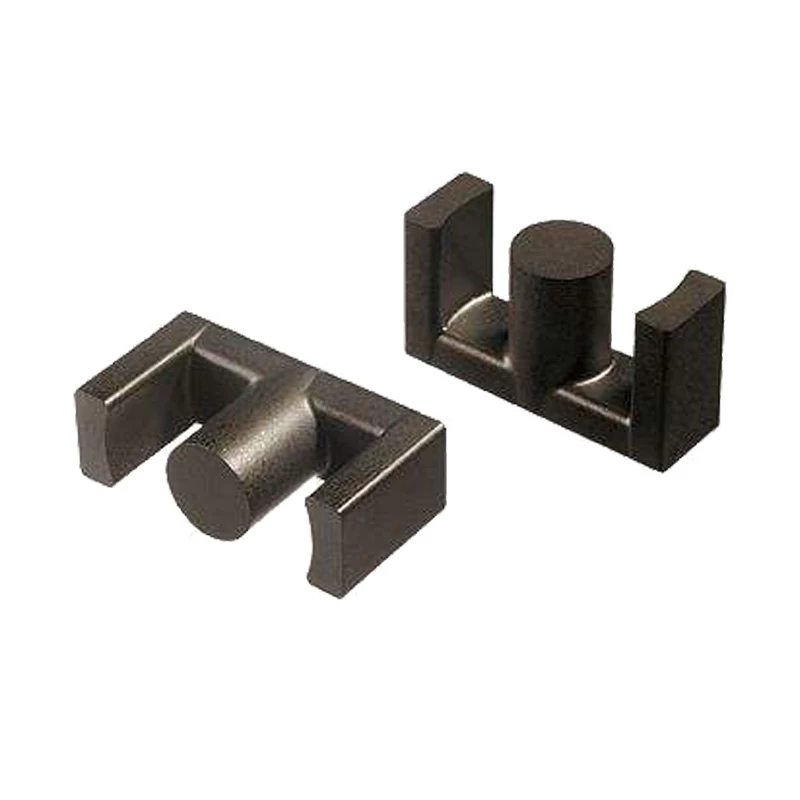

ER series ferrite core for electronic transformers and inductors

ER Ferrite Core for Switching Power Supply Transformers

TYPE

Dimension:mm

Weight:g

A

B

C

D

E

F

ER7.5

7.50±0.15

2.50±0.05

4.5±0.1

6.22

2.65±0.15

1.75±0.05

0.75

ER9.5

9.35±0.15

2.45±0.05

4.9±0.1

7.5+0.25

3.40±0.1

1.68±0.08

0.96

ER11/5

10.8±0.25

2.45±0.1

5.9±0.2

8.70

4.40±0.15

1.60±0.15

1.0

ER14.5/6

14.5±0.2

2.95±0.05

6.7±0.1

11.8±0.2

4.70±0.1

1.65±0.1

2.0

ER22

22.0±0.4

14.7±0.3

6.65±0.15

15.5

6.65±0.15

10.7±0.3

15.0

ER28

EC28

28.0±1.1

14.0±0.25

11.4±0.25

21.2

9.9±0.25

9.65±0.25

28.0

ER28L

28.02±1.1

16.9±0.25

11.4±0.25

21.2

9.9±0.25

12.25±0.55

33.0

ER35

EC35

35.0±0.7

20.7±0.25

11.3±0.25

25.6

11.3±0.25

14.7±0.3

52.0

ER39

EC39

39.3±0.5

22.7

12.8±0.3

28.6

12.8±0.2

17.0±0.3

62.5

ER40

EC40

40.0±0.6

22.4±0.4

13.3±0.2

29.0

13.3±0.3

15.4±0.2

78.0

ER42

EC42

42.0±0.8

22.0±0.5

15.2±0.2

30.5

15.2±0.2

15.4±0.3

102.0

ER49

EC49

49.0±0.8

19.0±0.3

17.2±0.4

36.4

17.2±0.25

12.4±0.2

110.0

ER53

53.2±0.8

23.2±0.5

21.5±0.3

38.7

20.0±0.2

32.6±0.5

178.0


TYPE

Effective parameter

ALnH/N2)(AL±25%

C1

(mm-1)

Ae

(mm2)

Le

(mm)

Ve

(mm3)

MP4

M5P

M7P

M10P

ER7.5

2.28

5.85

13.3

73.3

680

ER9.5

1.67

8.47

14.2

120

610min

ER11/5

1.23

11.9

14.7

174

960

ER14.5/6

1.08

17.6

19

333

1600

ER22

1.665

37.5

62.4

2340

1450

ER28

EC28

0.784

82.1

64.0

5257

2990

ER28L

0.924

85

78.3

6640

2660

ER35

EC35

0.820

113

92.2

10400

2800

ER39

EC39

0.792

130

103

13380

3500

ER40

EC40

0.656

149

98.0

14587

3890

ER42

EC42

0.547

183

96.3

17622

4500

ER49

EC49

0.395

231

91.3

21100

6250

ER53

0.338

319.5

105.9

33835

6200
