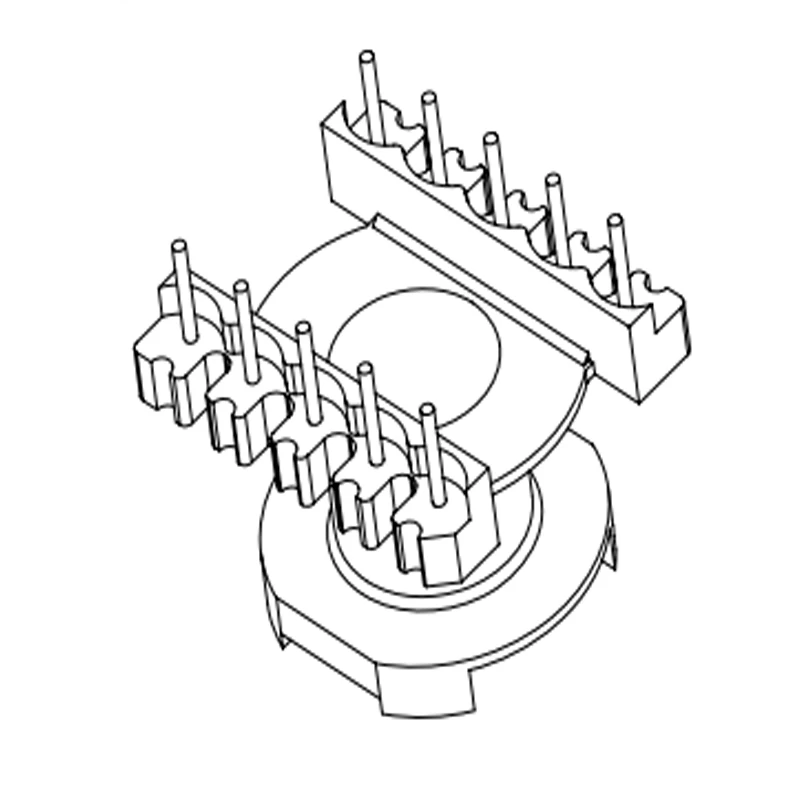

ER28 Ferrite Core High Frequency Bobbin 5+5 Pin

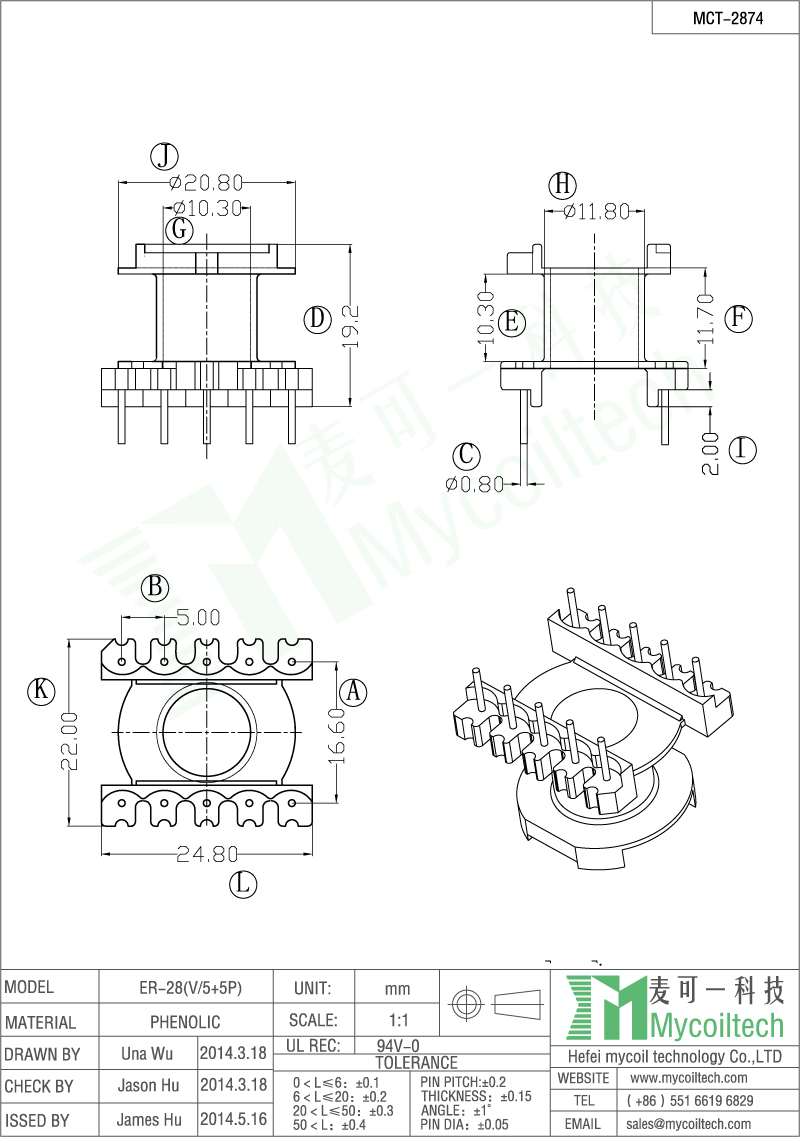

Vertical bobbin ER28. 5+5 pins ER28 bobbin. Bobbin Size=24.8mmX22.0mmX19.2mm. Pin Pitch=5.0mm. Parallel Distance=16.6mm. We can make bobbin tooling. DIP bobbin. Phenolic transformer bobbin. UL REC:94V-0



Hot selling transformer bobbins, good quality and low price, we are professional bobbin factory. We manufacture various high frequency transformers, inductors, precision current transformers, we accept custom design, samples can be provided for testing.


Quick Details

Part No: MCT-2874

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: ER28 Ferrite Core High Frequency Bobbin 5+5 Pin

Product Range: Transformers, inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, inductors, coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu



Product Specification

5+5 pin ER28 coil bobbin
