ER40 Vertical Electric Transformer Bobbin DIP Coil Former

8+8 pins ER40 DIP coil former. Vertical ER bobbin.

Parallel Distance=25mm. Pin Pitch=5.0mm. UL REC:94V-0

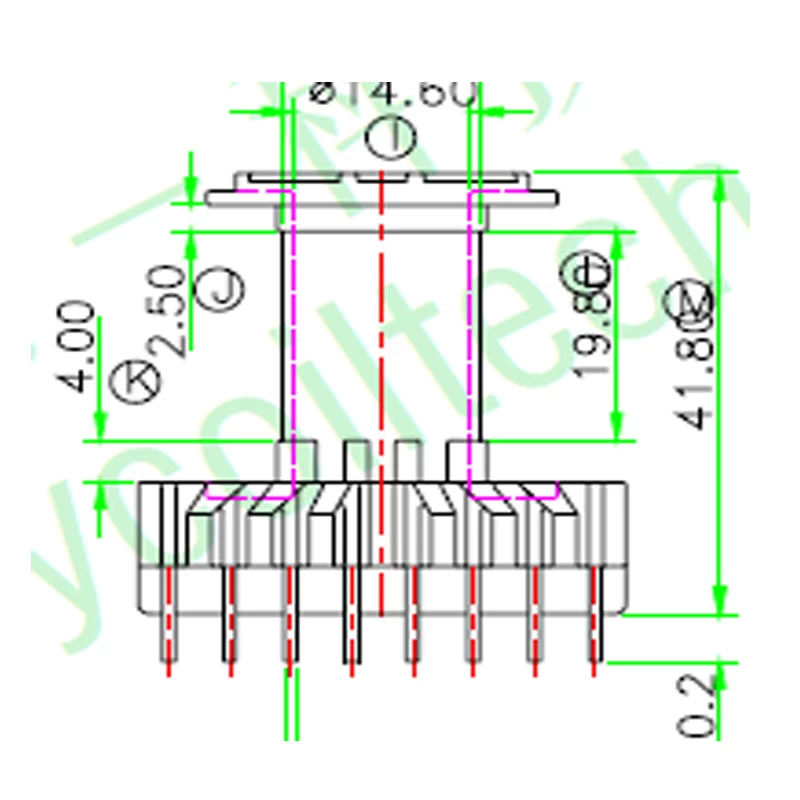

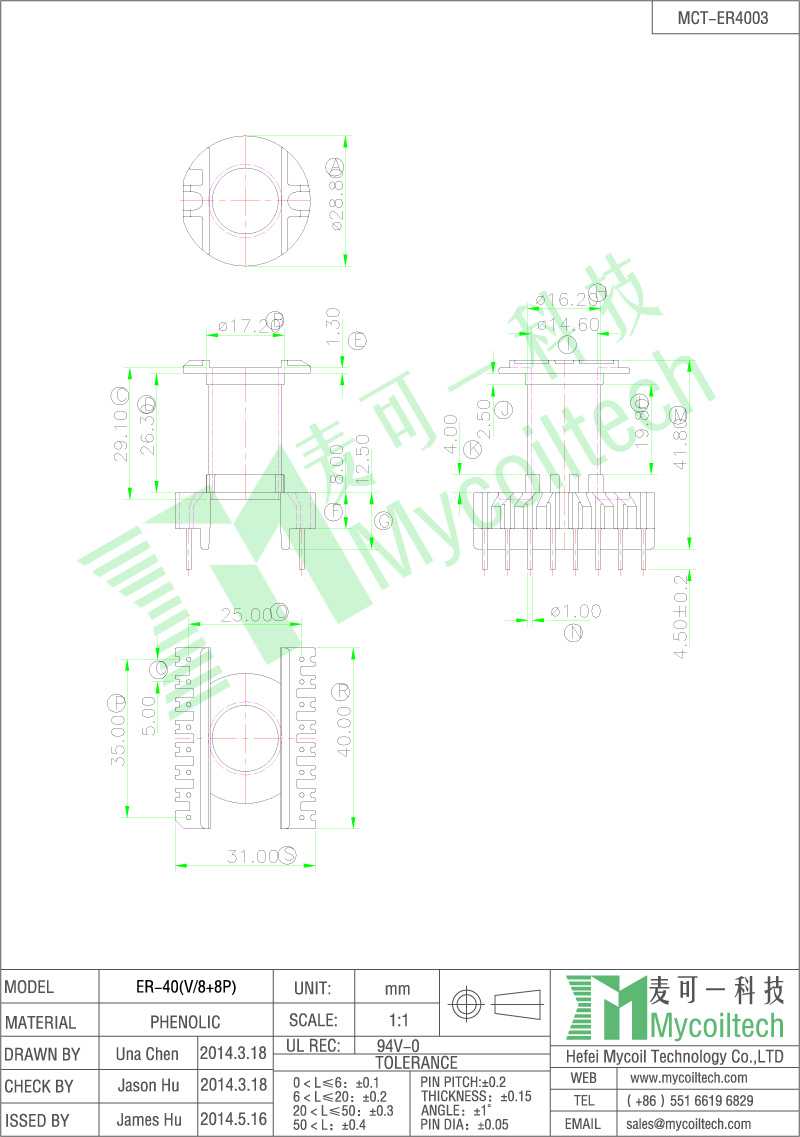

Bobbin Size=40mmX31mmX41.8mm. ER40 phenolic bobbin.



High quality coil former8+8 pins ER40 horizontal bobbin. We accept custom design , if you are interested in our bobbin products, welcome to contact us!


Quick Details

Part Number: MCT-ER4003(V8+8P)

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: ER40 Vertical Electric Transformer Bobbin DIP Coil Former

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu



Product Specification

16 pins ER40 Power charge transformer bobbin factory
