ET20 Power Indcutor Bobbin Choke Coil Horizontal Base

ET20 common mode choke base. 2+2 pins ET20 horizontall bobbin base. Base Size=21mmX21mmX12.2mm. ET/UT20 phenolic material bobbin base. Pin pitch=14mm. We can make tooling to meet different dimensions. UL REC: 94V-0



High quality common mode choke base, ET20 horizontal bobbin base, fast delivery time, samples order acceptable, welcome for customized products.


Quick Details

Part No: MCT-ET20-BASE08

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: ET20 Power Indcutor Bobbin Choke Coil Base

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

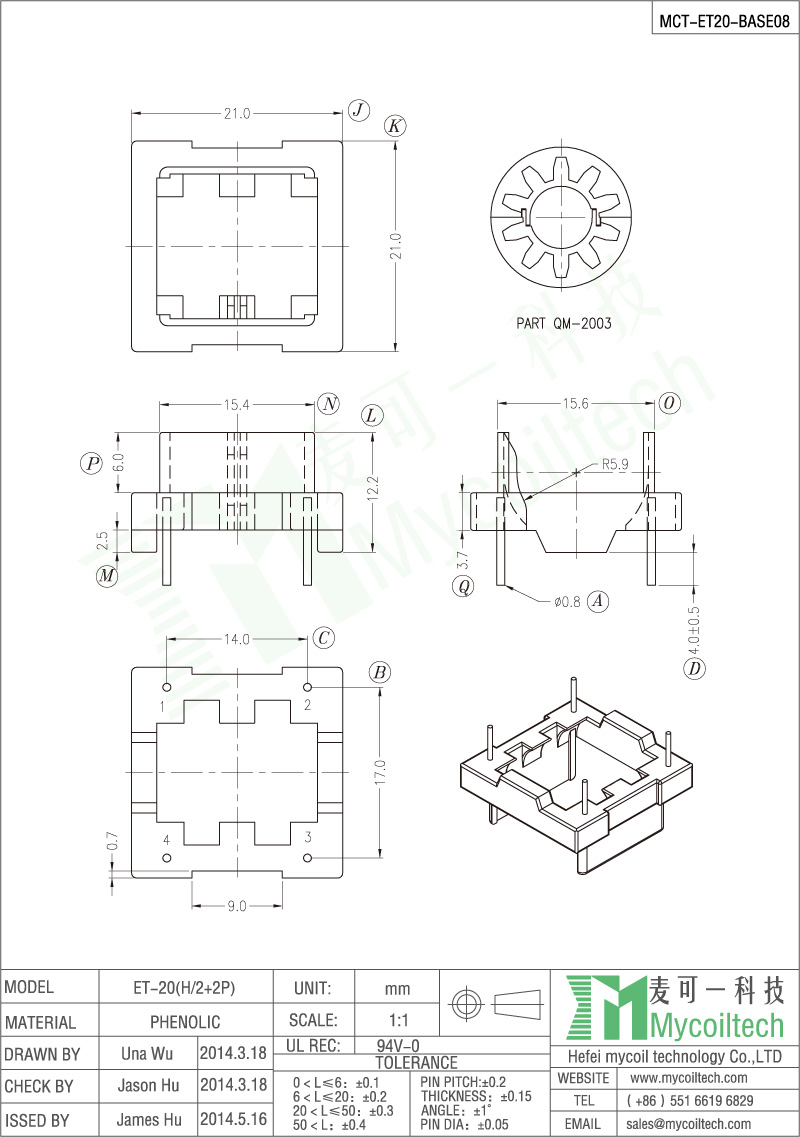

Product Specification

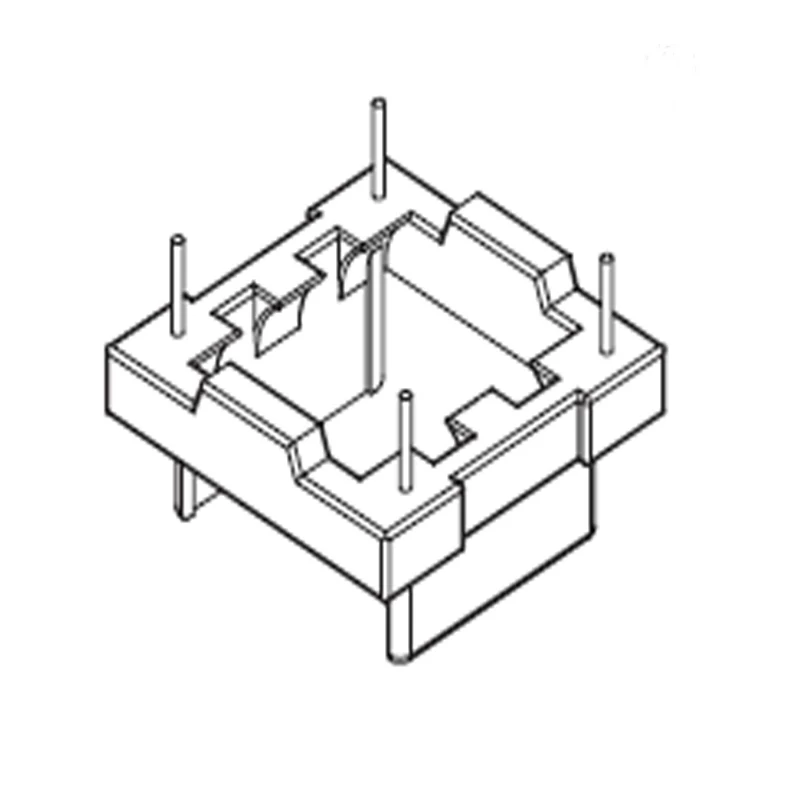

Power inductors horizontal base
