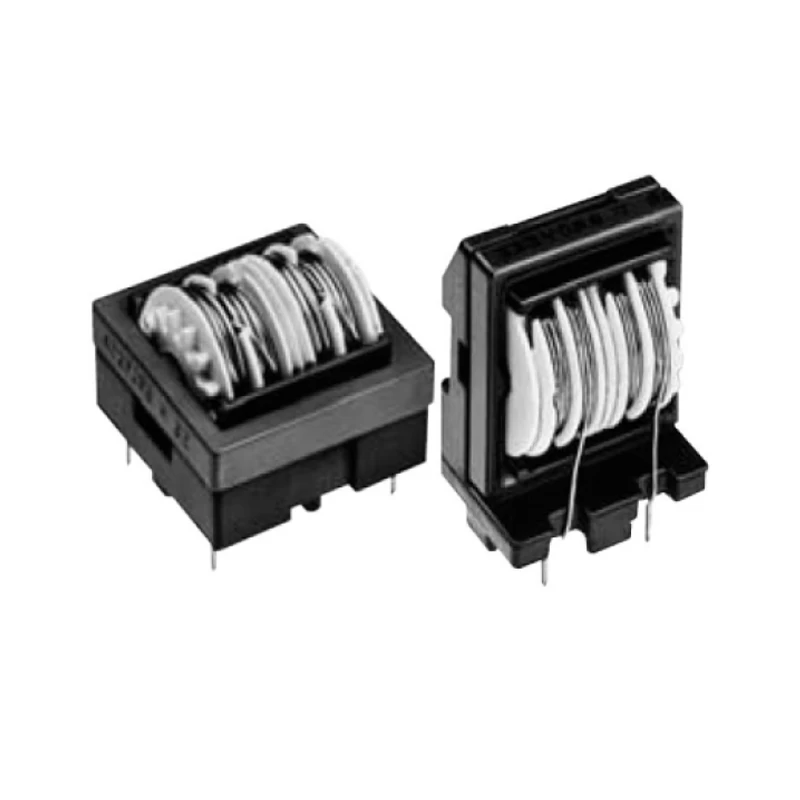

ET24 Common Mode Choke Coils 2.4 To 68mH Inductance

ET24 series common mode chokes are designed in using common mode choke coil structure to enable nice noise suppression.



ET24 common mode chokes or coils with 2.4~68mH inductance, always used to block AC while allowing DC to pass, inductors designed for this purpose are called chokes. They are also used in electronic filters to separate signals of different frequencies, and in combination with capacitors to make tuned circuits, used to tune radio and TV receivers.


Common mode chokes are applied in electromagnetic interference (EMI) currents, function telephones, AC adapters, VCRS, switching power supply and etc. If you are looking for ET24 common mode choke inductor, you can find our products by different electrical parameters, such as inductance, impedance, rated current and DCR. We also can design as your requirements, you just offer us your specification or drawings.


Quick Details

Part NoET24 Series Common Mode Choke


Brand name: MCT

Working frequency range:20kHz-500kHz


Custom made: Available

Operating temperature range: -40~+125


Logo: Can be customized

Storage temperature: +85~-25


Packing: Carton,can custom

Storage humidity: 30 to 95%


Certification: ISO9001,ROHS,CE

Inductance range: 2.4mH~68mH


OEM: Available

Rated current:0.4~2.5   50Hz(A)


Shipping: Air, Ship, etc

DC resistance: 0.09Ω~2.3Ω    @25°C


MOQ: Any quantity

Shape type: horizontal, vertical  Weight≈19.5g


Lead time: 25 days after payment


Part Information

Product Name: ET24 Common Mode Choke Coils 2.4 To 68mH Inductance

Applications: Switching power supply, Lighting equipment, Data transmission, Wind generators, Frequency Converter.

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Advantages:Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.

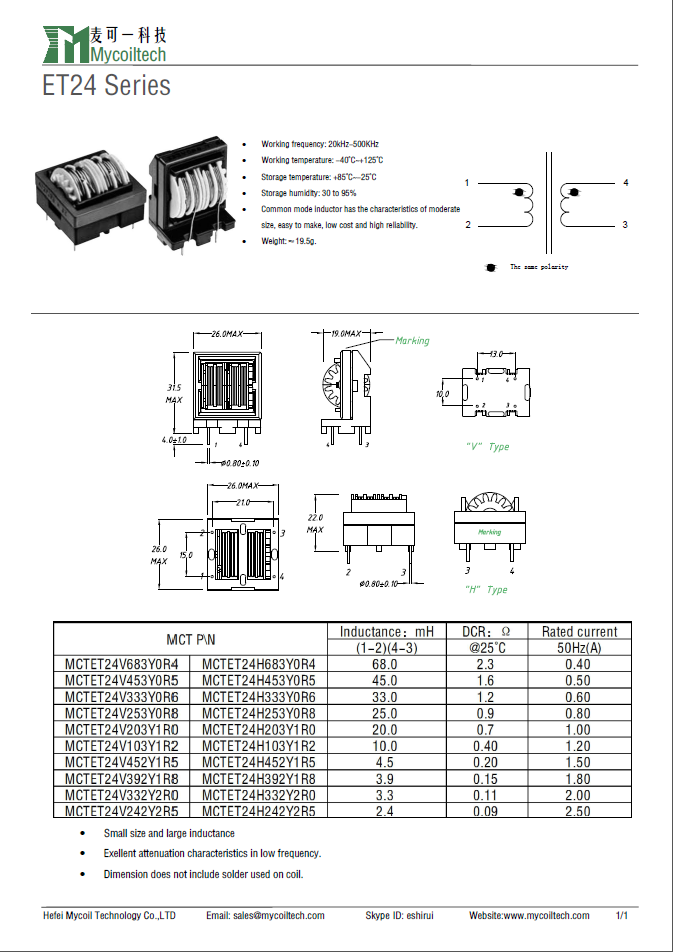

Product Specification

 ET24 Common Mode Choke EMI Filter


If you have any questions, please contact us or leaving your comments, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Lily Yu
