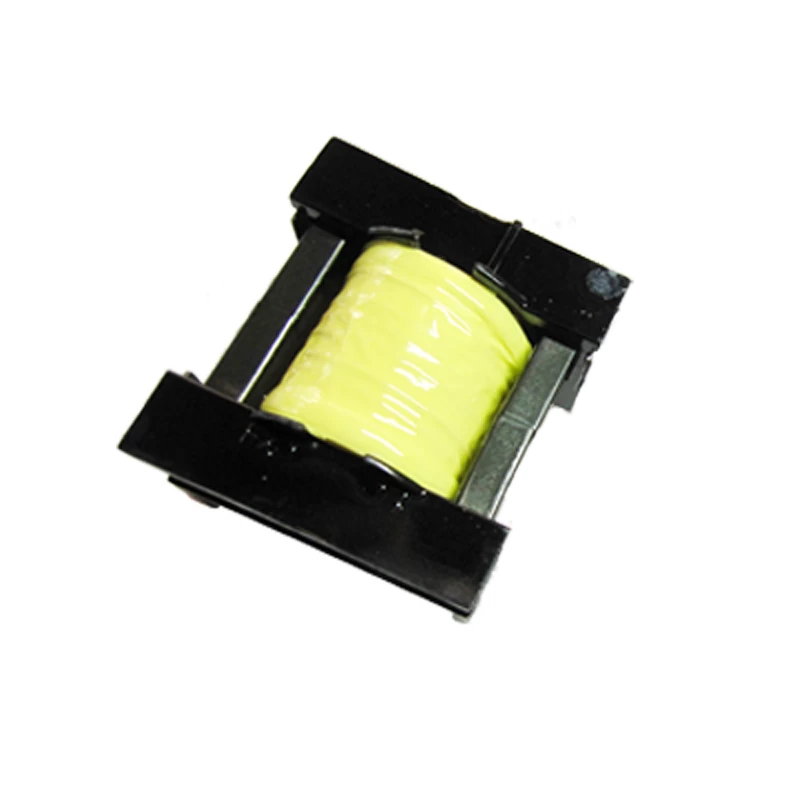

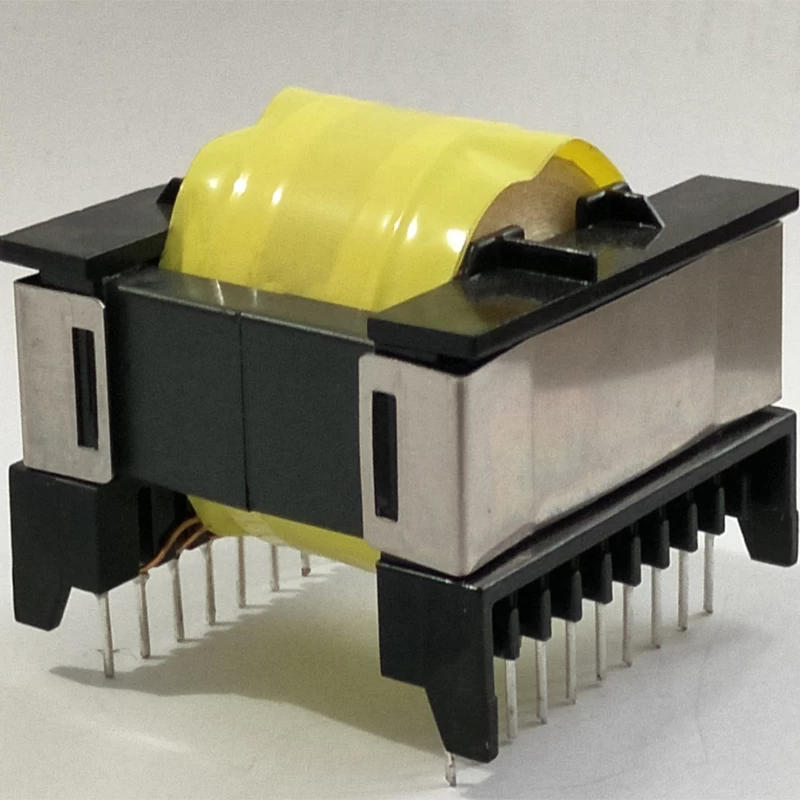

ETD49 10+10 Pin Horizontal High Frequency Switch Mode Power Transformer

ETD49 horizontal switching mode power transformer. Switch power supply transformer ETD49 ferrite cores. It has high permeability and high saturation magnetic flux density. Different circuit will use many possibilities for quick prototyping. We can design to meet different applications.



New designing ETD49 flexible SMPS transformer, horizontal bobbin 10+10 pins with ferrite core, we can design and make samples for the testing, if you have any requests, welcome to contact us.


Quick Details

Part No: Flexible SMPS-Transformer ETD49

Brand name: MCT

Insulation test voltage: 3750V

Custom made: Available

Low leakage inductance

Logo: Can be customized

Transformer with multi-winding

Packing: Carton, can custom

Operating temperature -40°C~+125°C

MOQ: Any quantity

Certification: ISO9001,ROHS,CE

OEM: Available

Lead time: 25 days after payment

Shipping: Air, Ship, etc


Part Information

Product Name: ETD49 10+10 Pin Horizontal High Frequency Switch Mode Power Transformer

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: Flyback converters. Forward converters. Push-pull converters. Step-Up/Step-down converters. Sepic converters(single ended primary inductor converter)

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

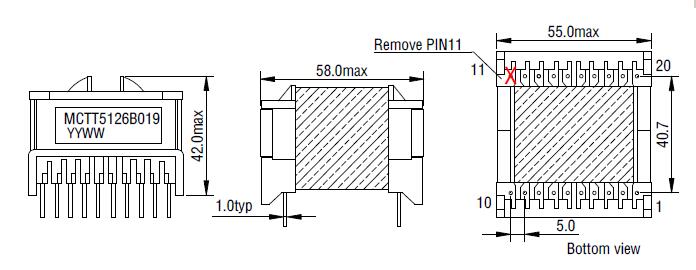

Product Specifications

RoHS Certificated ETD39 High Frequency Power Transformer

Electrical Data and Part Number(PN)

L1 in uH

Lin A

Lsat in A

DCR/

MCT PN

50

30

35

15

MCTT5126B019


If you have any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

TEL: +86 551 6619 6829
