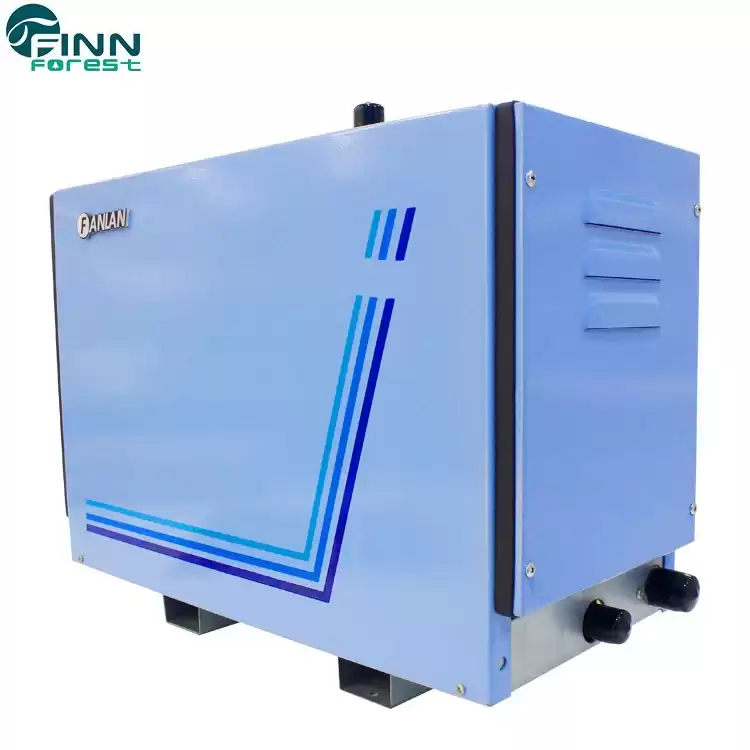

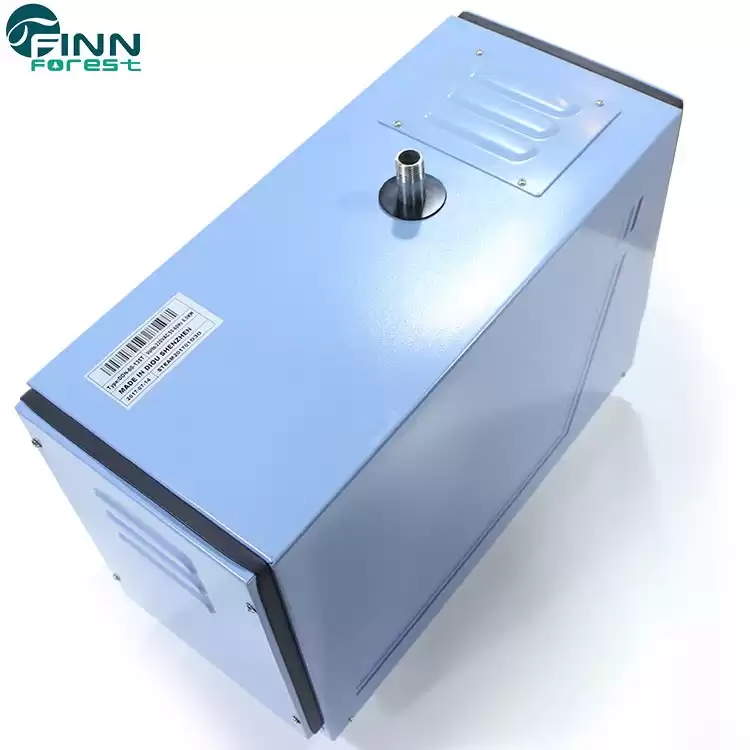

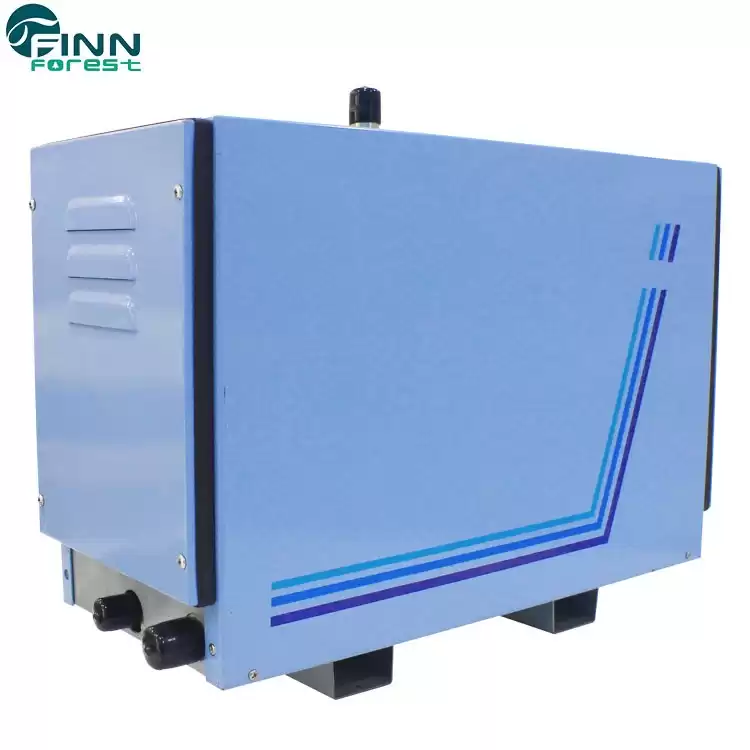

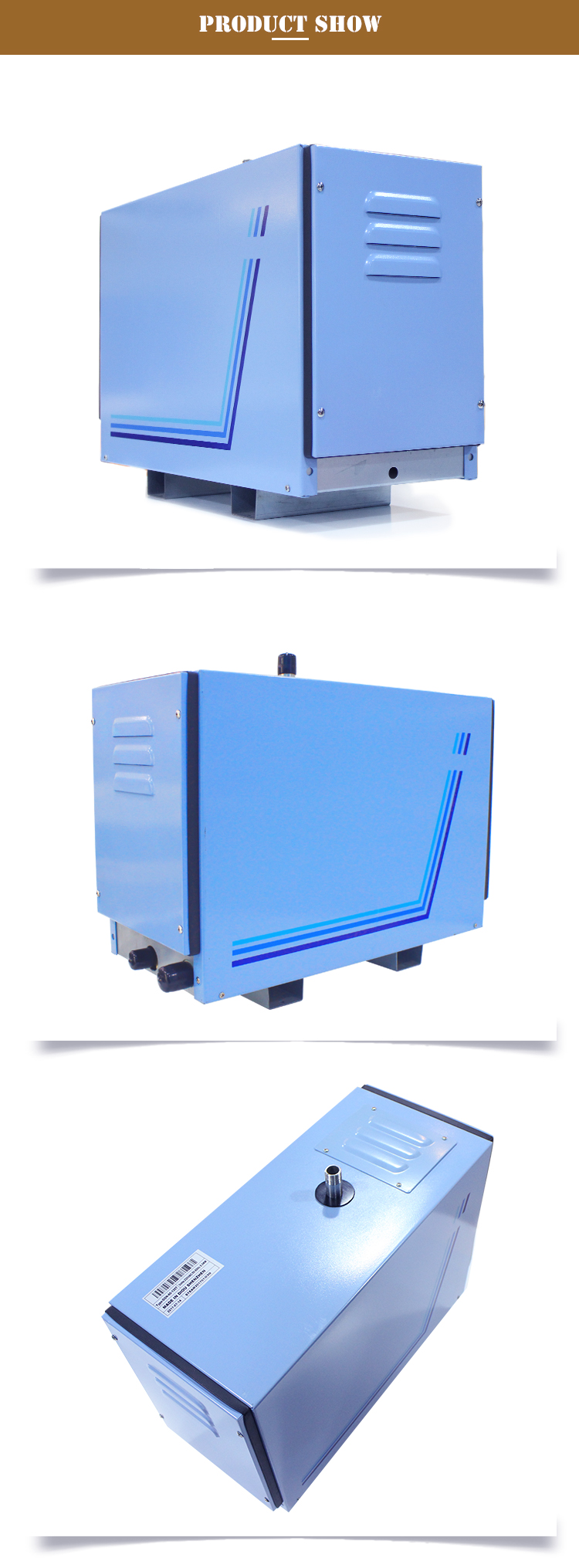

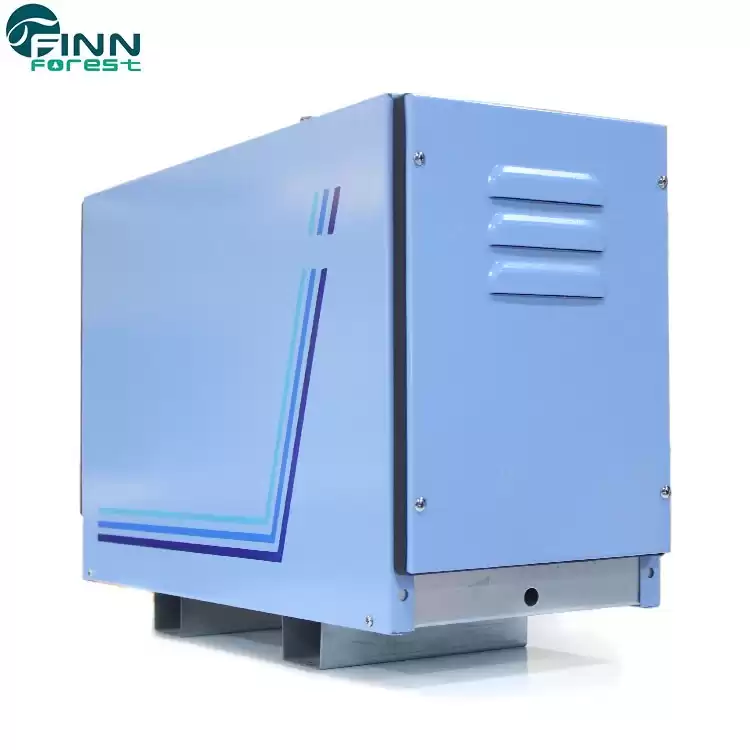

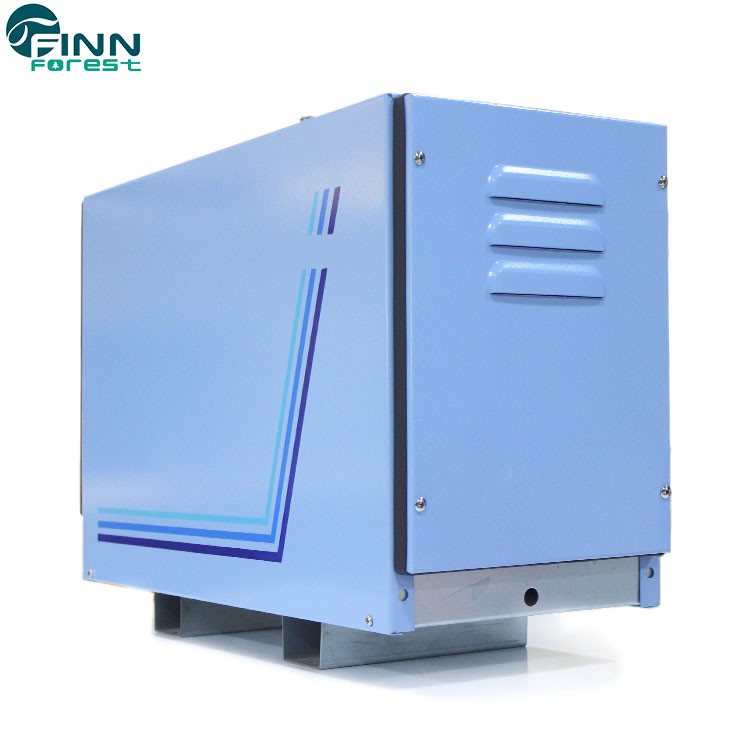

External Control Adjustable Sauna Steam Generator For Sale
How does the sauna generator work? Its working principle is to generate and emit hot steam that can be used to bathe the body by heating water. It needs electricity to function, and is usually used in bathroom fences to keep steam inside.
Sauna Steam Generator Parameters:
| Model |
Power（kw） |
Voltage（V） |
Current（A） |
Phase（N-） |
Volume（M3） |
AWG |
Dimensions |
Gross Weight |
| FAA-45 |
4.5 |
200-240 |
20 |
1 |
3-5 |
3*10 |
530*225*410 |
14 |
| 380-415 |
7 |
3 |
5*14 |
| FAA-60 |
6.0 |
200-240 |
27.3 |
1 |
6-7 |
3*8 |
| 380-415 |
9 |
3 |
5*13 |
| FAA-90 |
9.0 |
200-240 |
41 |
1 |
10-12 |
3*7 |
| 380-415 |
14 |
3 |
5*11 |
| FAA-105 |
10.5 |
380-415 |
16 |
3 |
12-15 |
5*11 |
530*225*470 |
19 |
| FAA-120 |
12.0 |
380-415 |
15 |
3 |
15-18 |
5*10 |
| FAA-150 |
15.0 |
380-415 |
23 |
3 |
18-21 |
5*9 |
| FAA-180 |
18.0 |
380-415 |
27.3 |
3 |
21-25 |
5*8 |
Sauna Steam Generator Feature：
1）Working time setting:30 minutes to 8 hours
2）Temperature setting：35-55℃（95-131℉）
3）Protection of water shortage
4）Over-high temperature protection
5）Over-high pressure protection，prevent tank from expanding，in the case steam head has been blocked
6）Light system control
7）Long distance signal transmission，the longest distance can be 50m
8）The tank material is 304# stainless steel
9）New steam nozzle prevent user from scald
10）The universal wire connection
11）New strong draining system，and auto-back flush，wipe out scale completly，enlarge the service life extremely
12）The unique dual protection，water inflow once power on，so that prevent heating element from dry burning at beginning

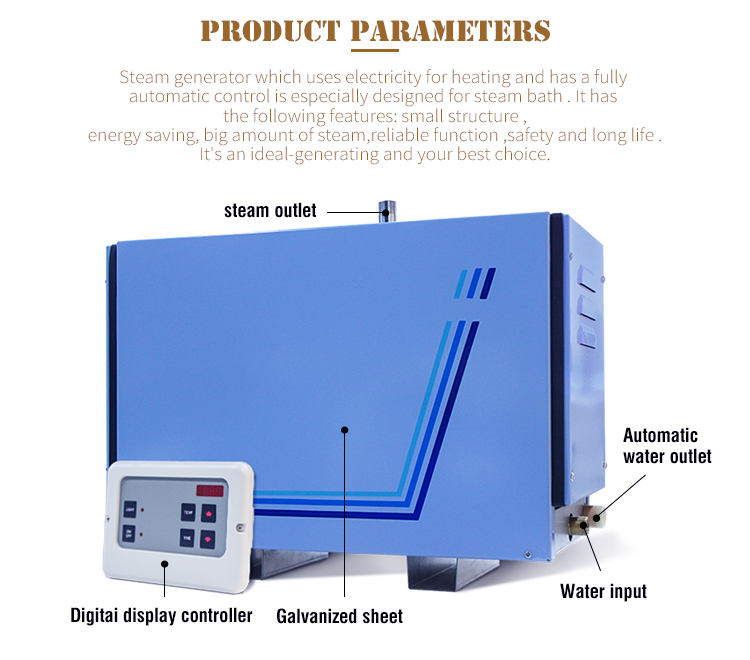

Sauna steam generator product details:
1) Water inlet: new ground drainage system, automatic backwash function, completely eliminate scale and prolong the service life of electric heating tube
2) Exhaust valve: humanized design, easy to use

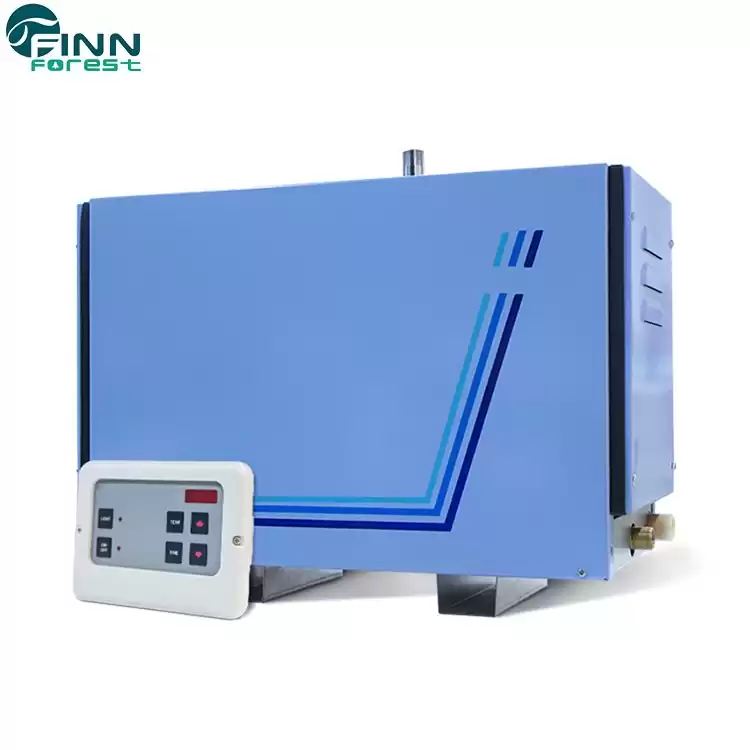

3) ST-132 external controller: attractive appearance, comprehensive functions and simple operation
Why are sauna steam generators important?
Sauna steam generators are ideal for on-demand situations. They are smaller and easier to start up compared to steam boilers and, thus, may be used as auxiliary boilers. Generators usually do not have the same maximum capacity as fuel fired boilers, so they are best for applications that require point of use dry steam.
In some processes, using a sauna steam generator instead of a steam boiler provides fuel economy with 5-10% depending on the type of operation.
The efficiency of modern design steam generators is 90-92%. The efficiency of the steam generators installed with economizer varies between 95-98%.
Depending on the increase in efficiency, less fuel is used for the same capacity or more heat is produced for the same amount of fuel.
It is the most economical solution for businesses that want to reduce manufacturing costs due to the high fuel prices.
As a professional sauna steam generator supplier , fenlin provides high quality steam generator, with strict quality control for the products, Fenlin has a large factory in China, providing you with a wide range of choices, we guarantee to give you first-class product quality and service. High quality steam generator can be supplied in bulk, shipped directly from the factory, only the factory price
