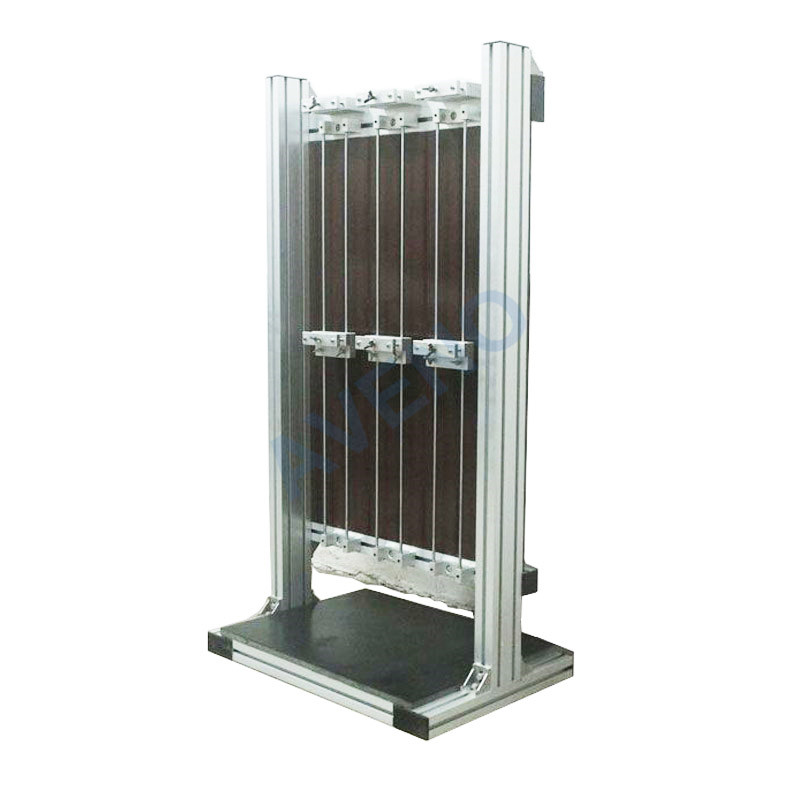

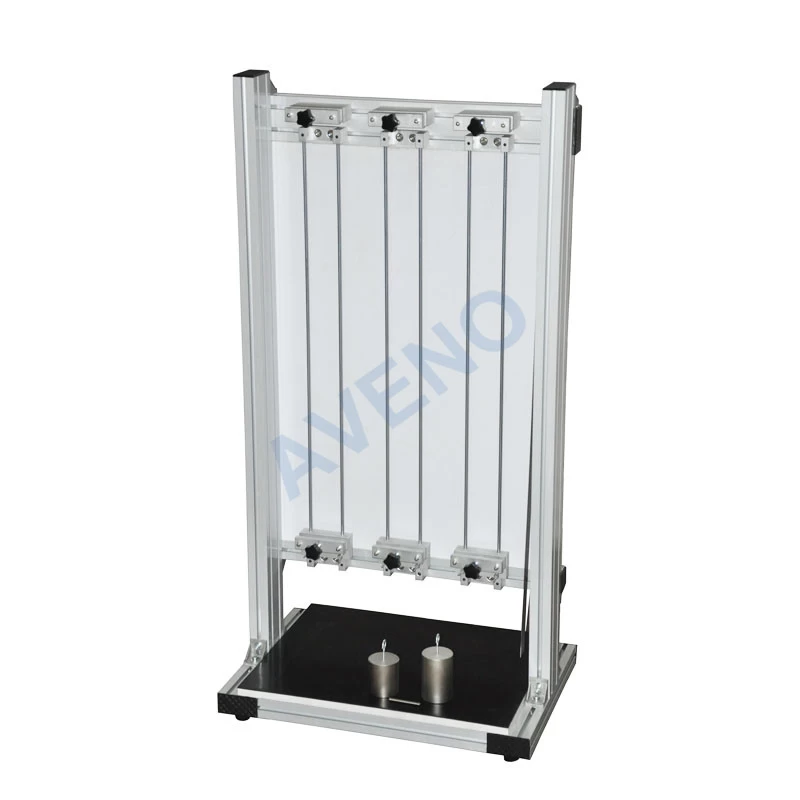

AG38-Fabric Stretch & Recovery Tester
Application Of Fabric Stretch & Recovery Tester
Fabric Stretch & Recovery Tester is suitable for testing the elastic recovery performance of fabric under two modes (fixed force, fixed length).
Feature Of Fabric Stretch & Recovery Tester
-
Fixed force method: clamp the upper end of the sample in the upper fixture, lower end of sample hanging the load weight, loading 4 times, then test the recovery performance of sample.
-
Fixed length method: clamp the upper end and lower end of the sample in the upper and lower fixture, moving lower fixture to stretch a specimen for a certain length and keep a certain time, then check the recovery performance of sample.
Standards Of Fabric Stretch & Recovery Tester
ASTM D3107, ASTM D2594(option)
Key Specification Of Fabric Stretch & Recovery Tester
|
Model
|
AG38 Fabric Stretch & Recovery Tester
|
|
Test Standard
|
ASTM D3107
|
ASTM D2594
|
|
Test position
|
3
|
|
Sample size
|
65mmx560mm
|
|
Load weight
|
3LB and 4LB
|
5LB and 10LB
|
|
Fixture width
|
6mm
|
140mm
|
|
Dimension
|
70x120x50cm
|
|
Weight
|
35kg
|
Accessories Of Fabric Stretch & Recovery Tester
|
Standard Accessories
|

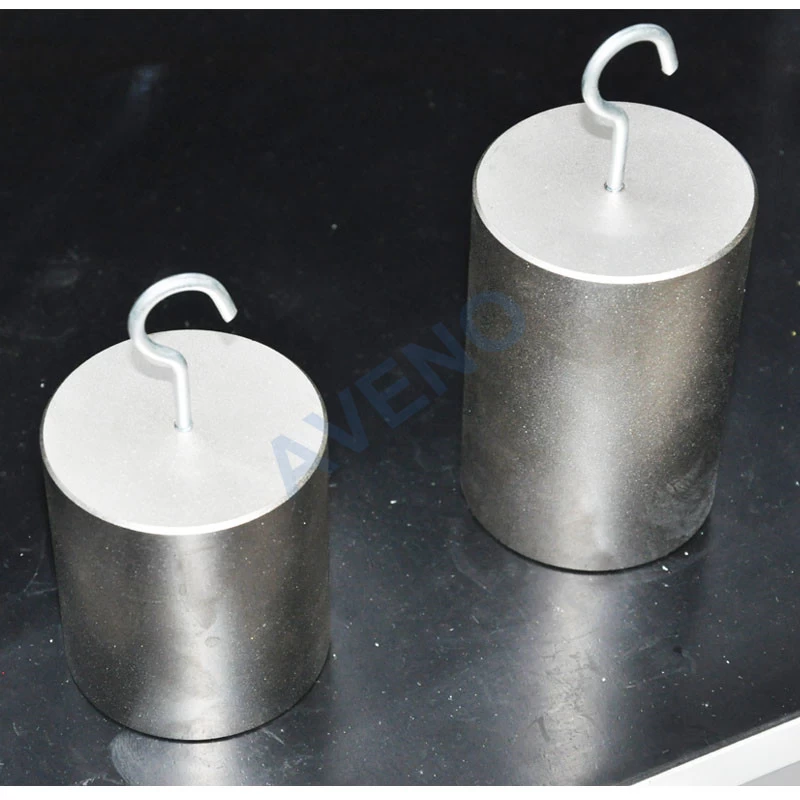

Load weight
(ASTM D3107 or 2594 option)
|
1set
|
|
Steel ruler
|
1pc
|
|
Hook pin
|
1set
|
|

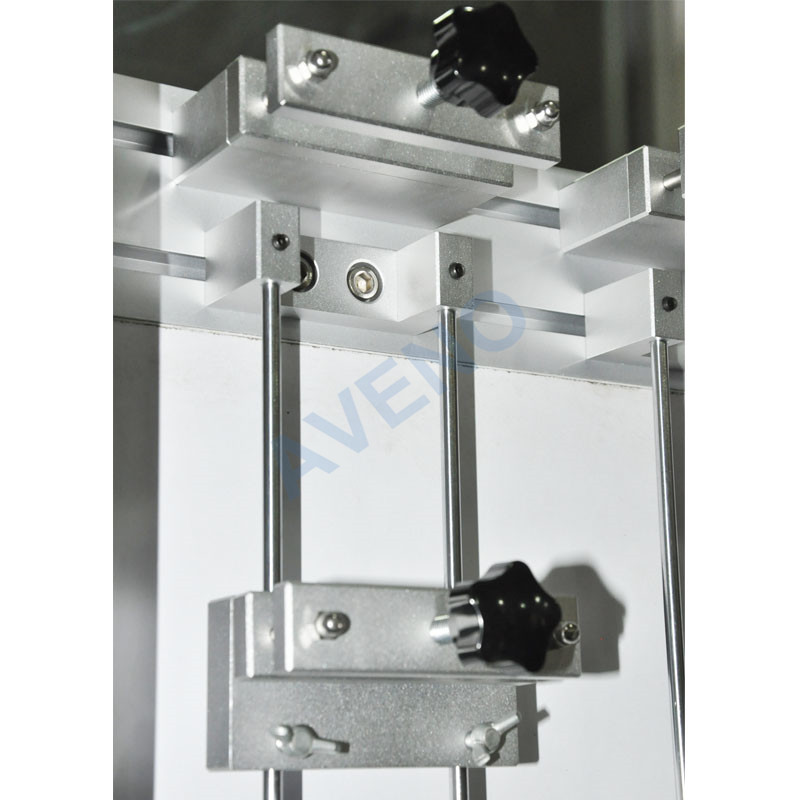

Fixture for (ASTM
D3107 or 2594)
|
1set
|
|
Option Accessories
|
Load weight
(ASTM D3107 /
2594)
|
|
