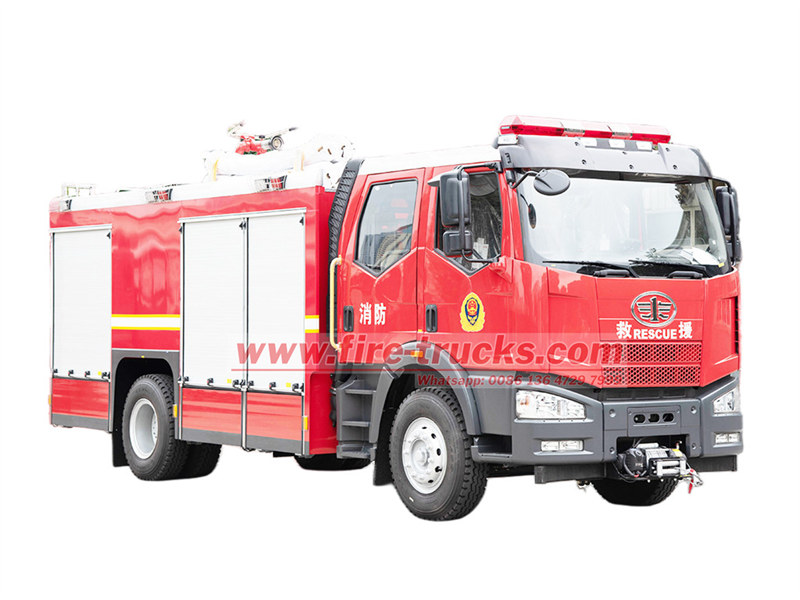

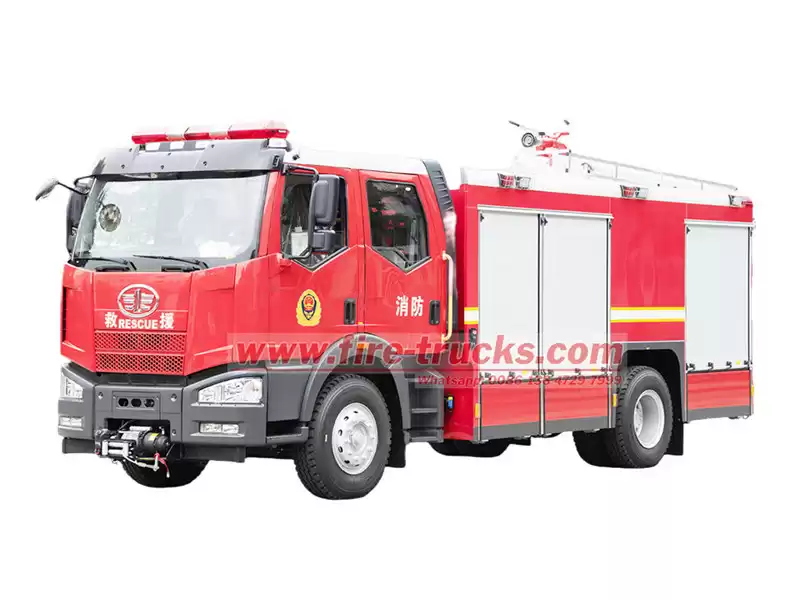

FAW 6000L water fire tender

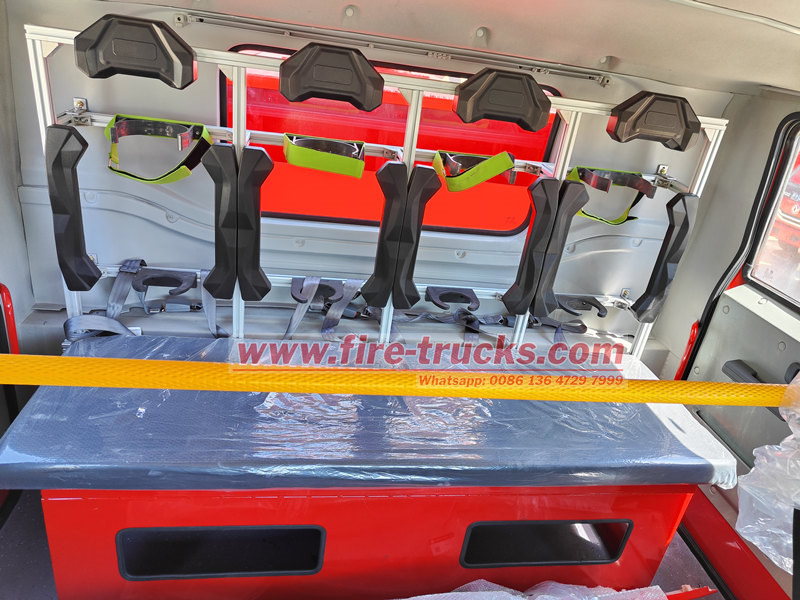

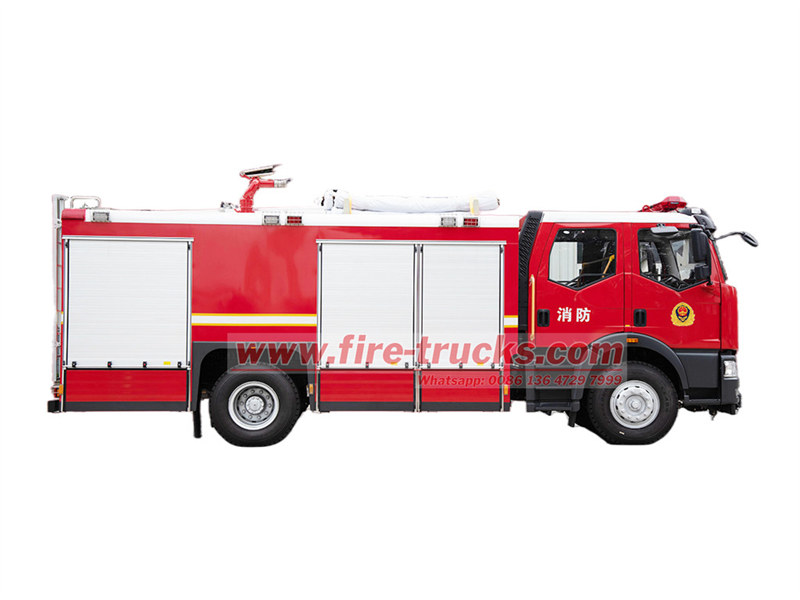

The FAW 6000L Water Fire Truck is a high-performance professional firefighting vehicle modified on the FAW CA1180P6 chassis, specifically designed to meet the demands of various firefighting scenarios. This fire truck adopts a classic single-to-double-row crew cabin structure, accommodating 2+4 firefighters, achieving a perfect balance between personnel transport and equipment carrying. The vehicle's layout is scientifically designed, with an equipment compartment at the front, a large-capacity water tank in the middle, and a fully functional pump room at the rear. This design ensures both the vehicle's overall stability and the efficiency of firefighting operations. As a medium-sized fire truck, the FAW water fire tender, with its exceptional water-carrying capacity and reliable firefighting performance, has become an ideal choice for public fire brigades, industrial and mining enterprises, communities, docks, and other locations.

The core advantages of the FAW Fire Tanker Truck lie in its professional-grade firefighting system and large-capacity water tank design. The vehicle is equipped with a 6,000-liter carbon steel water tank, internally treated with epoxy primer and epoxy asphalt paint for dual anti-corrosion protection, significantly extending the tank's service life. The water tank and chassis are connected elastically, greatly reducing impact on the tank during vehicle movement and ensuring long-term structural reliability. The 6,000 kg water-carrying capacity allows the truck to sustain prolonged firefighting operations after a single refill, making it particularly suitable for use in factories or communities far from water sources.

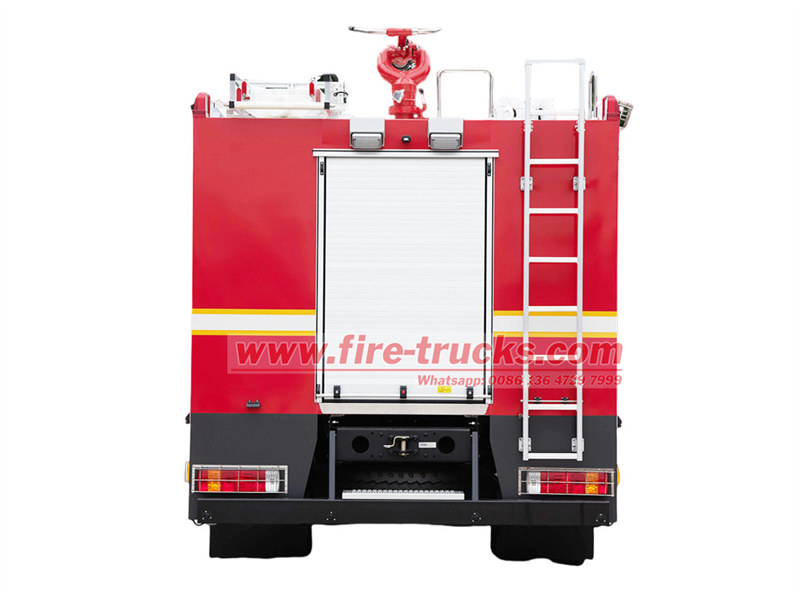

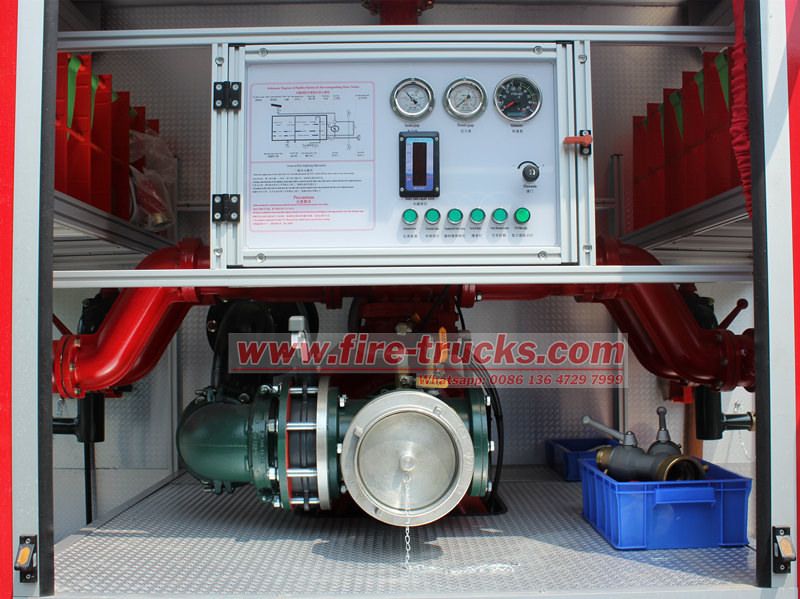

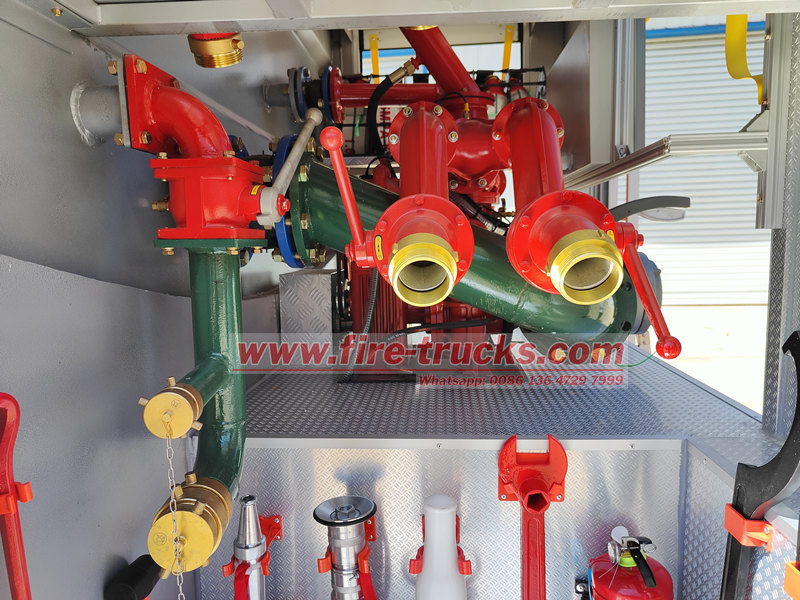

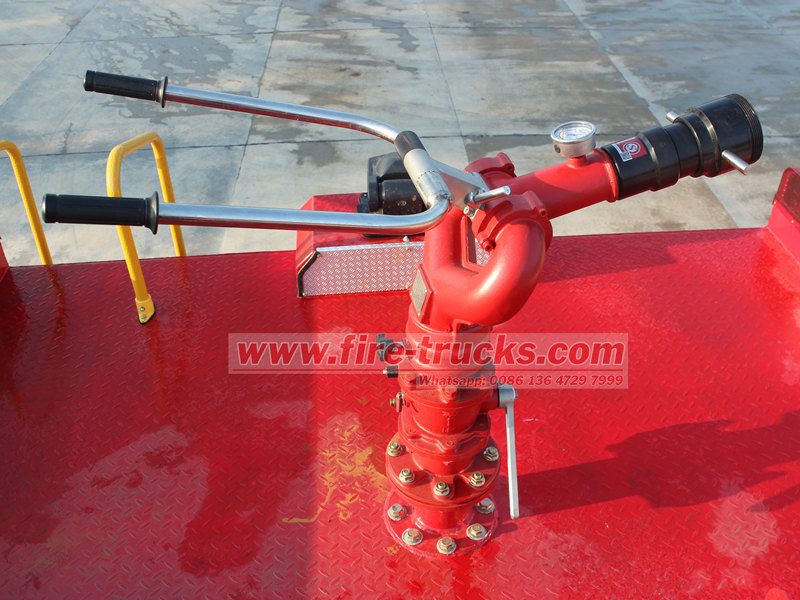

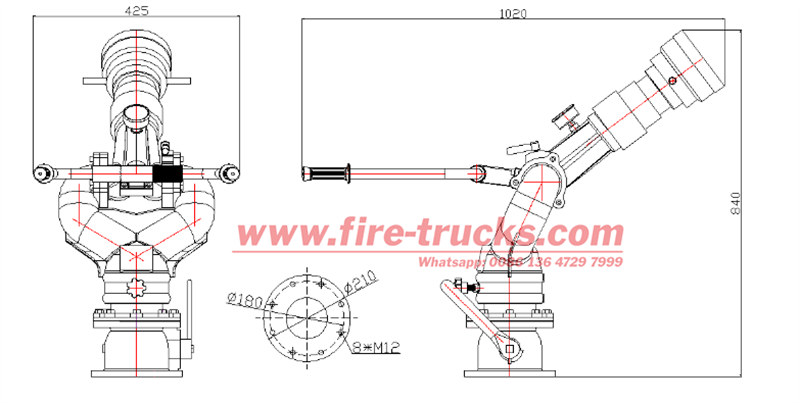

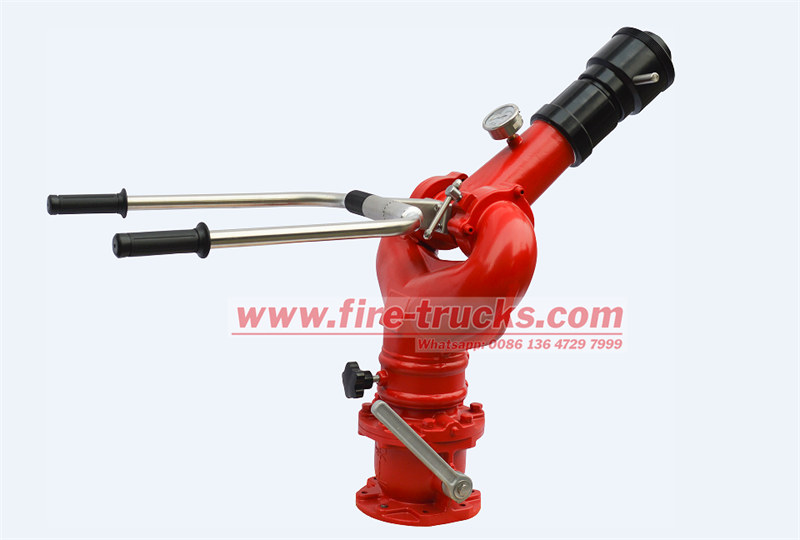

In terms of the firefighting system, the FAW fire engine truck is equipped with a CB10/60-RS normal-pressure fire pump, with a rated flow rate of 60 liters per second and a rated pressure of 1.0 MPa, achieving a startup time of no more than 50 seconds. This high-performance fire pump can quickly establish stable water pressure, providing ample water supply for firefighting operations. Another highlight is the roof-mounted PS50 fire monitor, which has a rated flow rate of 50 liters per second, a range exceeding 70 meters, and a rated pressure of 0.8 MPa. The fire monitor supports 0°~360° horizontal rotation and -35°~70° vertical adjustment, allowing precise directional firefighting through manual control. This configuration enables firefighters to flexibly adjust the spray angle according to the fire scene, effectively covering fire points at different heights and locations.

The design positioning of the FAW Water Fire Tender gives it a wide range of applications. This medium-sized fire truck is particularly suitable for public fire brigades, large industrial and mining enterprises, logistics parks, communities, docks, and other locations. It demonstrates remarkable effectiveness in extinguishing solid-material fires, making it an ideal apparatus for preventing and combating conventional fires. The large-capacity water tank design gives it a unique advantage in areas with insufficient municipal water supply, while its compact body size ensures excellent maneuverability on factory roads and urban streets.

● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best fire engine truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements

Product Specifications

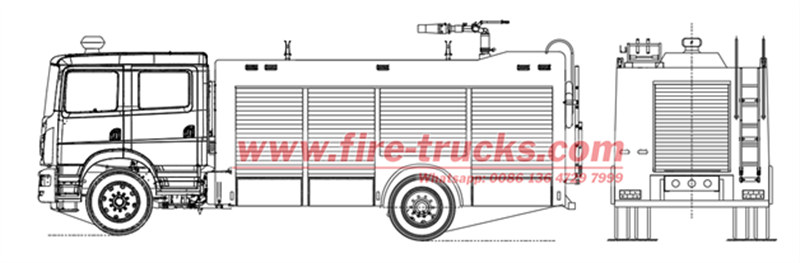

Product Drawing

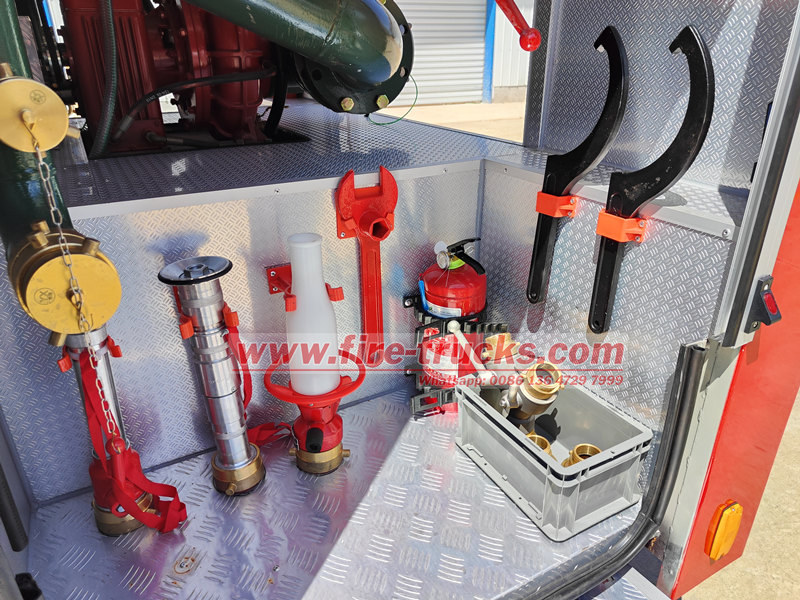

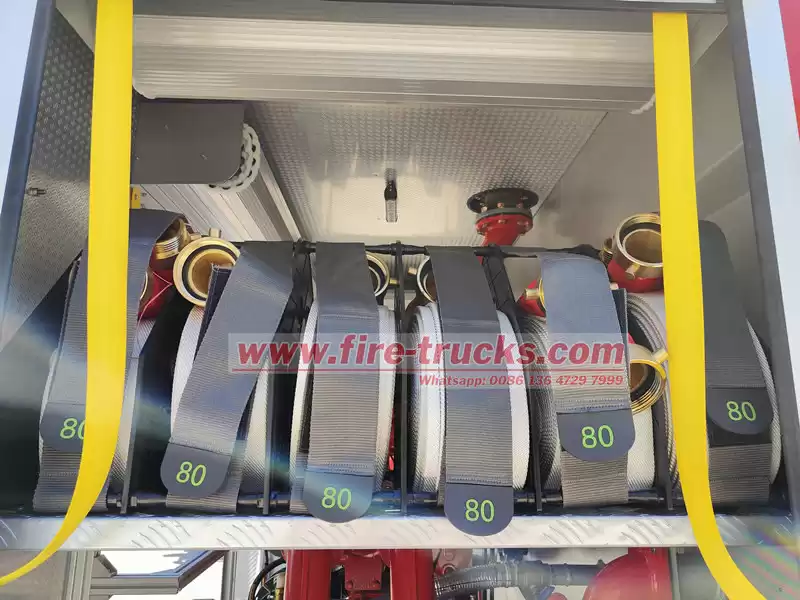

Standard Fire Equipment for FAW Water Fire Tender

Product Details
