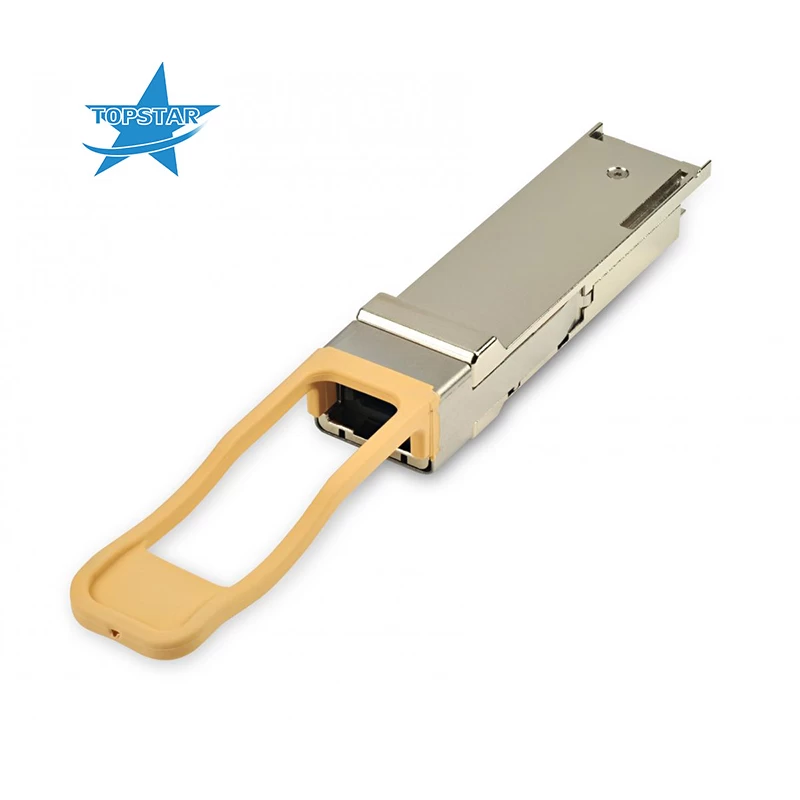

Finisar FTL410QE4C 40GBASE-SR4 150m Gen4 QSFP+ Optical Transceiver

Form Factor:

QSFP+

Finisar's FTL410QE4C QSFP+ optical transceivers are designed for use in 40 Gigabit per second links over multimode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4 and breakout to four 10GBASE-SR. Digital diagnostics functions are available via an I2C interface, including Tx and Rx power monitoring. The optical transceiver is compliant per the RoHS-6 Directive 2011/65/EU.

Warranty3 Years
ConditionNew
Temperature0-70
Data Rate41.2 Gb/s
Distance150m
Wavelength850nm
ConnectorMPO

Facebook Twitter Pinterest LinkedIn 分享

Description

Product Description:

Distance:150 m
Data Rate (max):41.2 Gb/s
Protocol:10x Fibre Channel Compatible 40G Ethernet Compliant IB QDR Compatible
Low End Case Temperature (°C):0
High End Case Temperature (°C):70
Diagnostics:N/A
Transmitter:4x VCSEL
Receiver:PIN
Voltage Supply:3.3
Connector:MPO
Wavelength:850nm Band

Product Feature：

Four-channel full-duplex transceiver module
Hot-pluggable QSFP+ form factor
Maximum link length of 100m on OM3 Multimode Fiber (MMF) and 150m on OM4 MMF
Multirate capability: 1.06Gb/s to 10.5Gb/s per channel
Unretimed XLPPI electrical interface
Maximum power dissipation < 1W
Reliable VCSEL array technology
Built-in digital diagnostic functions, including optical power monitoring
Commercial temperature range 0°C to 70°C
Single 1x12 MPO receptacle
RoHS-6 compliant
