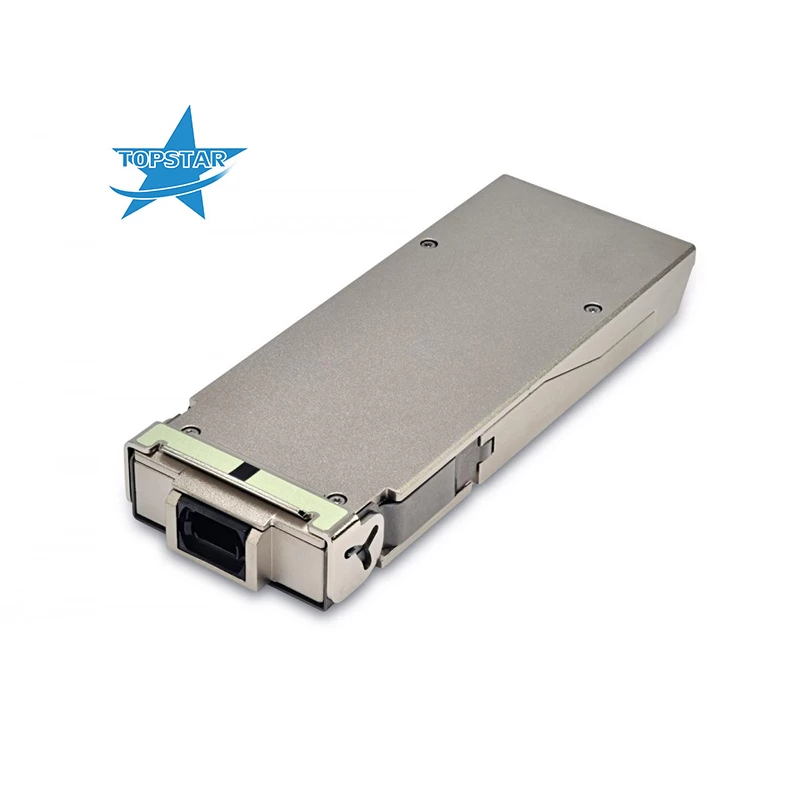

Finisar FTLC8221SCNM 100GBASE-SR10 and OTN Multirate 100m CFP2 Optical Transceiver

Form Factor: CFP2
Finisar’s FTLC8221SCNM 100GE CFP2 optical transceiver modules are designed for use in 100 Gigabit Ethernet links and 10x11.2G OTN client interfaces over multimode fiber. They are compliant with the CFP2 MSA and with IEEE 802.3ba 100GBASE-SR10.  Digital diagnostics functions are available via an MDIO interface as specified by Finisar Application Note AN-21xx. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.


  • Distance100m
  • Data Rate112 Gb/s
  • Temperature0-70
  • ConditionNew
  • Warranty3 Years
  • Wavelength850nm
  • ConnectorMPT

Product Description:


Distance:100 m
Data Rate (max):112 Gb/s
Protocol:OTN OTU4 Compliant 100G Ethernet Compliant
Low End Case Temperature (°C):0
High End Case Temperature (°C):70
Diagnostics:Digital
Transmitter:VCSEL
Receiver:PIN
Voltage Supply:3.3
Connector:MPO
Wavelength:850nm Band

Product Feature:


Hot-pluggable CFP2 form factor
Supports 103.1Gb/s and 112Gb/s aggregate bit rates
Power dissipation <4W
RoHS-6 compliant
Single 3.3V power supply
Maximum link length of 100m on OM3 Multimode Fiber (MMF) and 150m on OM4 MMF
Uncooled 10x10Gb/s 850nm transmitter
CPPI electrical interface
Single MPO24 receptacle
MDIO management interface
Tx/Rx optical power monitoring functionality
Commercial case temperature range: 0°C to 70°C
