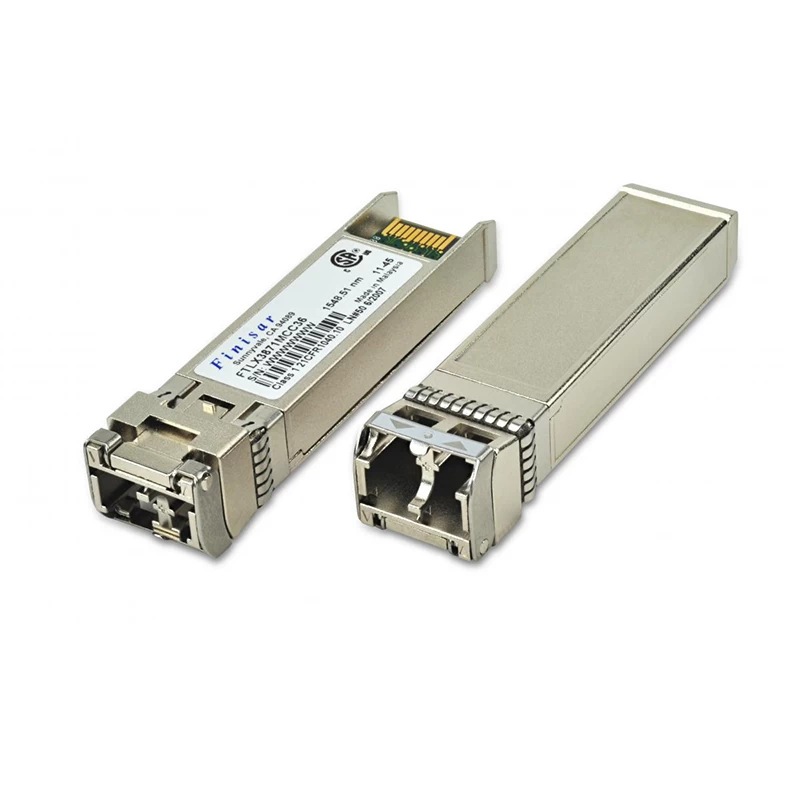

Finisar FTLX3871DCCxx 10G-ZR Fixed Channel DWDM 80km SFP+ Optical Transceiver

Form Factor:

SFP+

Finisar’s FTLX3871DCCxx optical transceivers are Enhanced Small Form Factor Pluggable SFP+ transceivers designed for use in 10-Gigabit multi-rate links up to 80km of G.652 single mode fiber. They are compliant with SFF-8431, SFF-8432, and G.698.1 DS100S1-2Dz(C), and 10G Ethernet ZR and 10G Fibre Channel over 80km fiber.

Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The optical transceiver is compliant per the RoHS Directive 2011/65/EU. See Finisar Application Note AN-2038 for more details.

Warranty1 Year
ConditionNew
Temperature-5-70
Data Rate11.3 Gb/s
Distance80km
WavelengthC-Band DWDM Fixed
ConnectorLC

Facebook Twitter Pinterest LinkedIn 分享

Description

Product Description:

Distance:80 km
Data Rate (max):11.3 Gb/s
Protocol:8x Fibre Channel Compliant 10x Fibre Channel Compliant 10 Gigabit Ethernet Compliant Wireless CPRI Compatible
Low End Case Temperature (°C):-5
High End Case Temperature (°C):70
Diagnostics:Digital
Transmitter:DWDM EML
Receiver:APD
Voltage Supply:3.3
Connector:LC
Wavelength:C-Band DWDM Fixed

Product Feature:

Hot-pluggable SFP+ footprint
Supports 8.5 and 9.95 to 11.3 Gb/s
Up to 80km link length
100 GHz channel spacing
Single 3.3V power supply
Cooled 1550nm EML laser
Limiting electrical interface receiver
Duplex LC connector
Built-in digital diagnostic functions
RoHS-6 compliant (lead-free)
Case temperature range: -5°C to 70°C
