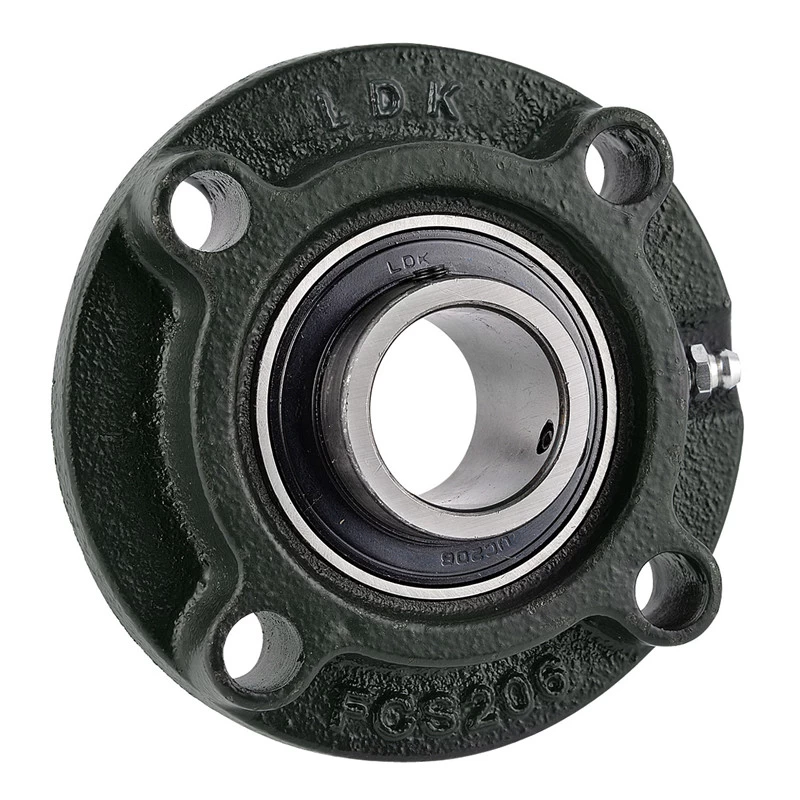

Flange Cartridge Bearing Units UCFCS2



UCFCS  Standard duty,Wider inner ring bearing,Inch-based housing,Setscrew locking,Cast gray iron housing .

Cast DUCTILE iron housing available upon request.



Facebook Twitter Pinterest LinkedIn 分享

UCFCS209 Flange Cartridge Bearing Housing

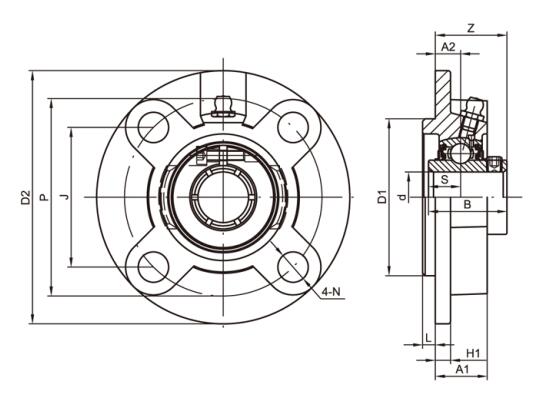

Unit No. Shaft Dia Dimensions (mm) Weight
d D2 P J A2 N L H1 A1 D1 S B Z (kg)
(in) (mm)
UCFCS206    30 111.0 92.08 65.11 9.9 12.0 6.1 9.4 23.9 76.2 15.9 38.1 32.1 1.26
UCFCS206-17  1-1/16  
UCFCS206-18  1-1/8  
UCFCS206-19  1-3/16  
UCFCS206-20 1-1/4  
UCFCS207   35 127.0 104.78 74.09 7.9 12.0 9.4 9.4 22.6 85.725 17.5 42.9 33.3 1.84
UCFCS207-20  1-1/4  
UCFCS207-21  1-5/16  
UCFCS207-22  1-3/8  
UCFCS207-23 1-7/16  
UCFCS208   40 133.1 111.1 78.56 8.9 12.0 10.9 10.9 25.9 92.075 19.0 49.2 39.1 2.02
UCFCS208-24  1-1/2  
UCFCS208-25 1-9/16  
UCFCS209   45 155.5 130.18 92.05 7.9 14.0 10.9 10.9 25.4 107.95 19.0 49.2 38.1 2.78
UCFCS209-26  1-5/8  
UCFCS209-27  1-11/16  
UCFCS209-28 1-3/4  
UCFCS210   50 155.5 130.18 92.05 7.9 14.0 11.9 10.9 24.9 107.95 19.0 51.6 40.5 2.76
UCFCS210-30  1-7/8  
UCFCS210-31 1-15/16  
UCFCS210-32 2  
UCFCS211   55 162 136.5 96.52 7.1 14.0 16.0 10.9 25.9 114.3 22.2 55.6 40.5 3.29
UCFCS211-32   2  
UCFCS211-34 2-1/8  
UCFCS211-35 2-3/16  
UCFCS212   60 180.8 152.4 107.76 4.0 14.0 22.1 13 25.9 127.0 25.4 65.1 43.7 4.61
UCFCS212-36 2-1/4  
UCFCS212-37 2-5/16  
UCFCS212-38 2-3/8  
UCFCS212-39 2-7/16  
UCFCS213   65 193.8 165.1 116.74 10.9 14.0 20.0 14.0 33.0 139.7 25.4 65.1 50.6 5.91
UCFCS213-39 2-7/16  
UCFCS213-40 2-1/2  
UCFCS214    70 193.7 165.1 116.74 10.9 14.0 20.0 14.0 33.3 139.7 25.4 74.6 55.3 7.98
UCFCS214-43 2-11/16  
UCFCS214-44 2-3/4  
UCFCS215   75 222.2 190.5 134.7 14 17.5 20 16 36 161.925 25.4 77.8 58.5 8.34
UCFCS215-47 2-15/16  
UCFCS215-48 3  
