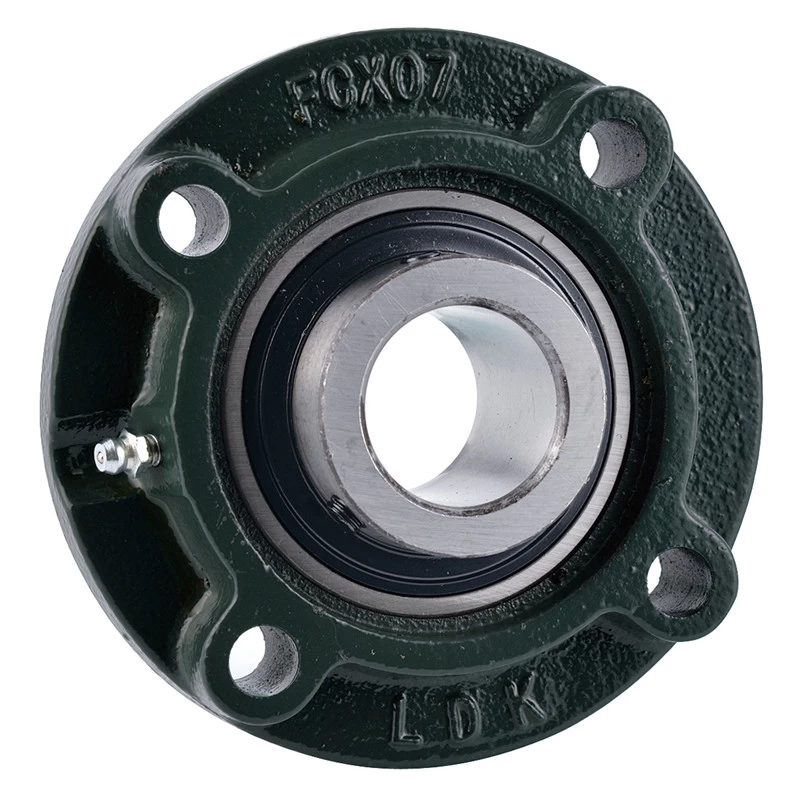

Flange Cartridge Bearing Units UCFCX


UCFCX  Medium duty,Wider inner ring bearing, Setscrew locking,Cast gray iron housing .

Cast DUCTILE iron housing available upon request.


Facebook Twitter Pinterest LinkedIn 分享

UCFCX08 Flange Cartridge Bearing Housing

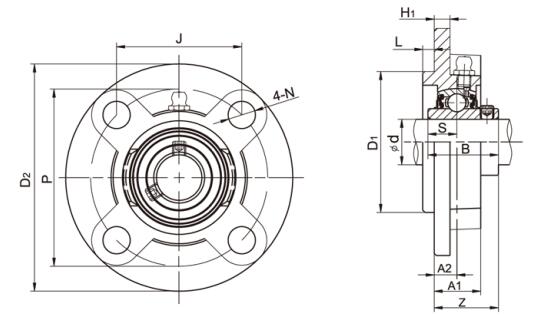

Unit No. Shaft Dia Dimensions (mm) Bolt Size Weight (kg)
d D2 P J A2 N L H1 A1 D1 B S Z (mm) (in)
(in) (mm)
UCFCX05    25 111 92 65 10 9.5 6 9.5 24 76 38.1 15.9 32.2 M8 5/16 1.2
UCFCX05-13  13/16    111 92 65 10 9.5 6 9.5 24 76 38.1 15.9 32.2 M8 5/16 1.2
UCFCX05-14  7/8    111 92 65 10 9.5 6 9.5 24 76 38.1 15.9 32.2 M8 5/16 1.2
UCFCX05-15  15/16   111 92 65 10 9.5 6 9.5 24 76 38.1 15.9 32.2 M8 5/16 1.2
UCFCX05-16 1   111 92 65 10 9.5 6 9.5 24 76 38.1 15.9 32.2 M8 5/16 1.2
UCFCX06    30 127 105 74.2 8 12 9.5 9.5 22.5 85 42.9 17.5 33.4 M10 3/8 1.5
UCFCX06-17  1-1/16    127 105 74.2 8 12 9.5 9.5 22.5 85 42.9 17.5 33.4 M10 3/8 1.5
UCFCX06-18  1-1/8    127 105 74.2 8 12 9.5 9.5 22.5 85 42.9 17.5 33.4 M10 3/8 1.5
UCFCX06-19  1-3/16    127 105 74.2 8 12 9.5 9.5 22.5 85 42.9 17.5 33.4 M10 3/8 1.5
UCFCX06-20 1-1/4   127 105 74.2 8 12 9.5 9.5 22.5 85 42.9 17.5 33.4 M10 3/8 1.5
UCFCX07    35 133 111 78.5 9 12 11 11 26 92 49.2 19 39.2 M10 3/8 1.9
UCFCX07-21  1-5/16    133 111 78.5 9 12 11 11 26 92 49.2 19 39.2 M10 3/8 1.9
UCFCX07-22  1-3/8    133 111 78.5 9 12 11 11 26 92 49.2 19 39.2 M10 3/8 1.9
UCFCX07-23 1-7/16   133 111 78.5 9 12 11 11 26 92 49.2 19 39.2 M10 3/8 1.9
UCFCX08    40 133 111 78.5 9 12 11 11 26 92 49.2 19 39.2 M10 3/8 2.0
UCFCX08-24  1-1/2    133 111 78.5 9 12 11 11 26 92 49.2 19 39.2 M10 3/8 2.0
UCFCX08-25 1-9/16   133 111 78.5 9 12 11 11 26 92 49.2 19 39.2 M10 3/8 2.0
UCFCX09    45 155 130 91.9 8 14 12 11 25 108 51.6 19 40.6 M12 7/16 2.6
UCFCX09-26  1-5/8    155 130 91.9 8 14 12 11 25 108 51.6 19 40.6 M12 7/16 2.6
UCFCX09-27  1-11/16    155 130 91.9 8 14 12 11 25 108 51.6 19 40.6 M12 7/16 2.6
UCFCX09-28  1-3/4    155 130 91.9 8 14 12 11 25 108 51.6 19 40.6 M12 7/16 2.6
UCFCX09-29 1-13/16   155 130 91.9 8 14 12 11 25 108 51.6 19 40.6 M12 7/16 2.6
UCFCX10    50 162 136 96.2 7 14 16 11 25 118 55.6 22.2 40.4 M12 7/16 3.2
UCFCX10-30  1-7/8    162 136 96.2 7 14 16 11 25 118 55.6 22.2 40.4 M12 7/16 3.2
UCFCX10-31  1-15/16   162 136 96.2 7 14 16 11 25 118 55.6 22.2 40.4 M12 7/16 3.2
UCFCX10-32 2   162 136 96.2 7 14 16 11 25 118 55.6 22.2 40.4 M12 7/16 3.2
UCFCX11    55 180 152 107.5 4 16 22 13 26 127 65.1 25.4 43.7 M14 1/2 4.3
UCFCX11-33  2-1/16    180 152 107.5 4 16 22 13 26 127 65.1 25.4 43.7 M14 1/2 4.3
UCFCX11-34  2-1/8    180 152 107.5 4 16 22 13 26 127 65.1 25.4 43.7 M14 1/2 4.3
UCFCX11-35  2-3/16    180 152 107.5 4 16 22 13 26 127 65.1 25.4 43.7 M14 1/2 4.3
UCFCX11-36  2-1/4    180 152 107.5 4 16 22 13 26 127 65.1 25.4 43.7 M14 1/2 4.3
UCFCX11-37 2-5/16   180 152 107.5 4 16 22 13 26 127 65.1 25.4 43.7 M14 1/2 4.3
UCFCX12    60 194 165 116.7 11 16 20 14 33 140 65.1 25.4 50.7 M14 1/2 5.3
UCFCX12-38  2-3/8    194 165 116.7 11 16 20 14 33 140 65.1 25.4 50.7 M14 1/2 5.3
UCFCX12-39 2-7/16   194 165 116.7 11 16 20 14 33 140 65.1 25.4 50.7 M14 1/2 5.3
UCFCX13    65 194 165 116.7 11 16 20 14 33 140 74.6 30.2 55.4 M14 1/2 5.7
UCFCX13-40  2-1/2    194 165 116.7 11 16 20 14 33 140 74.6 30.2 55.4 M14 1/2 5.7
UCFCX13-41 2-9/16   194 165 116.7 11 16 20 14 33 140 74.6 30.2 55.4 M14 1/2 5.7
UCFCX14    70 222 190 134.3 14 19 20 14 36 164 77.8 33.3 58.5 M16 5/8 7.3
UCFCX14-42  2-5/8    222 190 134.3 14 19 20 14 36 164 77.8 33.3 58.5 M16 5/8 7.3
UCFCX14-43  2-1/16    222 190 134.3 14 19 20 14 36 164 77.8 33.3 58.5 M16 5/8 7.3
UCFCX14-44 2-3/4   222 190 134.3 14 19 20 14 36 164 77.8 33.3 58.5 M16 5/8 7.3
UCFCX15    75 222 190 134.3 12 19 22 16 35 164 82.6 33.3 61.3 M16 5/8 8
UCFCX15-45  2-13/16    222 190 134.3 12 19 22 16 35 164 82.6 33.3 61.3 M16 5/8 8
UCFCX15-46  2-7/8    222 190 134.3 12 19 22 16 35 164 82.6 33.3 61.3 M16 5/8 8
UCFCX15-47  2-15/16   222 190 134.3 12 19 22 16 35 164 82.6 33.3 61.3 M16 5/8 8
UCFCX15-48 3   222 190 134.3 12 19 22 16 35 164 82.6 33.3 61.3 M16 5/8 8
UCFCX16    80 260 219 154.8 10 23 25 19 36 186 85.7 34.1 61.6 M20 5/8 11.3
UCFCX16-49  3-1/16    260 219 154.8 10 23 25 19 36 186 85.7 34.1 61.6 M20 5/8 11.3
UCFCX16-50  3-1/8    260 219 154.8 10 23 25 19 36 186 85.7 34.1 61.6 M20 5/8 11.3
UCFCX16-51  3-3/16    260 219 154.8 10 23 25 19 36 186 85.7 34.1 61.6 M20 5/8 11.3
UCFCX16-52 3-1/4   260 219 154.8 10 23 25 19 36 186 85.7 34.1 61.6 M20 5/8 11.3
UCFCX17    85 260 219 154.8 10 23 25 19 36 186 96 39.7 66.3 M20 3/4 12.9
UCFCX17-53  3-5/16    260 219 154.8 10 23 25 19 36 186 96 39.7 66.3 M20 3/4 12.9
UCFCX17-55 3-7/16   260 219 154.8 10 23 25 19 36 186 96 39.7 66.3 M20 3/4 12.9
