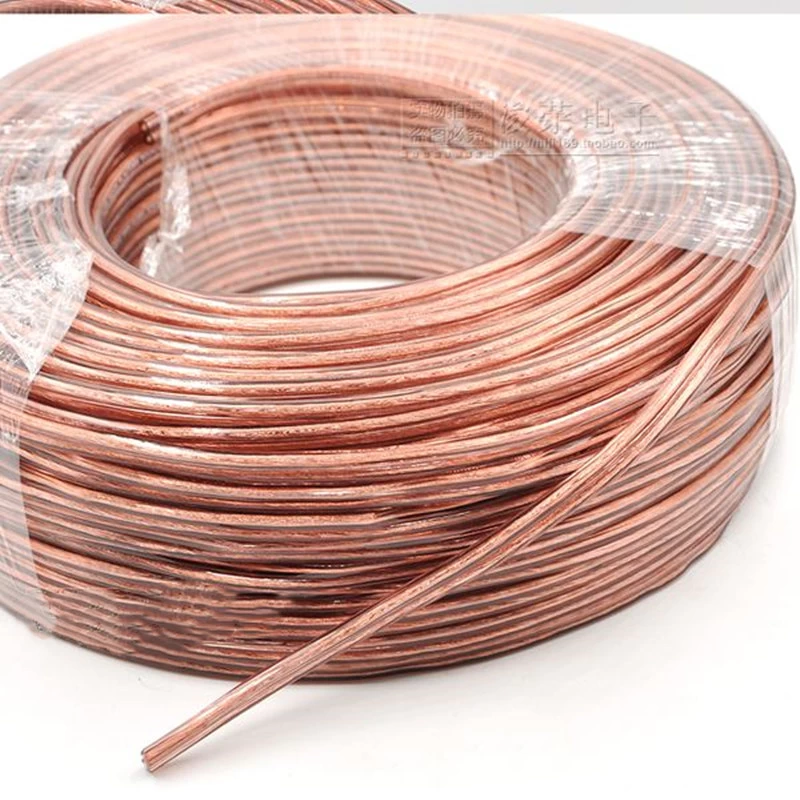

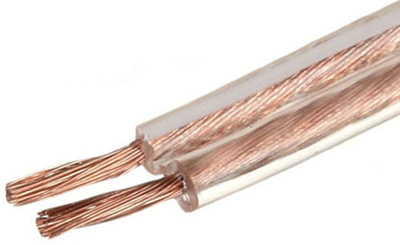

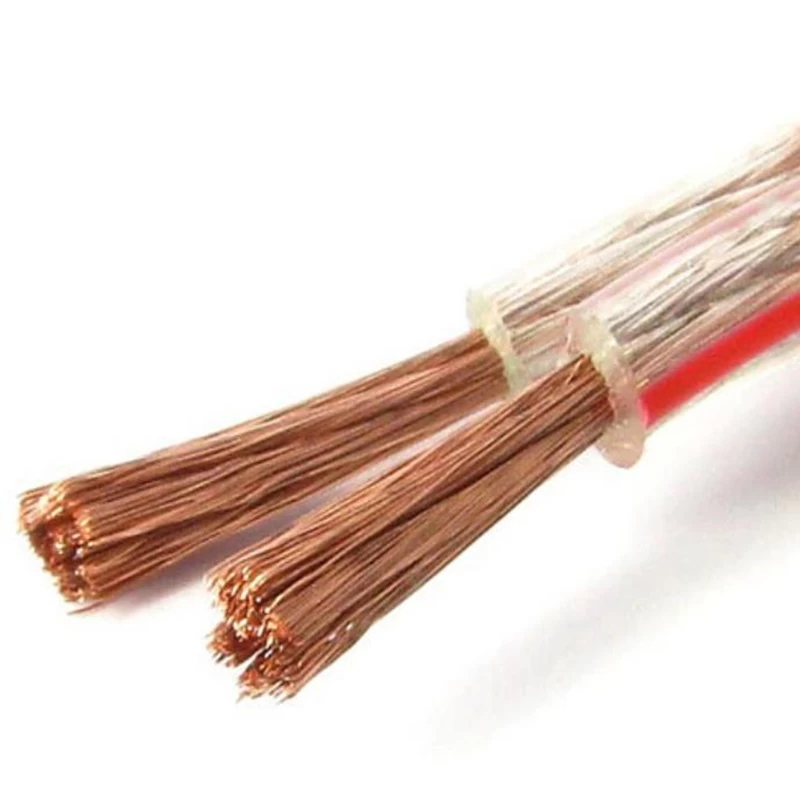

Flat Flexible RVH Electrical Wires

Flat Flexible RVH Electrical Wires, strand flexible copper wire and tinned copper wire, soft transparent PVC insulation. It is used to stereo speaker connections, For the transmission of low-frequency audio signals, Broadcasting system equipment, Conference Room Project.



Flat Flexible RVH PVC Insulated Electrical Wires and Cables

MAIN KEYWORDS

RVH, flat flexible wire, gold & silver wire, speaker cable, sound cable, Hi-fi sound cable, audio cable.


APPLICATION CHARACTERISTICS

Flat flexible RVH cable, the speaker cable is used to connect the power amplifier and the speaker, and the current signal in circulation is far greater than that of the video cable and the audio cable. This kind of cable often has no shielding layer. For this kind of wire, the key is to reduce its resistance, so the requirements for the speaker cable are also increased, such as selecting a large cross-sectional area or multi stranded wire.



PRODUCTS STRUCTURE

---Conductor Material

   Pure or tinned copper wire, strand class 5 or class 6, flexible.

---Insulation Material (inner insulation)

   Soft transparent PVC (polyvinyl chloride).

---Insulation Colour

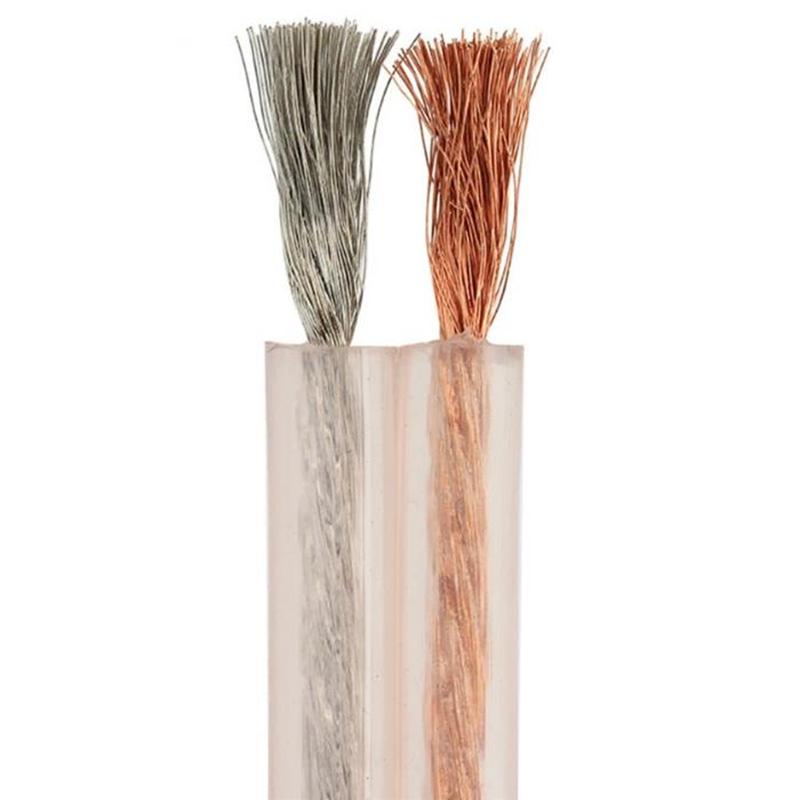

   gold/silver, or others.

---Sheath Material (optional)

   Soft transparent PVC (polyvinyl chloride)

---Sheath Colour (if available)

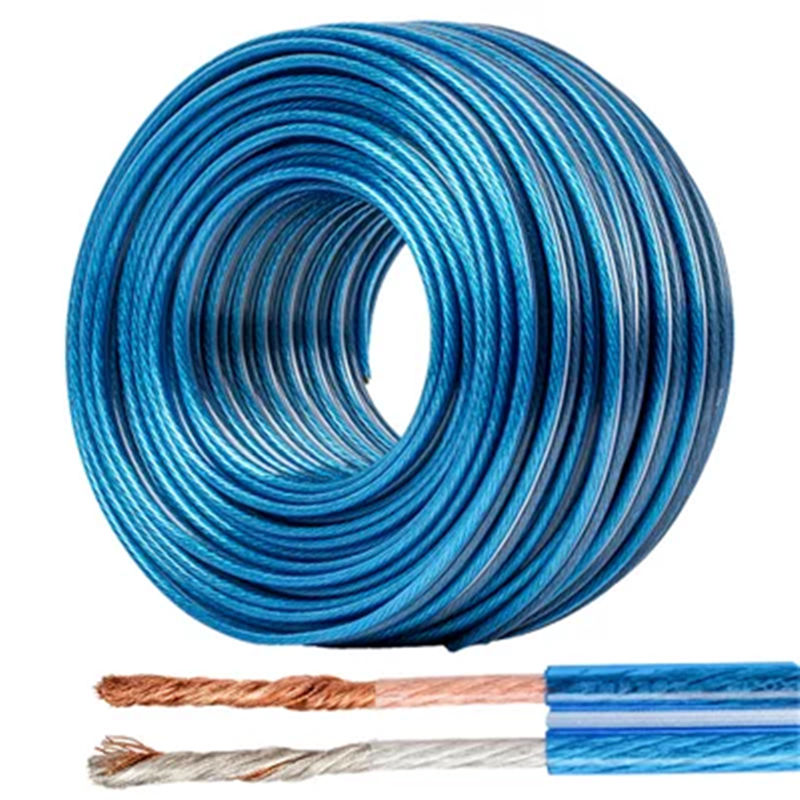

    Gold, blue, transparent, or others.

---Core Number

   2 cores, 2C.

---Voltage Rate (U0/U)

   300/300V

---Working Temperature

   -15℃~+70℃.

---Minimum Bending Radius

   Fixed: 6 x Out Diameter.

---Production Standard

   JB/T 8734, GB/T 5023, IEC 60227, YD/T 1019-2001.

---Products Delivery

   Within 5-7 working days as soon as we received the deposit.



PRODUCTS SPECIFICATION

Cross

Section

Area

(mm2)

Conductor

Material

Conductor

Structure

(pcs/mm)

Insulated

Material

Insulated

Thickness

(mm)

Refer Max.

Out Diameter

(mm)

Refer

Net

Weight

(kg/km)

MOQ

(m)

Remak


2 x 0.4

copper,

Tinned copper

2C

50/0.10

soft

PVC

0.8

2.0x4.0

9.4

10000

500C

2 x 0.8

copper,

Tinned copper

2C

100/0.10

soft

PVC

0.8

2.4x4.8

15.2

10000

100C

2 x 1.2

copper,

Tinned copper

2C

150/0.10

soft

PVC

0.8

3.2x6.4

19.2

10000

150C

2 x 1.5

copper,

Tinned copper

2C

180/0.10

soft

PVC

0.8

3.6x7.2

28.8

5000

180C

2 x 1.6

copper,

Tinned copper

2C

200/0.10

soft

PVC

0.8

3.8x7.6

29.0

5000

200C

2 x 2.0

copper,

Tinned copper

2C

250/0.10

soft

PVC

0.9

4.0x8.0

46.3

5000

250C

2 x 2.5

copper,

Tinned copper

2C

300/0.10

soft

PVC

0.9

4.2x8.4

48.0

5000

300C

2 x 3.0

copper,

Tinned copper

2C

350/0.10

soft

PVC

1.0

4.6x8.8

75.6

5000

350C

2 x 2.5

With white

strip

copper,

Tinned copper

2C

300/0.10

soft

PVC

0.9

4.2x8.4

48.2

5000

300C

2 x 2.5

With white

strip

copper,

Tinned copper

2C

300/0.10

soft

PVC

0.9

4.2x8.4

48.2

5000

300C


REMARK

---The above information is only for you reference, for the formal data, please refer to the actural products.

---Please do not install in direct contact with polystyrene or polyurethane insulation materials.

---The above all information is only for you reference, please refer to the actual goods.

---The product can have flame retardant, fire-resistant or Low Smoking Zero Halogen properties, and their working temperature can be 90 & 105 degree, but the production process, materials and production standard maybe has a few of different.

---For the RVH cable, according to the practice, the common specification is 1.0~2.5mm2.

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Hante Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Hante Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.


MAIN ADVANTAGE


HOT-SELLING PRODUCTS


RAW MATERIAL


PRODUCTION PROCESS

INSPECTION PROCESS

FREQUENTLY ASKED QUESTIONS

1. Are you the manufacturer or trading company?

Wuhan Xitiandi Electrical Technology Co., Ltd (Hante Cable), is the professional in wire and cables manufacturer. We can control your order from the first begining to the last. Welcome to visit Hante Cable, we'll pick you up in Wuhan airport or high-speed Railways Station.

2. How can I get a sample to test your quality?
Hante Cable can provide the free sample to you, but you will pay the express charges.

3. What’s your Minimum Order Quantity?
For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200 meters; of cources, the MOQ can be negotiated. But in order to save the shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires should be more than 3000 meters, and the MOQ of power cable should be more than 500 meters.

4. Can I get a discount?
It depends on your quantity, we can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
