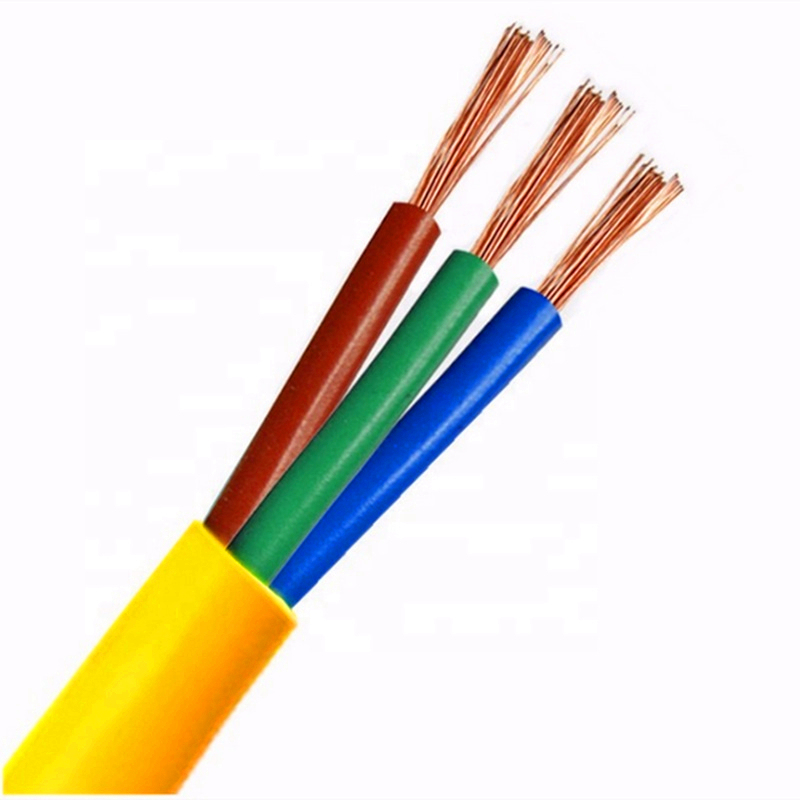

H03VV-F H05VV-F Flexible RVV Electrical Wires and Cables

H03VV-F H05VV-F 318-Y flexible RVV cable, strand flexible copper wire, soft PVC insulation, PVC sheath. Flexible wiring, for switch control, instrumentation panels and for internal connection.



H03VV-F H05VV-F 318-Y Flexible RVV Electrical Wires and Cables

MAIN KEYWORDS

RVV, flexible wire, VKF, 3182Y, 3183Y, 3184Y, 3185Y, H03VV-F, H05VV-F, H03V2V2-F, 60227IEC52, 60227IEC53, 60227IEC56, 60227IEC57.


APPLICATION CHARACTERISTICS

3183Y RVV flexible cable, H03VV-F: For mobile use. Use in domestic premises and offices, for light duty applications and appliances (ex. music centers, table and standard lamps, office machines). H05VV-F: For mobile use. Use in domestic premises and offices, for ordinary duty applications and household appliances, including in damp premises (ex. vacuum cleaners, washing machines, spin dryers and refrigerators). Used outdoor for temporary periods of short duration.



PRODUCTS STRUCTURE

---Conductor Material

   Pure annealed copper wire, strand class 5, flexible.

---Insulation Material (inner insulation)

   Soft transparent PVC (polyvinyl chloride).

---Insulation Colour

   2C: brown, blue

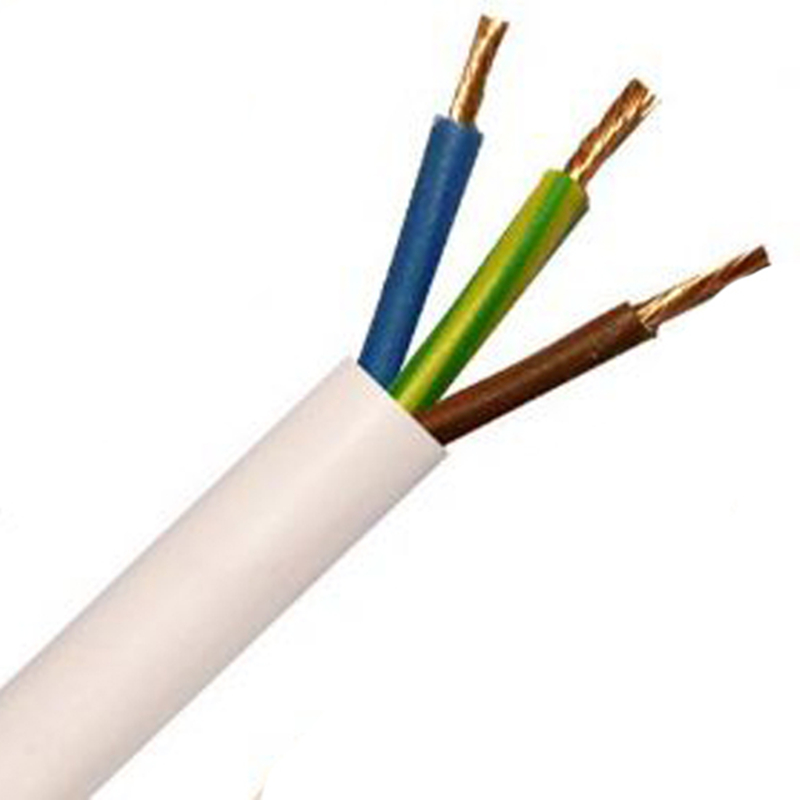

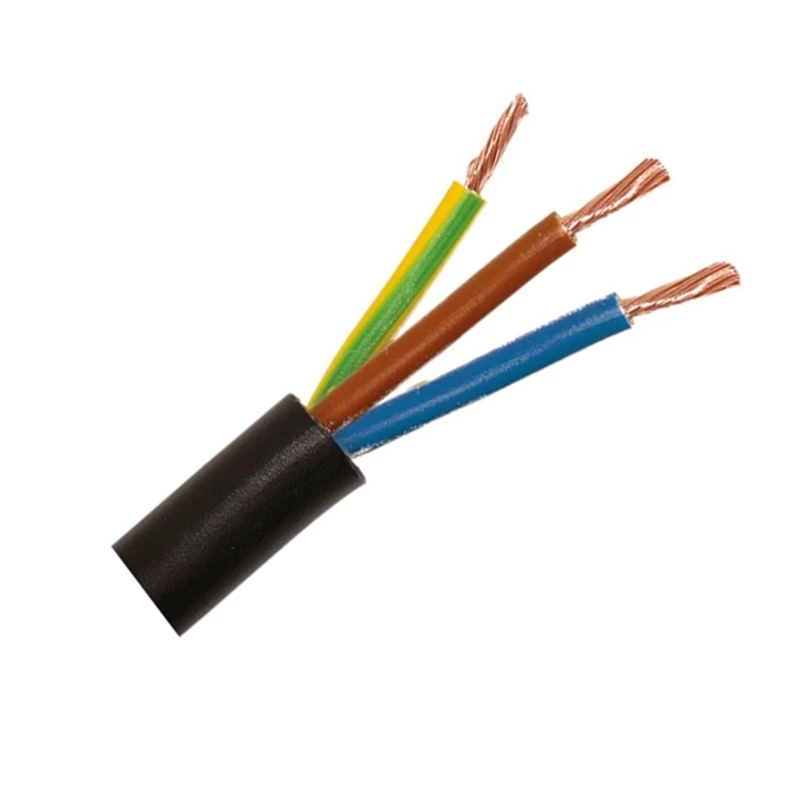

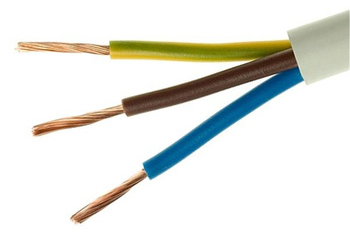

   3C: brown, blue, yellow/green

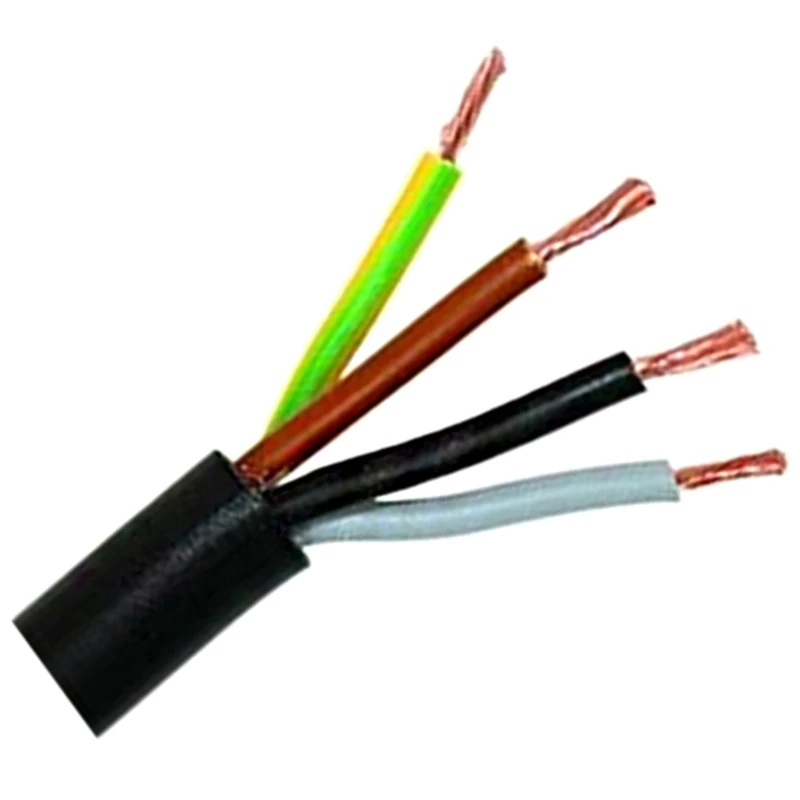

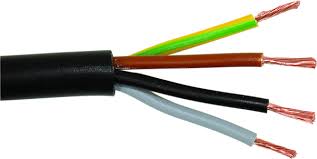

   4C: brown, blue, black, yellow/green,

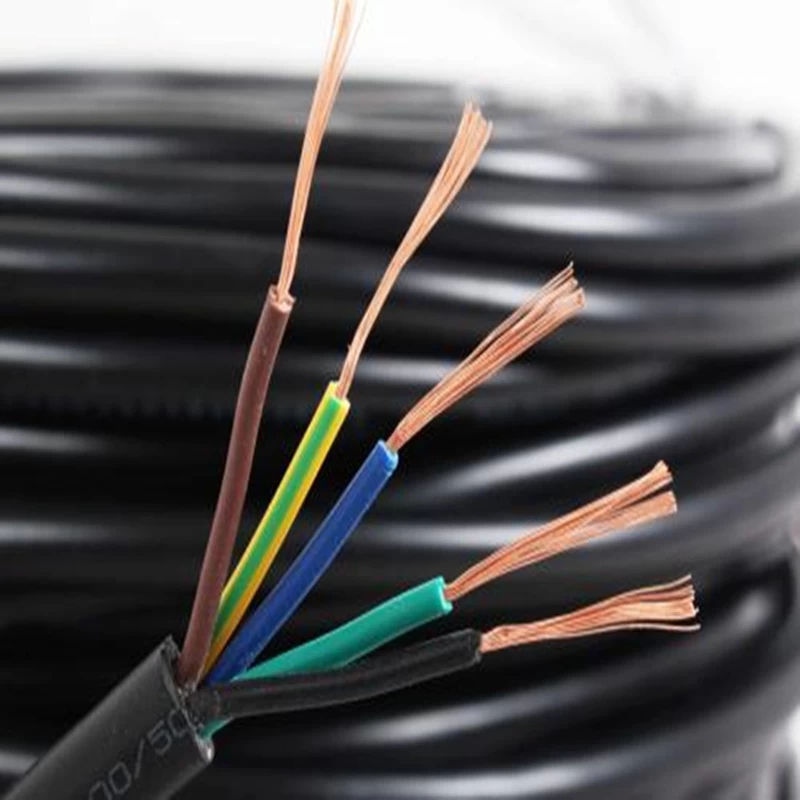

   5C: brown, blue, black, grey, yellow/green

   Remark: we will choose other colors according to the customer request.

---Sheath Material (out insulation)

   Soft transparent PVC (polyvinyl chloride)

---Sheath Colour

    Black, white, orange, or others.

---Core Number

   2 cores, 2C; 3 cores, 3C, 4 cores, 4C; 5 cores, 5C.

---Voltage Rate (U0/U)

   2x0.5 mm2, 2x0.75 mm2, 3x0.5 mm2, 3x0.75 mm2: 300/300V

   (2C~5C) x (0.75~4 mm2): 300/500V.

---Working Temperature

   -15℃~+70℃.

---Minimum Bending Radius

   Fixed: 6 x Out Diameter.

---Production Standard

   JB/T 8734, GB/T 5023, IEC 60227, BS 6500, TIS 11 part 5-2553.

---Products Delivery

   Within 5-7 working days as soon as we received the deposit.



REMARK

---The above all information is only for you reference, for the formal technical data, please refer to the actual goods.

---The product can have flame retardant, fire-resistant or Low Smoking Zero Halogen properties, and their working temperature can be 90 & 105 degree, but the production process and insulation materials maybe has a few of different.

---For the RVV flexible cable, according to the practice, the common specification is 0.75~2.5 mm2.

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Hante Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Hante Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.



MAIN ADVANTAGE


HOT-SELLING PRODUCTS


RAW MATERIAL


PRODUCTION PROCESS

INSPECTION PROCESS

FREQUENTLY ASKED QUESTIONS

1. Are you the manufacturer or trading company?

Wuhan Xitiandi Electrical Technology Co., Ltd (Hante Cable), is the professional in wire and cables manufacturer. We can control your order from the first begining to the last. Welcome to visit Hante Cable, we'll pick you up in Wuhan airport or high-speed Railways Station.

2. How can I get a sample to test your quality?
Hante Cable can provide the free sample to you, but you will pay the express charges.

3. What’s your Minimum Order Quantity?
For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200 meters; of cources, the MOQ can be negotiated. But in order to save the shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires should be more than 3000 meters, and the MOQ of power cable should be more than 500 meters.

4. Can I get a discount?
It depends on your quantity, we can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
