Solar panel flat roof mounting system has few types of components, low cost, and easy installation, suitable for most color steel tile roofs.
Technical Parameters
|
Installation Angle
|
flat
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/m2
|
|
PV Modules
|
Framed,unframed
|
|
Module Orientation
|
Landscape
|
|
Standards
|
AS/NZS 1170
|
|
|
DIN 1055
|
|
|
JIS C 8955：2017
|
|
|
International Building Code IBC 2009
|
|
|
California Building Code CBC 2010
|
|
Material
|
Al6005-T5(Anodized)
|
|
Color
|
Silvery or according to customer requirements
|
|
Warranty
|
12 years
|

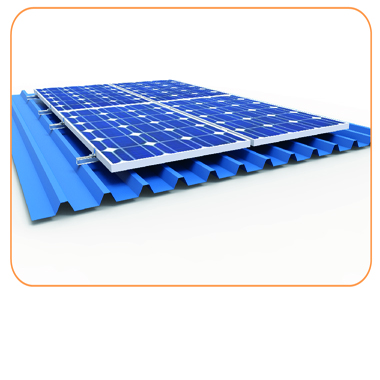

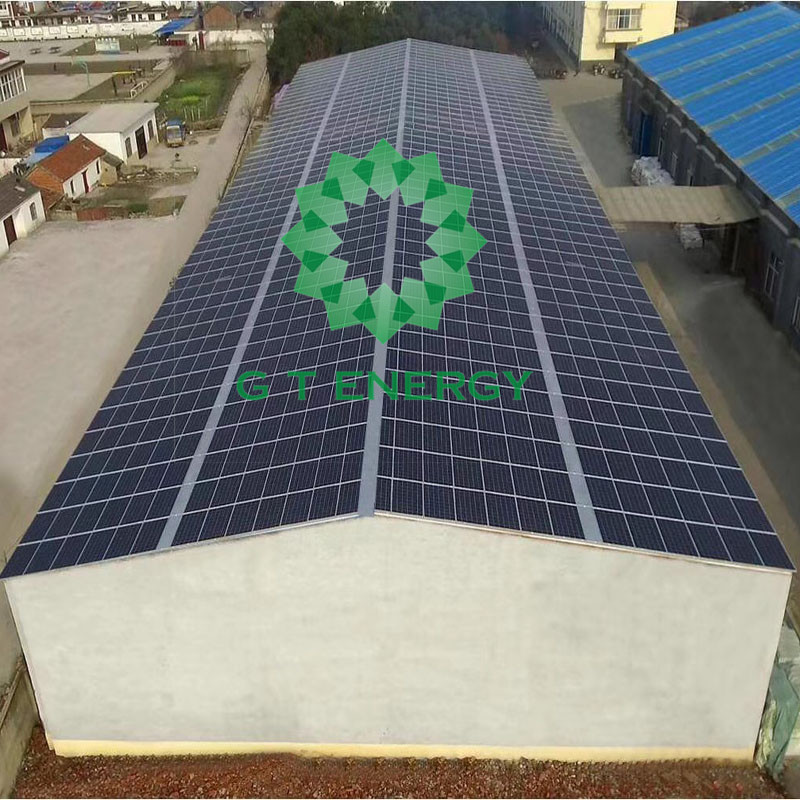

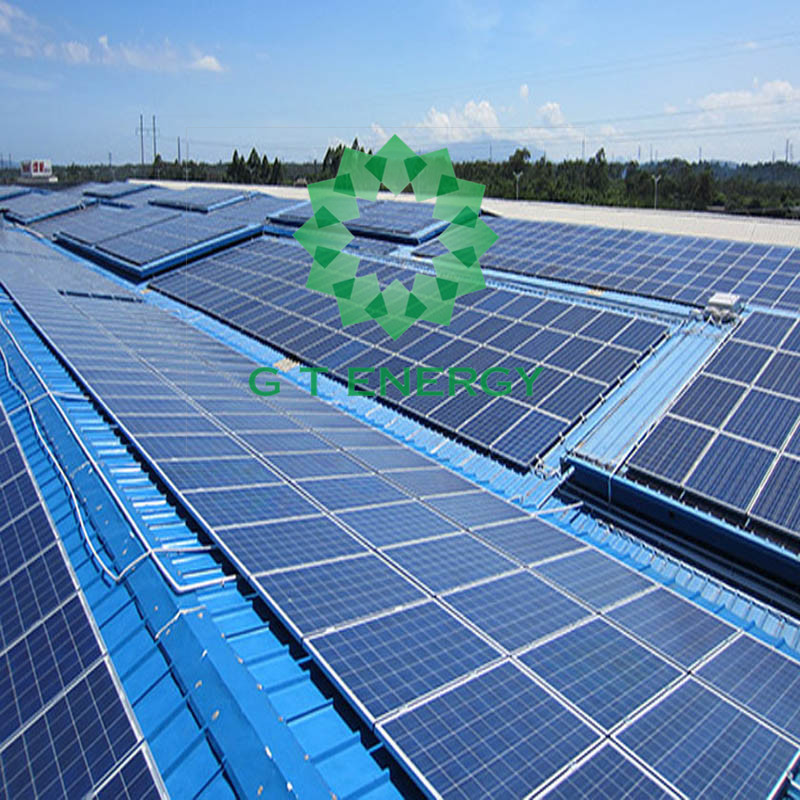

Solar panel flat roof mounting system
Feature:

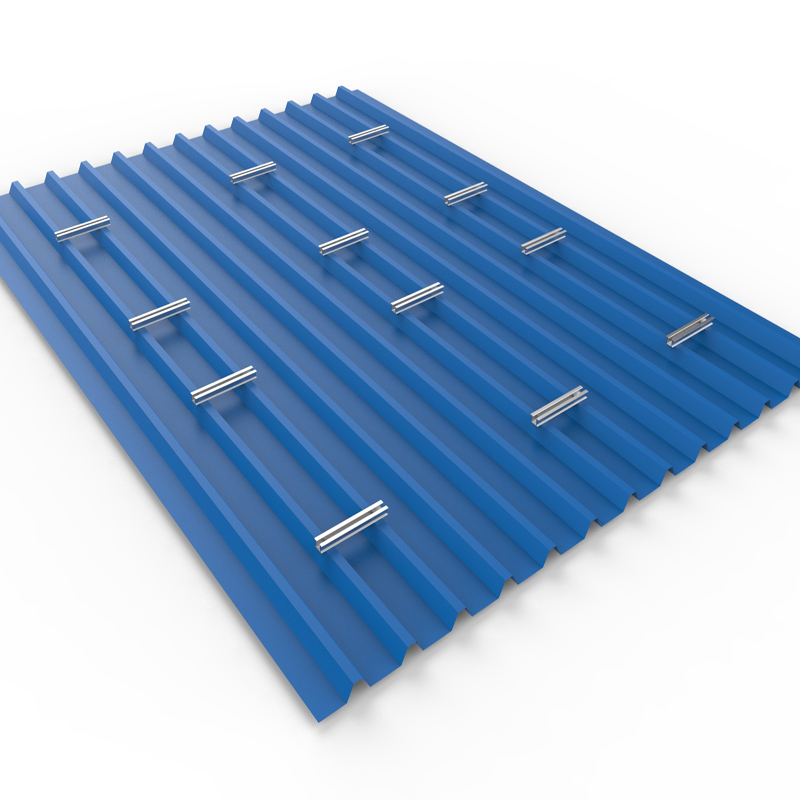

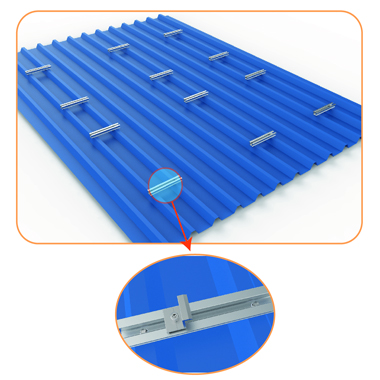

1. U-shaped solar flat rail is directly fixed on
the beam under the two peaks of galvanized roof, suitable for trapezoidall tile
roof or corrugated tile roof;
2. The solar panel is directly laid on the
U-shaped flat rail with few components and price is competitive;
3. A rubber pad attached to the bottom of
the U-shaped flat rail, to prevent the color steel tile from leaking.
Advantage
1.Easy installation;
2.High strength,anti-uv,high frequency insulation(design standard:IS C 8955:2017,GB 50009-2012,IBC 2009,CBC 2010);
3.Chemical resistance&weatherability(certificate:AS/NZS 1170,MCS,CSA etc);
4.Max wind speed:up to 60m/s;
5.Anti-corrosive:anodized;
6.Duration:25 years.
Component photos of solar panel flat roof mounting system

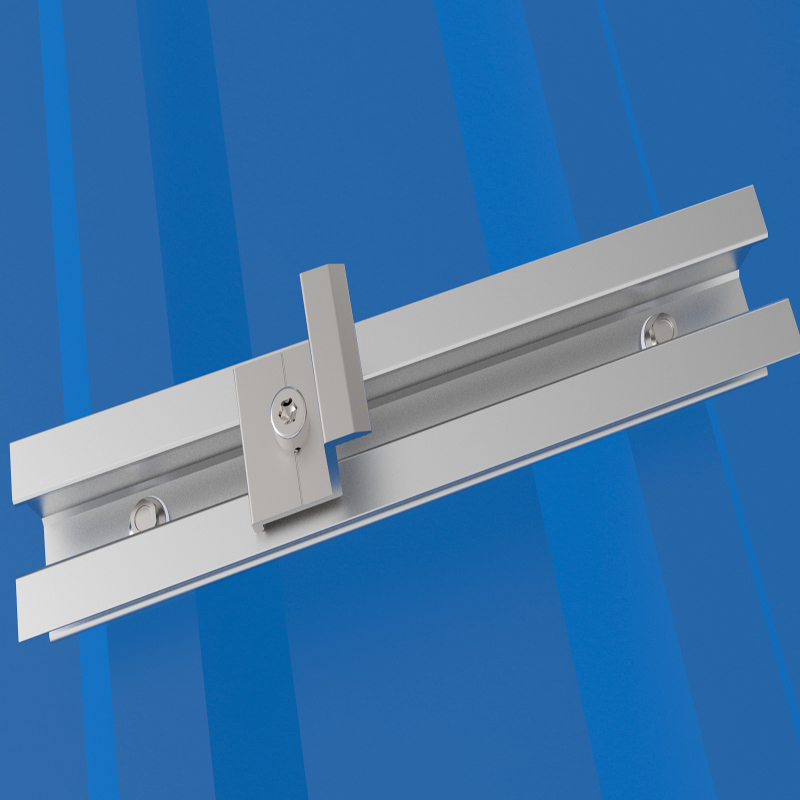

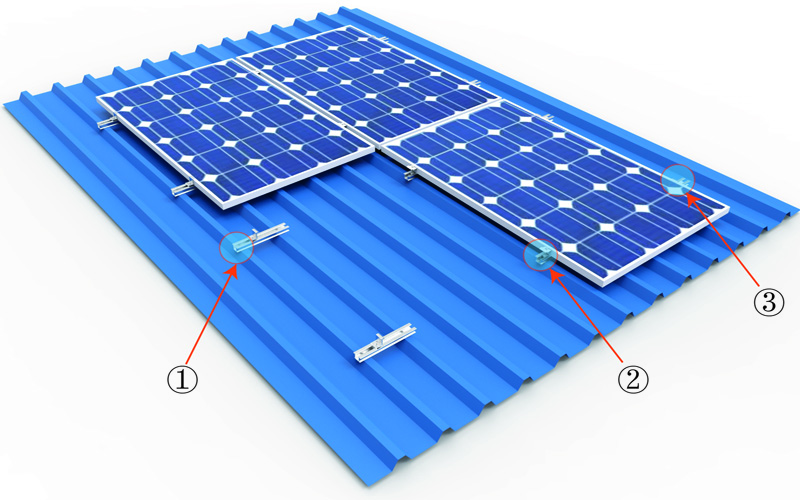

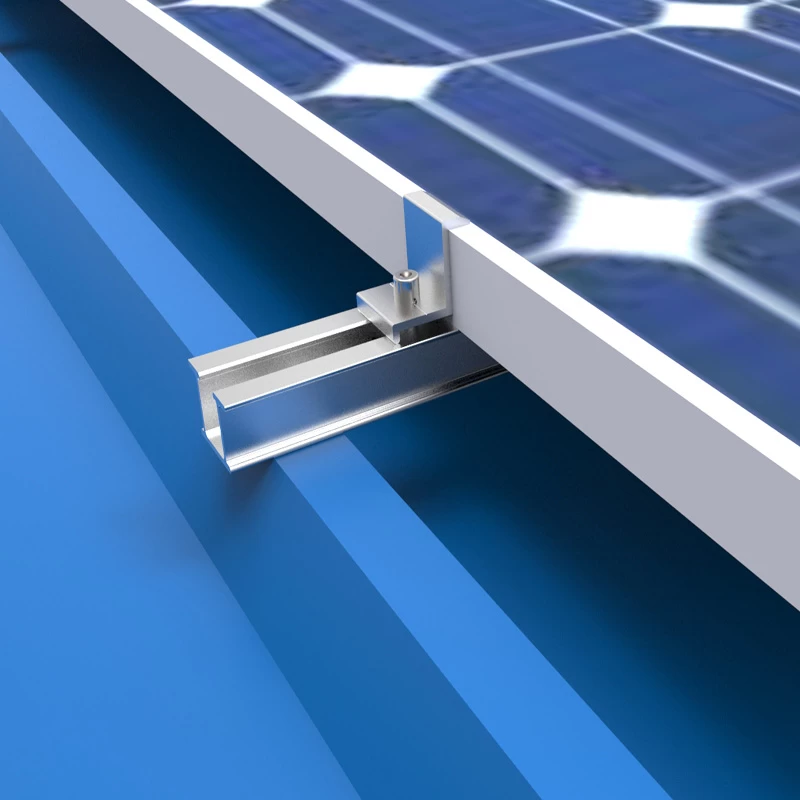

1. U-shaped Solar aluminum rail 2. Solar inter clamp 3. Solar end clamp

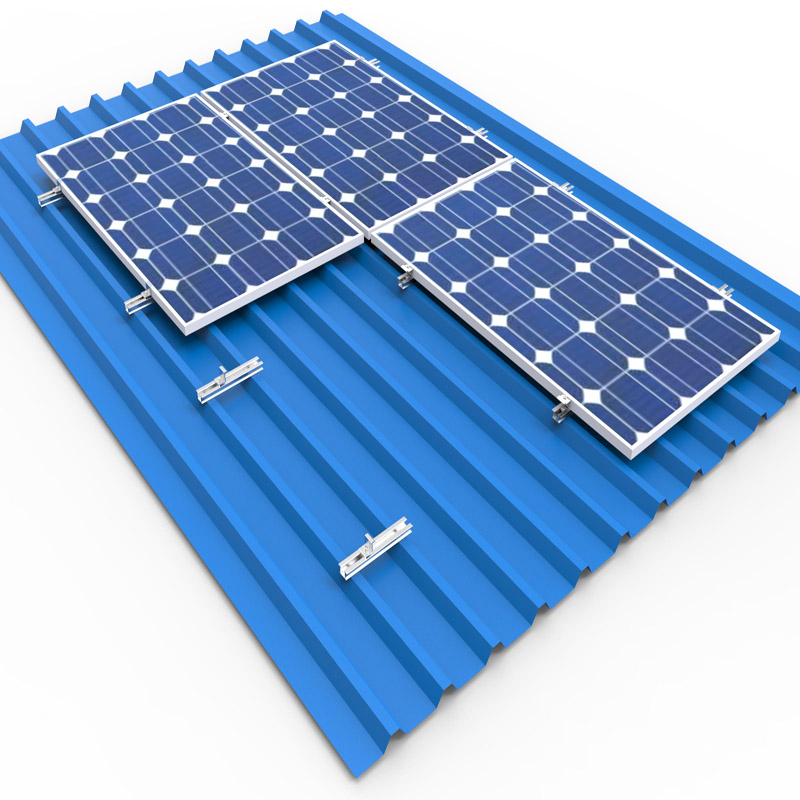

Installation photos of solar panel flat roof mounting system

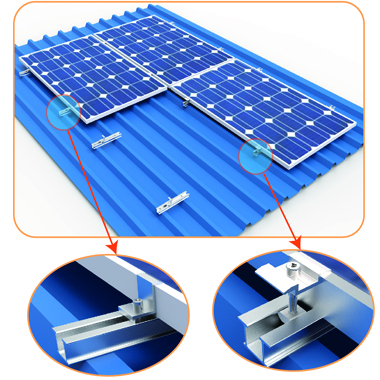

Step1：Install rails with support Step2:Fasten panel by inter clamps
beams under galvanized roof and end clamps
Install U-shaped aluminum rail Install end clamp Install inter clamp

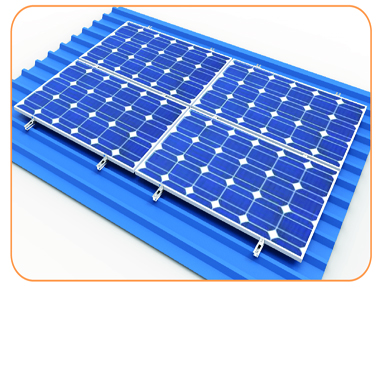

Step3: Installation completion diagram Step4: Installation completion diagram
