Overview

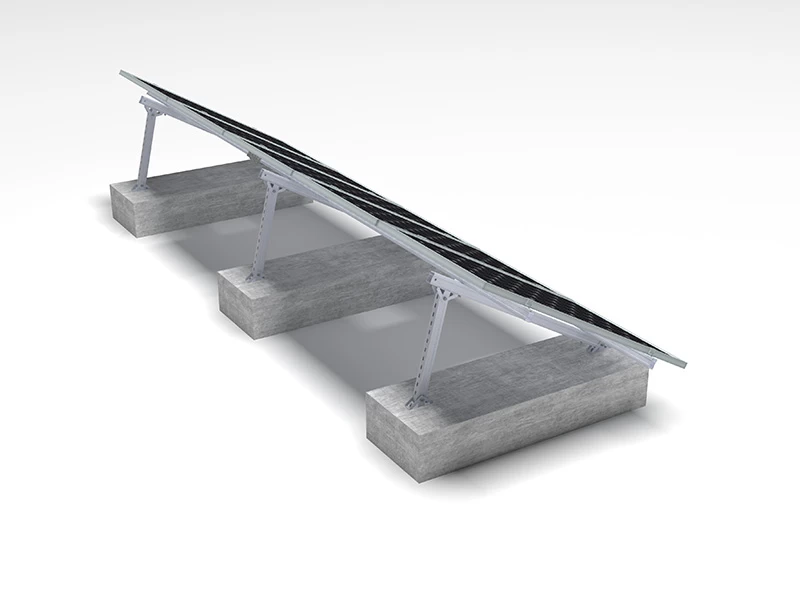

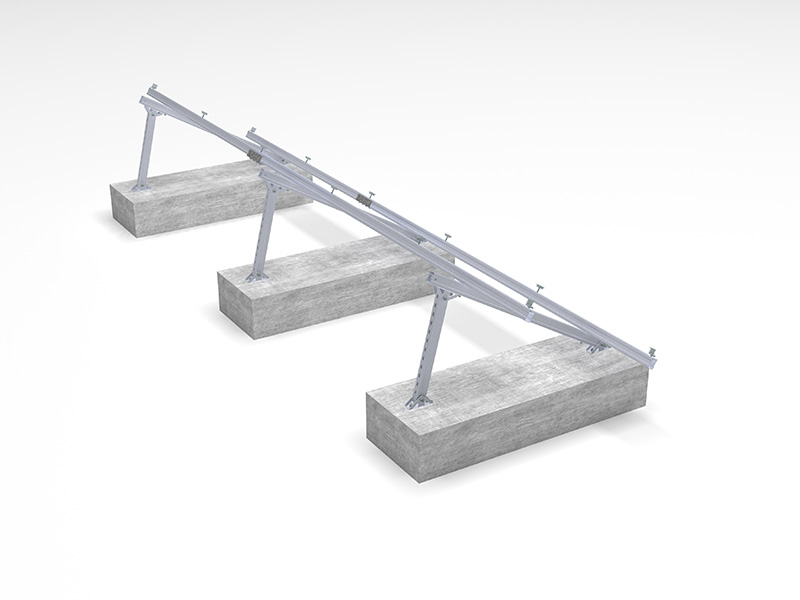

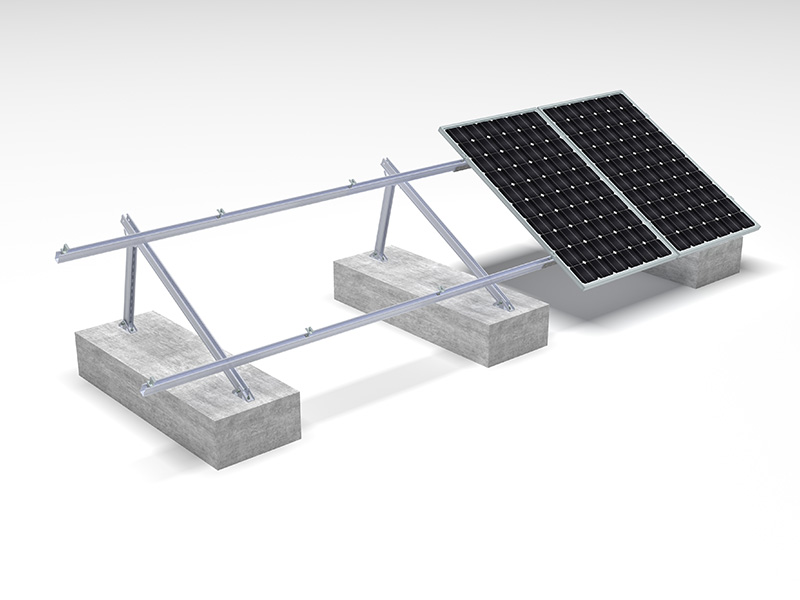

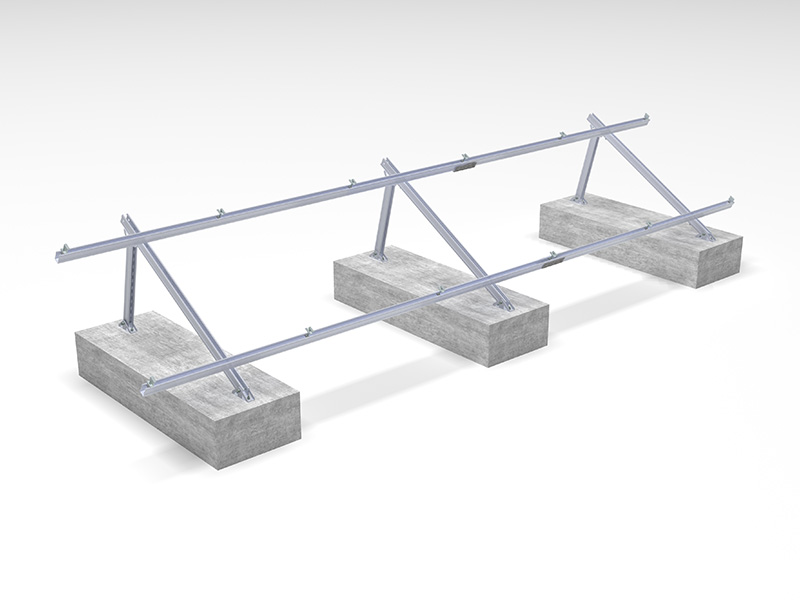

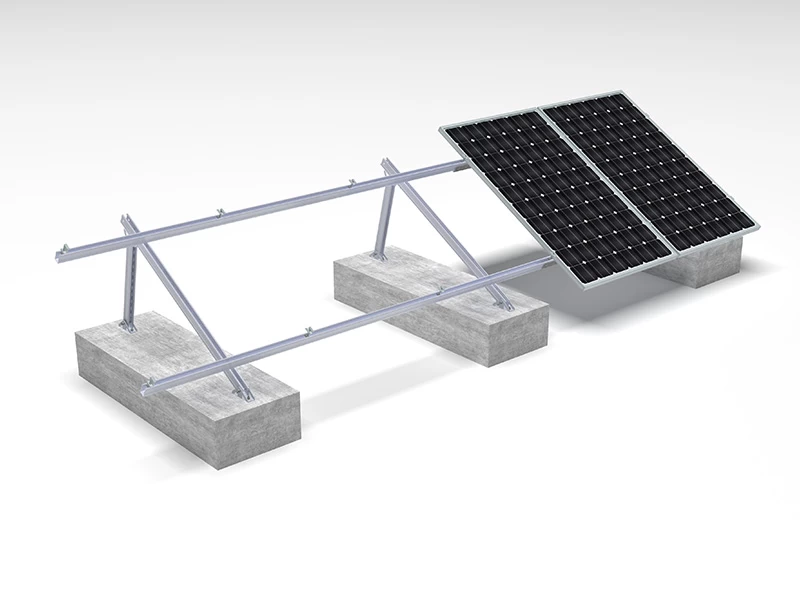

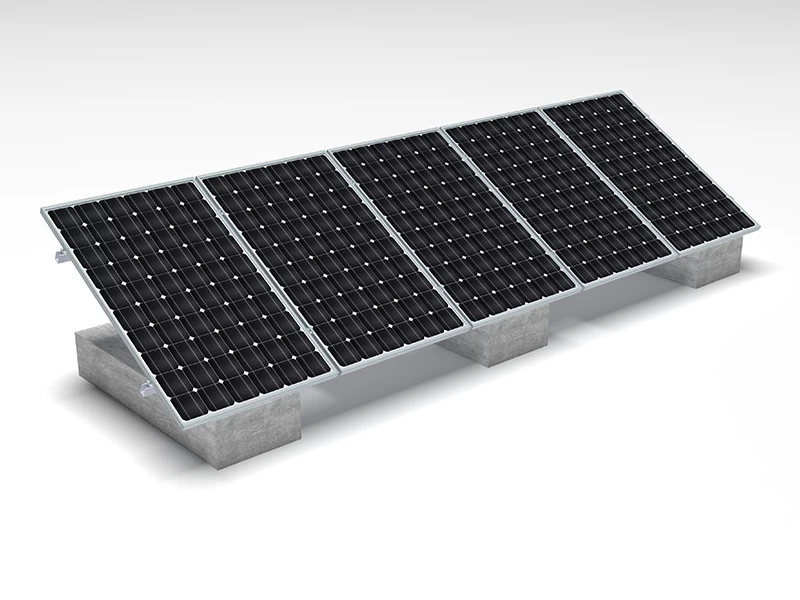

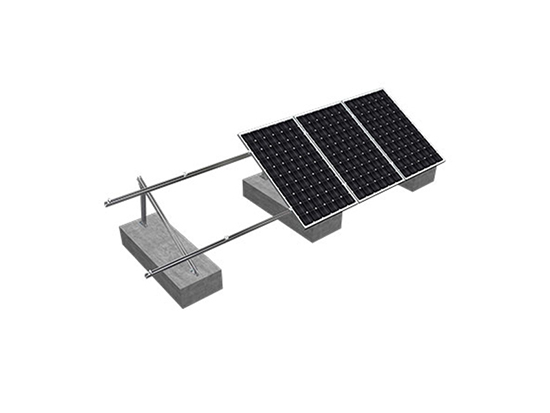

MRac Roof Solar PV Mounting System Matrix III is applied to various kinds of flat roof projects. Main components are made of hot-dip galvanized steel, with good performance of structure strength, stability and anti-corrosion, compatible with varied solar modules. Patented structure design guarantee quick installation to save construction cost.
|
Technical Parameter
|
|
System Name
|
MRac RMIII
|
|
Installation Site
|
Flat Roof, Open Land
|
Roof Type
|
Concrete Base
|
|
Tilt Angle
|
0-60°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/㎡
|
|
Applicable Solar Module
|
Framed or Frameless
|
|
Panel Layout
|
Portrait or Landscape
|
|
Design Standard
|
AS/NZS 1170 , DIN 1055 , JIS C 8955：2017,
|
|
International Building Code IBC 2009,
|
|
California Building Code CBC 2010
|
|
Material
|
Q235B(Hot-dip galvanized)
|
|
Fastener
|
Zinc-Nickel Alloy Electroplated Steel & Q235B
|
|
Small Components
|
Al6005-T5(Anodized)
|
|
Color
|
Silver or Customized
|
|
Warranty
|
10-Year Warranty
|
Features
System Compatibility
Components mostly pre-assembled in factory to assure quick and reliable installation on site. Suitable for different flat rooftop, and compatible to different types of solar modules.
Cost Efficiency
Hot-dip galvanized steel assures the structure strength and lower cost for large-scale installation
Technology Certification
