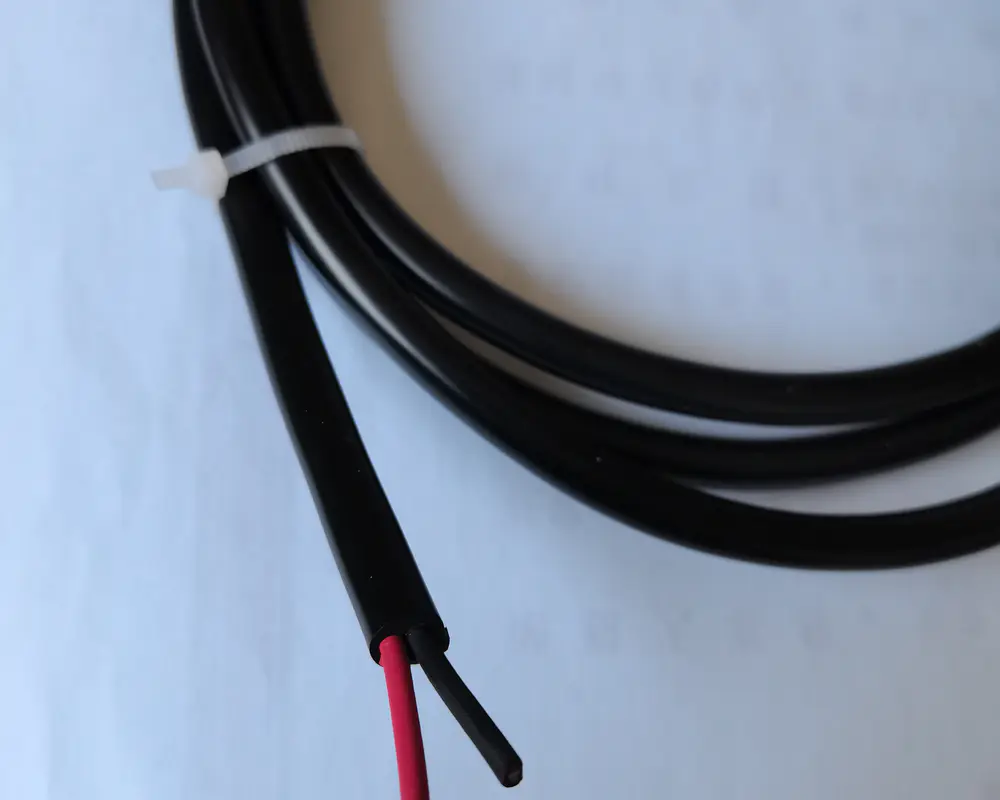

CITCABLE is a high performance fluid blocking or anti-capillary wire built to handle the high temperature fluid environments in engines and transmissions. It is an irradiation cross-linked fluoropolymer with impressive properties. CIT is extremely fluid resistant even at temperatures up to 150°C 200°C 250°C. It is an excellent, cost effective replacement for TFE, FEP ,Tefzel,TPI.PEI or PEEK insulated wire.
Characteristics
- Broad temperature range--40---200°C ( other material temperature--196--260°C)
- Short circuit overload up to +300 °C
- High current carrying capacity
- Electron beam crosslinked
- Compatible with all common insulating varnishes and impregnation resins
- High resistance to thermal pressure, chemicals, hydrolysis and weathering
- Flame retardant(UL VW-1,FT4,FT6)
- Soldering resistant and easy to strip
- Flexible Minimum outer diameter
Application
CIT cables and wires are used wherever optimum safety and reliability is called for under tough operating conditions:
• Resistant Oil Motor Lead wire
• Coil winding
• Sensor connectors
• Electromagnets
• Transformers
• Heat sensors
• Pumps
• Solenoids
• Coils
• Relays
• Electrical systems and many more..
