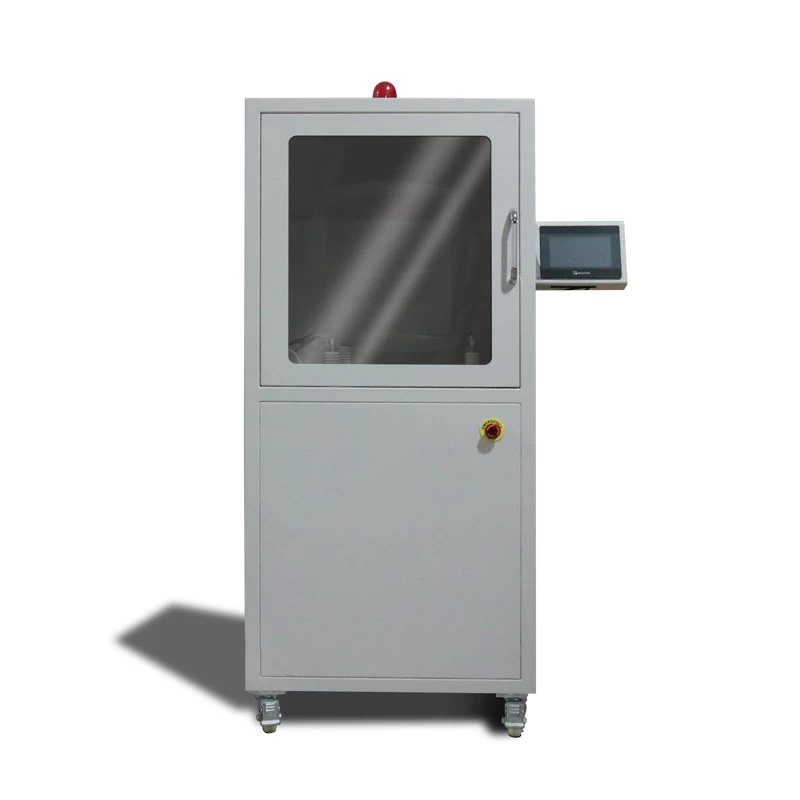

Footwear Electric Shock Resistant Tester GT-KB42
Product Introduction
|
Application:
This Footwear Electric Shock Resistant Tester is
designed to determine dielectric of various insulation shoes. The
current leakage and voltage withstand are measured by applying a voltage
at a given frequency to the specimen.
Standards:
ANS-Z41 section 4, CSA-Z195 section 5.4 , AS/NZS 2210.2 section 5.11,
GB12011, GB/T20991 section 5.11,
ASTM F2412 section 9, ASTM F2413 section 5.5.
|

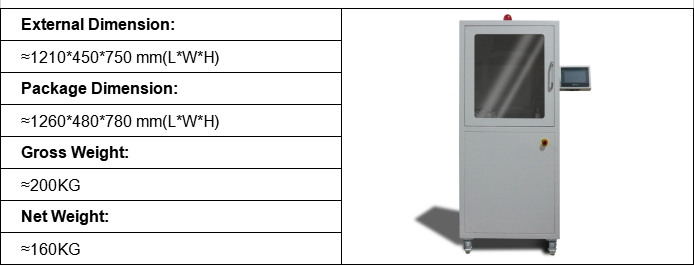

Dimensions
Feature
The
current leakage and voltage withstand are measured by applying a voltage
at a given frequency to the specimen.
Key Specifications
Model
|
GT-KB42A
|
GT-KB42B
|
Voltage increasing rate
|
Increasing 1kv/sec,when reaching 75% of set voltage,
the speed will switch to 100 v/sec
|
Output voltage range
|
AC: 0~20KV
|
AC: 0~30KV
|
Leakage current range
|
AC: 20mA
|
Transformer capacity
|
500VA
|
600VA
|
Test time
|
0.0s～99s
|
Test space(L*D*H)
|
58 x 38 x 54cm
|
Power supply
|
1∮AC 220V 50/60HZ
|
Dimensions (W×D×H）
|
121cm x 48cm x 75cm
|
Weight(Approx)
|
160kg
|
Standards Accessories
|
￠3.5mm stainless steel ball 1pack
|
35KV insulated gloves 1set
|
35KV Insulated pad 1㎡
|
Power line 1pc
|
